Fast Change Thermal Shock Chamber 220℃ Thermal Cycling Chamber

Fast Change Thermal Shock Chamber 220℃ Thermal Cycling Chamber

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE RoHS ISO17025
Model Number: TS-340

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden cases standard export package
Delivery Time: 10 days ( check if have stock)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 360 sets / quarter
Get Best Price Contact Now

Detail Information

Name: Thermal Cycling Chamber Pre-high Temp.: +220℃
Volume: 160L, 210L, 500L, 1000L And More Cooling Mode: Air-cool Type
Temperature Range: -70C To 150C Power Supply: 380v, 50Hz
High Light:

Fast Change Thermal Cycling Chamber

,

220C Thermal Cycling Chamber

,

220C Thermal Shock Chamber

Product Description

Fast Change 220℃ Thermal Cycling Chamber



Description


Thermal cycling chamber is designed for testing the capability of heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, suitable for quality control of the industries of electron, electrical equipment, vehicle, metal, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, etc.





Products Parameters



Name

Fast Change 220℃ Thermal Cycling Chamber

Model

TS-340

Inner dimensions of test room (mm)

450*450*360

Volume of test room (mm)

72L

Load of test room

30kg

Overall dimensions(mm)

1710*1020*1845

Pre-heat room



Upper limit preheat temperature

+220℃



Heating time

Ambient temperature to ~ + 200℃, within in 30 minutes.



Pre-cool room

Lower limit pre-cool temperature

-75℃



Cooling time

Ambient temperature to ~ -70℃, within in 30 minutes

Test room

High temperature exposure range

Ambient temperature +20 to +200°C



Low temperature exposure range

–65 to -5°C

Recovery time

Within 15 minutes

Temperature fluctuation

≤±0.5℃

Temperature deviation

≤±3 ℃

Controller

Programmable color LCD touch screen controller

Cooling system

Mechanical compression refrigeration system

Refrigerating unit

French TECUMSEH compressor

Refrigerant

R404A, R23

Air circulation

Centrifugal wind fan

Exterior material

Steel Plate with protective coating

Interior material

SUS304 stainless steel

Power Supply

380V 50HZ

Environmental conditional

5℃~+40 ℃ ≤85% R



Design and Construction

Fast Change Thermal Shock Chamber 220℃ Thermal Cycling Chamber 0

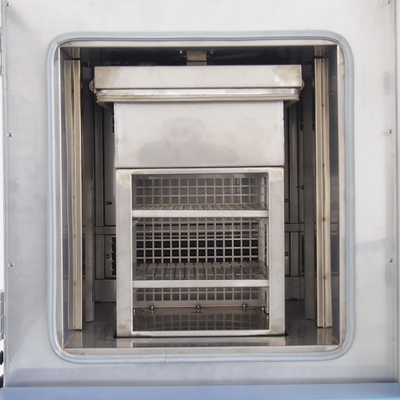

Safety Basket and Test Area

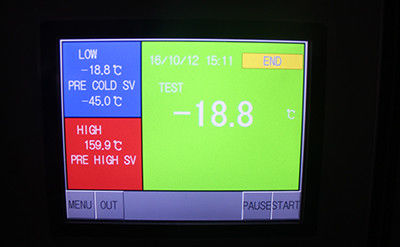

Programmable Controller

Fast Change Thermal Shock Chamber 220℃ Thermal Cycling Chamber 1

Thermal Chamber Equip Programmable Controller



Thermal cycling chamber,Rectangular glass viewing window, with lighting to keep bright inside the chamber; using double-layer glass makes a clear observation for test items at any time; windows with anti-sweat heater device to prevent water from vapor condensation and water droplets, and high-brightness PL fluorescent lamp keeps the lighting inside the chamber.



Accessories


Thermal Cycling Chamber

Inner door with operation hole (optional)

50mm or100mm Entrance hole for test wire, Dia. 50mm or 100mm

Sample Shelves, two layers or more

Thermal test chamber equip R232 or R485 communication Interface
