+220℃ Degree Thermal Shock Tester High Temperature
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE RoHS ISO17025 |
| Model Number: | TS-340 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 10 days ( check if have stock) |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 360 sets / quarter |
|
Detail Information |
|||
| Name: | Thermal Shock Tester | Pre-high Temp.: | +220℃ |
|---|---|---|---|
| Volume: | 160L, 210L, 500L, 1000L And More | Cooling Mode: | Air-cool Type |
| Temperature Range: | -70C To 150C | Power Supply: | 380v, 50Hz |
| High Light: | 220 Degree Thermal Shock Tester,220C Thermal Shock Tester,220C thermal shock test equipment |
||
Product Description

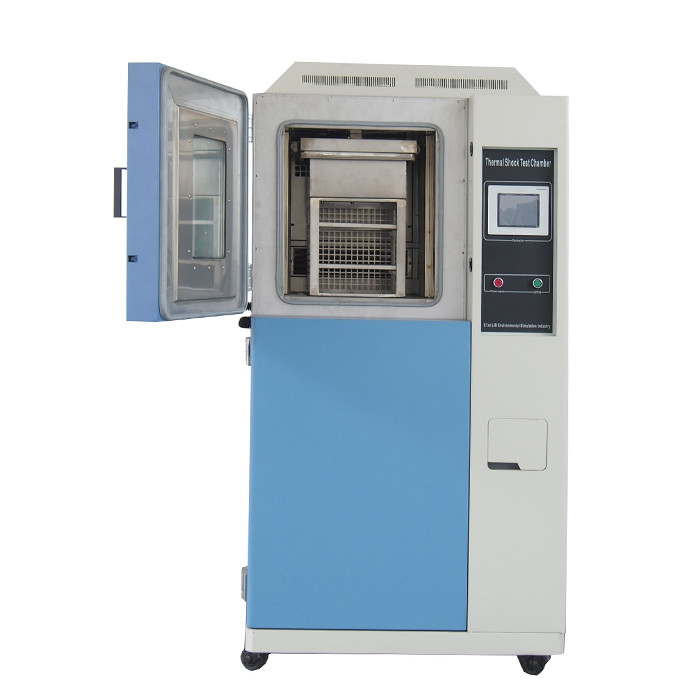

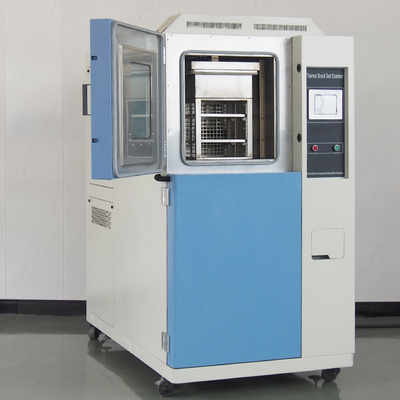

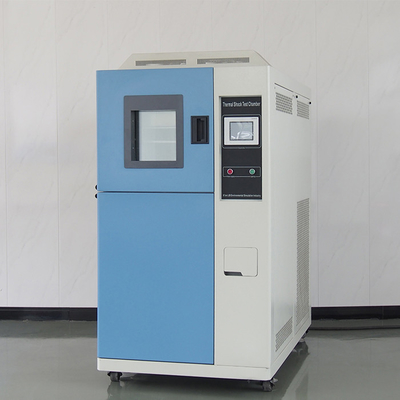

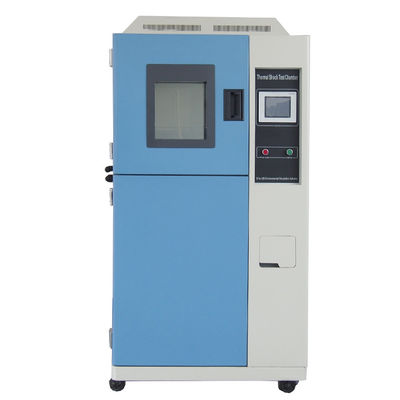

+220℃ Degree High Temperature Thermal Shock Tester
Description
+220℃ Degree High Temperature Thermal Shock Tester is a necessary test equipment of material such as metal, plastic, rubber, electronics and so on, used for testing material structure or composite material. It can figure out the tolerance degree in the instantaneous continuous environment of extremely high temperature and extremely low temperature to know the chemical change or physical injury because of contraction principle at least time.
Products Parameters
|
Name |
+220℃ Degree High Temperature Thermal Shock Tester |
||||
|
Model |
TS-340 |
||||
|
Inner dimensions of test room (mm) |
450*450*360 |
||||
|
Volume of test room (mm) |
72L |
||||
|
Load of test room |
30kg |
||||
|
Overall dimensions(mm) |
1710*1020*1845 |
||||
|
Pre-heat room
|
Upper limit preheat temperature |
+220℃ |
|||
|
|
Heating time |
Ambient temperature to ~ + 200℃, within in 30 minutes. |
|||
|
Pre-cool room |
Lower limit pre-cool temperature |
-75℃ |
|||
|
|
Cooling time |
Ambient temperature to ~ -70℃, within in 30 minutes |
|||
|
Test room |
High temperature exposure range |
Ambient temperature +20 to +200°C |
|||
|
|
Low temperature exposure range |
–65 to -5°C |
|||
|
Recovery time |
Within 15 minutes |
||||
|
Temperature fluctuation |
≤±0.5℃ |
||||
|
Temperature deviation |
≤±3 ℃ |
||||
|
Controller |
Programmable color LCD touch screen controller |
||||
|
Cooling system |
Mechanical compression refrigeration system |
||||
|
Refrigerating unit |
French TECUMSEH compressor |
||||
|
Refrigerant |
R404A, R23 |
||||
|
Air circulation |
Centrifugal wind fan |
||||
|
Exterior material |
Steel Plate with protective coating |
||||
|
Interior material |
SUS304 stainless steel |
||||
|
Power Supply |
380V 50HZ |
||||
|
Environmental conditional |
5℃～+40 ℃ ≤85% R |
||||
Design and Construction
|
|
|
|
Test Area ◆Test area is made of stainless-steel. ◆Elevator type ◆Basket displacement time less than 15 seconds ◆Temperature resetting time less than 15 minutes ◆2 pieces of adjustable and removable shelves Test hole, sealed with silicone screw plug |
Cable Hole |
Features
1, Programmable LCD touch screen temperature controller,support multiple languages
2, Divided in high temperature zone,low temperature zone,and a basket
3, Water or air cooling
4, High & low temperature transfer time:within 15 seconds,temperature recovery time:3-5minutes
5, Using powerful air-to-air temperature cycle tester
6, Has hot and cold zones that can be controlled independently
7, Direct-drive lift system for reliability & safety
8, Touch-screen controller for easy operation
Security Protection Devices
High and low pressure protective switch of the compressor ,refrigerator high-pressure protective switch, failure warning system, electronic alarm
One-stop Service
1.Provide free solution, quotation,technical parameters
2.Commissioning and inspection services before leaving the factory
3.3 year warranty, free lifetime maintenance, calibration, etc
4.Provide a variety of transportation methods, support door-to-door service
5.Engineers available to service machines overseas to install and commissioning
6.Solve all problems for customers
