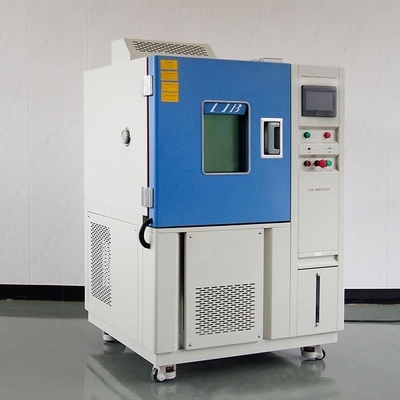

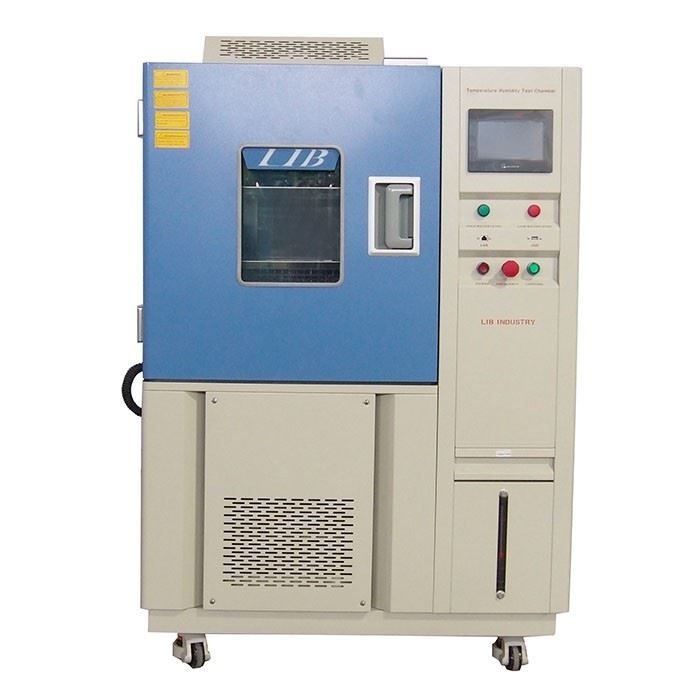

Stability Low Temperature High Humidity Chamber 20%~98%
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB INDUSTRY |
| Certification: | CE，ROHS |
| Model Number: | TH-250 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden Cases Standard Export Package |
| Delivery Time: | 3-14 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram，PayPal |
| Supply Ability: | 120 Sets/Quarterly |
|
Detail Information |
|||
| Name: | High Humidity Chamber | Humidity Range: | 20%~98% |
|---|---|---|---|
| Low Type: | -20°C / -40℃ / -70℃ | Temperature Range: | -20°C~+150°C |
| Heating Rate: | 3 ℃ / Min | Power Supply: | 220V 50Hz （ 380V 50Hz） |
| High Light: | Low Temperature High Humidity Chamber,Stability High Humidity Chamber,98% High Humidity Chamber |
||
Product Description
Description
Low Temperature High Humidity Chamber. LIB INDSTRY temperature and humidity test chambers are available in a variety of sizes and configurations, including benchtop / vertical/ walk in constant temperature humidity chambers. Temperature Range: -70°C to +180°C; Humidity range:10% to 98%R.H.
Advantage
▶One machine, multiple functions
▶temperature and humidity test
▶storage condition
▶calibration function
▶safety protection
Specific Parameters
| Product Name |
Stability Low Temperature High Humidity Chamber |
|||||||||
| Model | TH-100 | TH-225 | TH-500 | TH-800 | 1000L | |||||
| Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 | |||||
| Interior Volume | 100L | 225L | 500L | 800L | 1000L | |||||
| Temperature Range |
A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ |
|||||||||
| Temperature Fluctuation | ± 0.5 ℃ | |||||||||
| Temperature Deviation | ± 2.0 ℃ | |||||||||
| Humidity Range |
20% ~ 98% RH |
|||||||||
| Humidity Deviation | ± 2.5% RH | |||||||||
| Cooling Rate | 1 ℃ / min | |||||||||
| Heating Rate | 3 ℃ / min | |||||||||
| Exterior Material | Steel Plate with protective coating | |||||||||
| Interior Material | SUS304 stainless steel | |||||||||
| Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | |||||||||
| Environmental Conditional | 5℃～+35 ℃ ≤85% RH | |||||||||
Details
 |
|
|

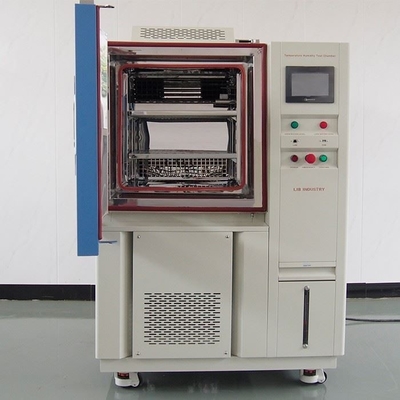

Test Area
|

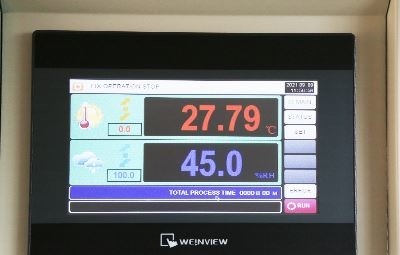

Programmable Controller |
Key Features
◆Low Temperature High Humidity Chamber
◆Temperature control and display unit
◆Humidity control and display unit
◆French TECUMSEH compressor cooling unit
◆Environment friendly refrigerant R404A & R23
◆Humidification system with external isolation, stainless steel surface evaporation humidifier
◆Heating element is Nichrome heater
◆Circulation with low noise centrifugal wind fan
◆Temperature sensor PT-100 , Resolution: ± 0.001 ℃
◆Humidity sensor dry and wet bulb sensor, Resolution: ± 1%
◆Build- in water reservoir
◆Programmable color LCD touch screen controller
◆Viewing window with interior lighting.
