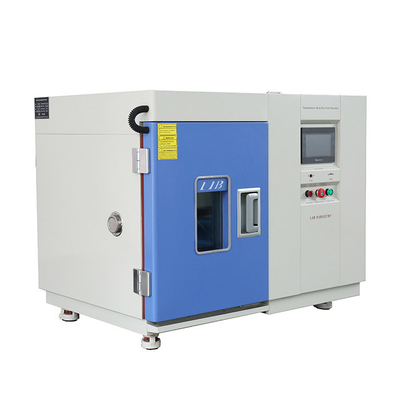

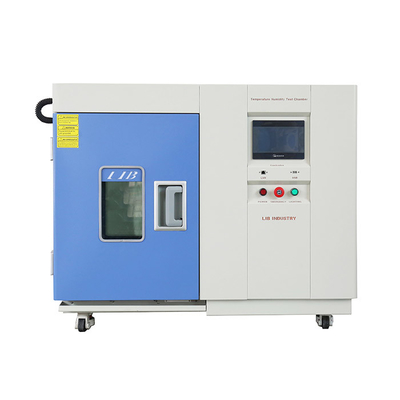

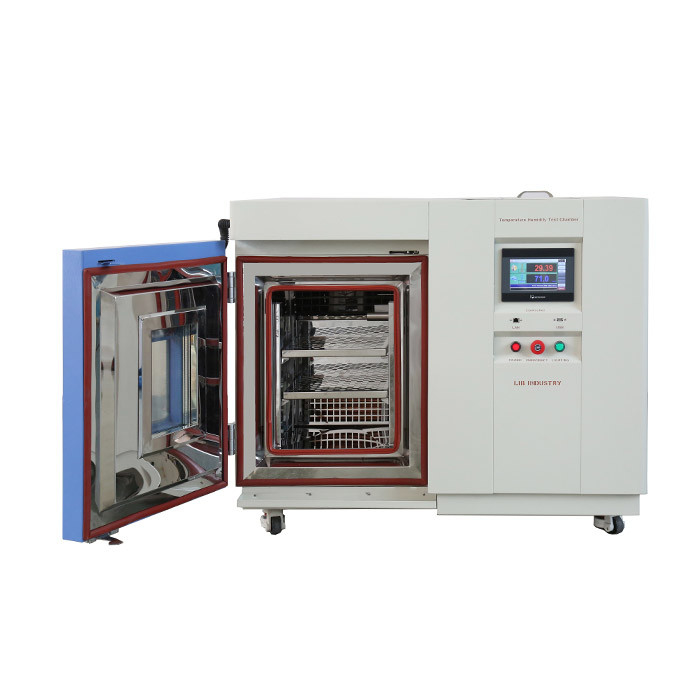

1 ℃ / Min 50L Small Relative Humidity Chamber LCD Touch Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | RoHS,CE |
| Model Number: | TH-50 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 3-14 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 180 sets / quarter |
|
Detail Information |
|||
| Name: | Small Relative Humidity Chamber | Low Type: | -20℃/-40℃/70℃ |
|---|---|---|---|
| Temperature Range: | -20℃ ～+150 ℃ | Warranty: | 36 Monthes |
| Humidity Range: | 20%~98% | Controller: | Programmable LCD Touch Screen |
| High Light: | 50L Relative Humidity Chamber,Relative Humidity Chamber supplier,50L humidity control chamber |
||
Product Description
Description
The 1 ℃ / min 50L Small Relative Humidity Chamber can test the aging and service life of the product in the temperature environment and the temperature environment in a short period of time, helping enterprises detect product defects in a short period of time.
The small test chamber meets iec60068 and other test standards, with small size and complete functions. Third-party inspection can be carried out before leaving the factory.
Parameters
| Name | 1 ℃ / min 50L Small Relative Humidity Chamber |
| Model | TH-50 |
| Internal dimension (mm) | 320*350*450 |
| Overall dimension (mm) | 800*1050*950 |
| Temperature range | -20℃ ～+150 ℃ |
| Low type | Ⅰ: -40℃ Ⅱ:-70℃ |
| Humidity range | 20% ~ 98% RH |
| Temperature fluctuations | ± 0.5 ℃ |
| Temperature deviation | ± 2.0 ℃ |
| Humidity deviation | ± 2.5% RH |
| Heating rate | 3 ℃ / min |
| Cooling rate | 1 ℃ / min |
| Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class |
| Temperature Resolution | ± 0.001 ℃ |
| Humidity sensor | Dry and wet bulb sensor |
| Power Supply | AC220V 50HZ |
| Environmental conditional | 5℃～+40 ℃ ≤85% RH |
Details
 |
|
|
| controller | Lan and USB | air circulation air circulation |
Standard Configuration
1.Build-in Water Tank to meet test water requirements(relative humidity chamber)
2. Uniform temperature and humidity ensure stable test results
3. Small humidity chamber,The door has a good sealing effect.
4. The power supply will be automatically cut off after the heat alarm
5. Compact design and silent operation
|
|
