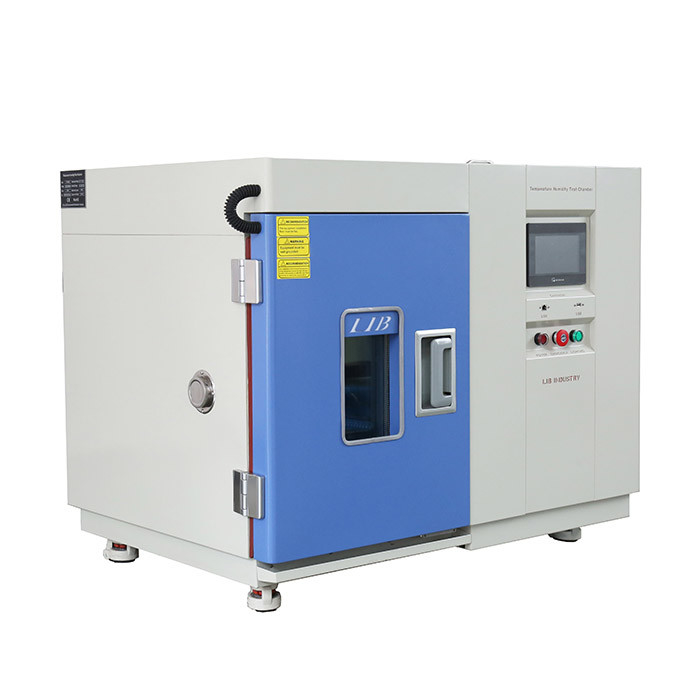

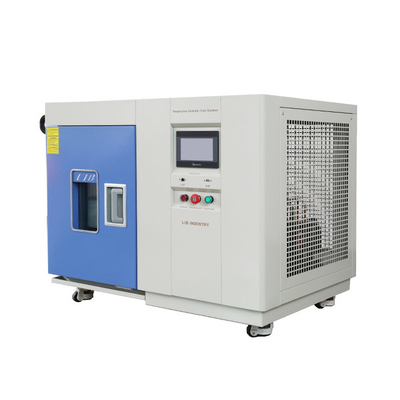

1 ℃ / Min 98% RH Benchtop Environmental Chamber Climate Test Chambers
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | RoHS,CE |
| Model Number: | TH-50 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 3-14 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 180 sets / quarter |
|
Detail Information |
|||
| Name: | Environmental Test Climate Chambers | Low Type: | -20℃/-40℃/70℃ |
|---|---|---|---|
| Temperature Range: | -20℃ ～+150 ℃ | Warranty: | 36 Monthes |
| Humidity Range: | 20%~98% | Controller: | Programmable LCD Touch Screen |
| High Light: | 98% RH Benchtop Environmental Chamber,Climate Benchtop Environmental Chamber,98% RH Climate Test Chambers |
||
Product Description
Description
The test climate chambers is a device that simulates the high temperature, low temperature, humidity and other environmental conditions in the natural environment,
The climate test chamber detects the fading, cracking, aging, and corrosion properties of products, and helps manufacturers to conduct quality screening.
Parameters
| Name | 1 ℃ / min 98% RH Environmental Test Climate Chambers |
| Model | TH-50 |
| Internal dimension (mm) | 320*350*450 |
| Overall dimension (mm) | 800*1050*950 |
| Temperature range | -20℃ ～+150 ℃ |
| Low type | Ⅰ: -40℃ Ⅱ:-70℃ |
| Humidity range | 20% ~ 98% RH |
| Temperature fluctuations | ± 0.5 ℃ |
| Temperature deviation | ± 2.0 ℃ |
| Humidity deviation | ± 2.5% RH |
| Heating rate | 3 ℃ / min |
| Cooling rate | 1 ℃ / min |
| Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class |
| Temperature Resolution | ± 0.001 ℃ |
| Humidity sensor | Dry and wet bulb sensor |
| Power Supply | AC220V 50HZ |
| Environmental conditional | 5℃～+40 ℃ ≤85% RH |
Details
 |
|
|
| controller | Test Area | Inspection Window |
●The Effect of High Temperature on the Product
High temperature machine
▶Discoloration, cracking or cracking of organic materials;
▶The material in the sealed shell (shell, bomb, etc.) generates high pressure due to thermal expansion;
●The effect of humidity on the product
humidity test machine
▶Accelerates the oxidation and galvanic corrosion of metal surfaces;
▶Accelerate the electrochemical reaction of the surface organic coating and destroy the protective effect of the surface coating;
|
|
