50L Temperature Benchtop Stability Chamber -85C -150C
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | RoHS,CE |
| Model Number: | TH-50 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 3-14 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 180 sets / quarter |
|
Detail Information |
|||
| Name: | Benchtop Stability Chamber | Low Type: | -20℃/-40℃/70℃ |
|---|---|---|---|
| Temperature Range: | -20℃ ～+150 ℃ | Warranty: | 36 Monthes |
| Humidity Range: | 20%~98% | Controller: | Programmable LCD Touch Screen |
| High Light: | 50L Benchtop Stability Chamber,Temperature Benchtop Stability Chamber,50L benchtop humidity chamber |
||
Product Description

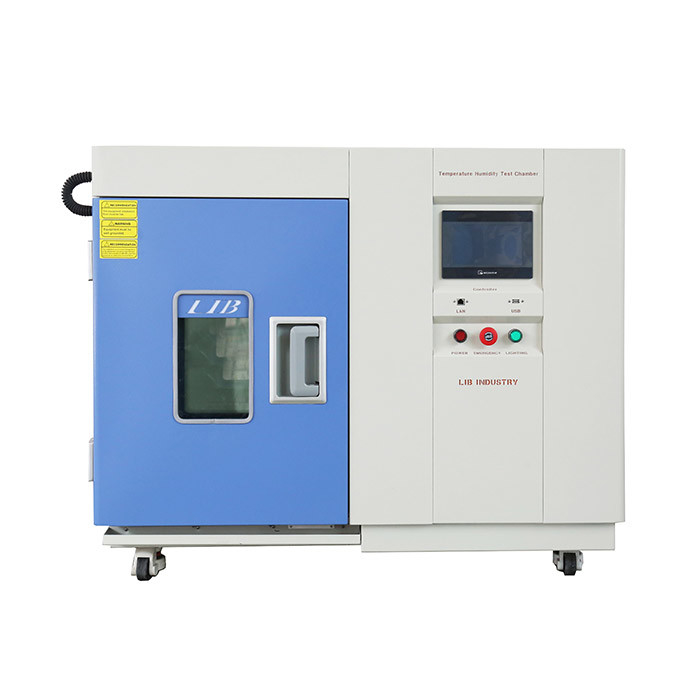

50L Temperature Benchtop Stability Chamber
Description
50L Temperature Benchtop Stability Chamber has 2 models of 50L and 80L, temperature range -85℃-150℃, can meet the test needs of small samples, can perform calibration function, storage function, suitable for office or school scientific research units, affordable.
Parameters
| Name | 50L Temperature Benchtop Stability Chamber |
| Model | TH-50 |
| Internal dimension (mm) | 320*350*450 |
| Overall dimension (mm) | 800*1050*950 |
| Temperature range | -20℃ ～+150 ℃ |
| Low type | Ⅰ: -40℃ Ⅱ:-70℃ |
| Humidity range | 20% ~ 98% RH |
| Temperature fluctuations | ± 0.5 ℃ |
| Temperature deviation | ± 2.0 ℃ |
| Humidity deviation | ± 2.5% RH |
| Heating rate | 3 ℃ / min |
| Cooling rate | 1 ℃ / min |
| Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class |
| Temperature Resolution | ± 0.001 ℃ |
| Humidity sensor | Dry and wet bulb sensor |
| Power Supply | AC220V 50HZ |
| Environmental conditional | 5℃～+40 ℃ ≤85% RH |
Details
 |
|
|
| controller | Test Area | Inspection Window |
Standard Configuration
●Stability test chamber,With window design, easy to observe the sample
●Small footprint, light weight, easy to move and fix
●Easy to operate: standard color touch screen control, with program setting function
●High mobility, low noise, wide range of temperature and humidity, energy saving and environmental protection
●Stability environmental chamber,The controller has the function of constant operation setting for reliability test and programming setting function for temperature and humidity combination alternation for temperature characteristic test
●Stability climate chamber,Large recording volume: real-time recording of large sampling data, and now the PC print curve
●Safety protection: over-temperature protection, sample protection, equipment protection, operator safety protection
|
|
