Customization Environmental Walk In Humidity Chamber Touch Screen Controller
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE,ROHS |
| Model Number: | Walk-Ins |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden Cases Standard Export Package |
| Delivery Time: | 5-16 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 10 Sets/quarter |
|
Detail Information |
|||
| Name: | -20℃ 95% RH | Temperature Range: | -70℃ ~ +150℃ |
|---|---|---|---|
| Humidity Range: | 10% ~ 95% RH | Power Supply: | 400V 50HZ |
| Size: | Custom-made | ||
| High Light: | Environmental Walk In Humidity Chamber,Customization Walk In Humidity Chamber,Environmental walk in climatic chamber |
||
Product Description

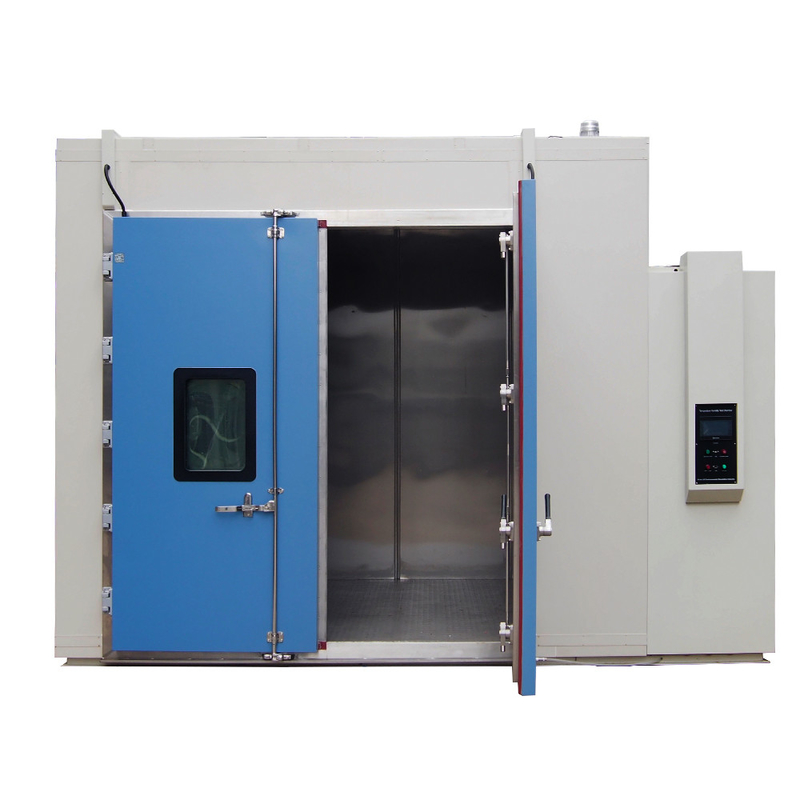

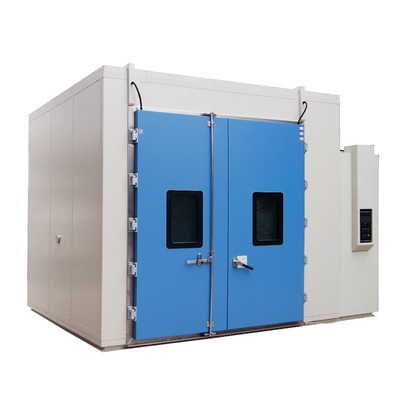

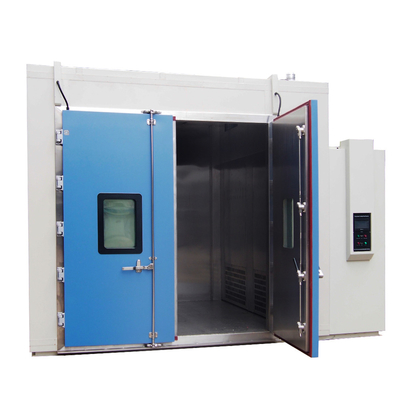

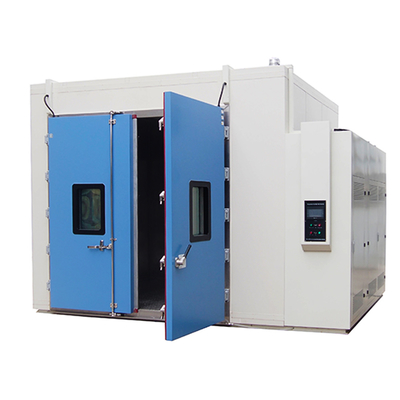

Customization Environmental Walk In Humidity Chamber
Description
Customization Environmental Walk In Humidity Chamber is a test equipment for testing the performance of samples by means of technical means, simulating the conditions that are more commonly encountered in the natural environment and combining them with several times the harsh conditions of the natural environment.
Walk In temperature chamber is suitable for heat and cold resistance test with large quantity of products and large volume. Heat and cold resistance test.
Technical Specification
|
Name |
Customization Environmental Walk In Humidity Chamber |
|
Model |
Walk-Ins |
|
Internal dimension (mm) |
Custom Made |
|
Overall dimension (mm) |
Custom Made |
|
Temperature range |
-70℃ ~ +150℃ |
|
Humidity range |
10% ~ 95% RH |
|
Temperature fluctuations |
± 2.0℃ |
|
Humidity fluctuations |
± 5.0% RH |
|
Heating rate |
1℃ / min |
|
Cooling rate |
1 ℃ / min |
|
Controller |
Programmable color LCD touch screen controller PC Link, Ethernet port |
|
Cooling system |
Mechanical compression refrigeration system |
|
Thermal insulation |
Polyurethane foam |
|
Noise |
Less than 85 dBA |
|
Power Supply |
400V 50HZ |
|
Environmental conditional |
5℃～+40 ℃ ≤85% RH |
Details of the Advantage
 |
|
|
Test Area
|
Programmable Controller |
Advantage
●The walk in chamber needs to be customized according to customer requirements
●Can be connected to other laboratory equipment
●Provide one-stop solution
●There are split and integrated walk in environmental chamber
|
|
