Metal Halide Arc Lamp Weathering Test Chamber
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE,RoHS,ISO17025 |
| Model Number: | MXL-1000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 18 days ( check if have stock) |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, ，paypal |
| Supply Ability: | 140 sets / quarter |
|
Detail Information |
|||
| Name: | Metal Halide Arc Lamp Weathering Test Chamber | Temperature Range: | -40℃～100℃±2℃ |
|---|---|---|---|
| BPT Temperature: | 35℃～85℃±2℃ | Humidity Range: | 50%~98% RH |
| Certificate: | CE,RoHS,ISO17025 | Irradiance: | 400-1200w/m2 At 300-3000nm |
| Highlight: | Arc Lamp Weathering Test Chamber,Halide Weathering Test Chamber,Halide xenon arc test chamber |
||
Product Description

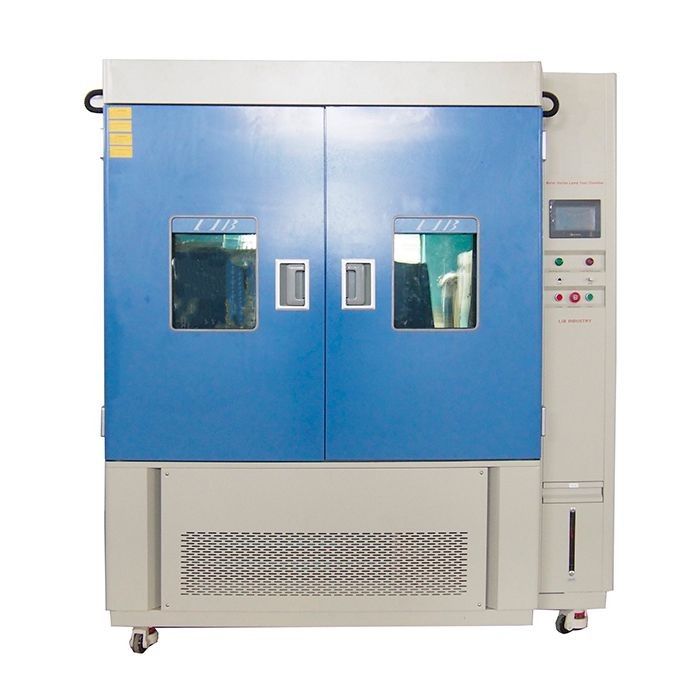

Metal halide Arc Lamp Weathering Test Chamber
Metal halide light sources are categorized as high intensity discharge lamps, and utilize a ceramic or quartz arc tube to vaporize mercury and metal halides (bromine, iodine, etc.). The resulting bright white light that is produced has a high color rendering index, and the light energy may be projected at a significant distance from the source when combined with a reflector. The chemistry of the lamp may be adjusted, and the lamp may be used with filter combinations, so that the spectral power distribution (light energy) provides a match to natural sunlight or other sources of light.
included testing photovoltaics, vehicle components, and materials like coatings and polymers.
| Name | Metal halide Arc Lamp Weathering Test Chamber | |
| Model | MXL-1000 | |
| Internal Dimension (mm) | 1400*1400*1000mm | |
| Internal Dimension (mm) | 1750*1870*1950mm | |
| Specimen Holder Size(mm) | 1400*1400 | |
| Specimen Capacity | 2PCS | |
| Chamber Type | Flat Holder | |
| Irradiation Source |
1 piece of Metal halide lamp With AM 1.5 filter 1piece of 4500w water-cooled xenon arc lamp with inner quartz and outer borosilicate filter |
|
| Irradiance Range | 400-1200w/m2 | 100-1200w/m2 at 290nm-800nm |
| Bandwidth Measurement | 300nm~3000nm | 290nm-800nm ;300nm~400nm ;340nm ;420nm |
| Chamber Temperature Range | -40℃ ～ 100 ℃ ±2℃ | |
| Black Panel Temperature | BPT 35 ～ 85 ℃ ±2℃ | |
| Humidity Range | 50% ~ 98% RH | |
| Radiometer |
290-800nm full spectrum Radiometer; 340nm Radiometer; 420nm Radiometer; 300-400nm Radiometer;Tolerance: ±5% |
|
| Exterior Material | Steel plate with protective coating | |
| Interior Material | SUS304 stainless steel | |
 |
|
| Controller
●PID programmable color touch screen controller, network connection computer. ●Can edit 100 programs 20 segment. |
Irradiation Source
●1pcs Full spectrum Metal halide lamp with AM 1.5 filters ●1 pc of water-cooled xenon lamp with inner quartz and outer borosilicate filter |
|
|
|

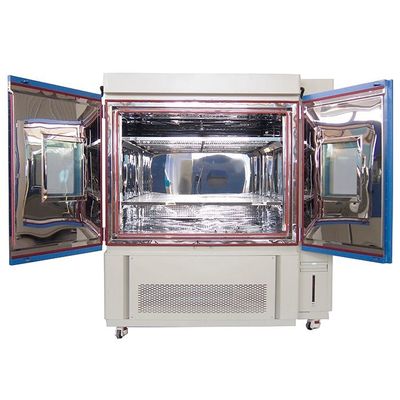

Workroom ●The internal material is 304 stainless steel. ●Mirror surface, rust-proof to high and low temperature and moisture corrosion resistance. ●Nice ruggedness and long life. |
Cable Hole ●A standard test hole, located at the left side of the work room, is provided with a sleeve inside to prevent ●moisture from entering the insulation layer. Equipped with flange. |
▶Feature
●Temperature Range
-40℃～100℃±2℃
●Humidity Range
50%~98% RH
●Irradiance
400-1200w/m2 at 300-3000nm (Metal halide lamp)
100-1200w/m2 at 290nm-800nm (Xenon arc lamp)
●BPT
35℃～85℃±2℃
▶Warranty & After Sales Service
●3 Years Warranty.
●Lifelong Follow-up Services.
●We have a professional after-sales team, if you have any questions during operation, we will supply solutions to you with 24 hour
