Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE,RoHS,ISO17025
Model Number: XL-S-750

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden cases standard export package
Delivery Time: 14 days ( check if have stock)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 120 sets / quarter
Get Best Price Contact Now

Detail Information

Name: Xenon Aging Test Chamber Lamp: Carbon Arc Lamp
Temperature Range: Ambient ~100℃±2°C BPT Temperature: BPT +35 To +120 ℃
Bandwidth Measurement: 300~400nm Standard: ASTM D 3815
High Light:

ASTM D 3815 Xenon Aging Test Chamber

,

R-232 Xenon Aging Test Chamber

,

ASTM D 3815 xenon arc chamber

Product Description

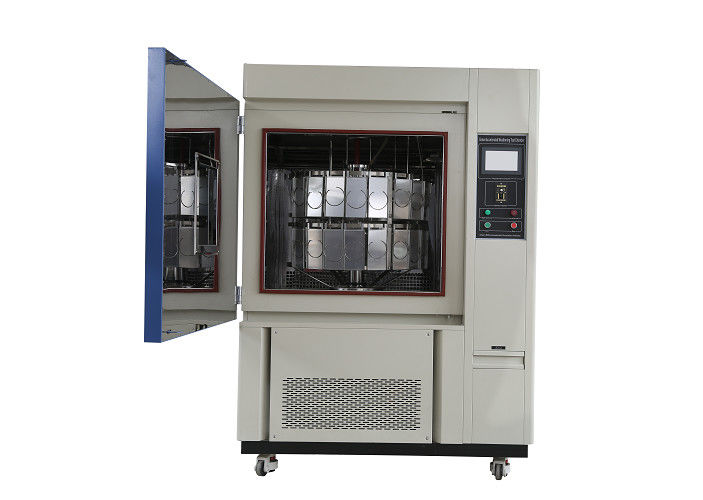

Environmental Xenon Aging Test Chamber ASTM D 3815 R-232 Interface



Description


Xenon Aging Test Chamber is a comprehensive climate testing machine, in addition to climatic aging test, the light fastness of materials can be carried out to test, polymer materials exposed at simulated sunlight. It simulates the light,temperature, rainfall, condensing, humidity to test the materials.



Specification

Name

Environmental Xenon Aging Test Chamber ASTM D 3815 R-232 Interface

Model

XL-S-750

Internal dimensions D*W*H

950*950*850 mm

Overall dimensions D*W*H

1300*1420*1800 mm

Chamber Type

Rotating Holder

Irradiation Source

1 piece of 4500w water-cooled xenon arc lamp with inner quartz and outer borosilicate filter

Irradiance Range

150W/㎡

Bandwidth Measurement

300~400nm

Chamber Temperature Range

Ambient ~100℃±2°C

Black Panel Temperature

BPT 35 ~85℃±2°C

Relative Humidity Range

50~98% R.H±5% RH

Water Spray cycle

1~9999H59M, adjustable

Controller

programmable color display touch screen controller, PC Link, R-232 interface

Radiometer

Tolerance: ±5%

Heating system

Nichrome heater

Cooling system

Mechanical compression refrigeration system

Refrigerating unit

French TECUMSEH compressor

Humidification system

External isolation, stainless steel surface evaporation humidifier

Air circulation

Centrifugal wind fan

Water supply system

Automatic water supply; Water purification system

Safety device

Humidifier dry-combustion protection; over-temperature protection;

over-current protection; Refrigerant high-pressure protection; Water shortage protection,

Earth leakage protection;

Interior material

SUS304 stainless steel

Exterior material

Steel Plate with protective coating

Thermal insulation

Polyurethane foam

Observation window

Interior lighting , double-layer thermo stability silicone rubber sealing

Power Supply

AC380V 50HZ



Details Design

             Environmental Xenon Aging Test Chamber ASTM D 3815 R-232 Interface 0                 Environmental Xenon Aging Test Chamber ASTM D 3815 R-232 Interface 1
Workroom Programmable controller
            Environmental Xenon Aging Test Chamber ASTM D 3815 R-232 Interface 2                 Environmental Xenon Aging Test Chamber ASTM D 3815 R-232 Interface 3
Carbon Arc Lamp Radiometer





Available Methods


sunshine carbon arc weatherometer



Carbon Arc - Sunshine Carbon Arc Lamp

Sunshine carbon arc lamp type weathering test machine and light resistance tester.



Carbon Arc Testing

operating open flame carbon arc apparatus for exposurl of nonmetallc materials(carbon arc weatherometer)



Application


The sunshine carbon arc weatherometer can provide corresponding environmental simulation and accelerated tests for scientific research, product development and quality control, and can be used for tests such as the selection of new materials, the improvement of existing materials, or the evaluation of changes in durability after changes in material composition;

                            Environmental Xenon Aging Test Chamber ASTM D 3815 R-232 Interface 4
