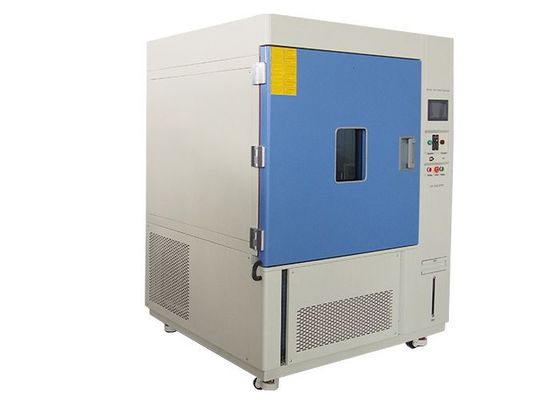

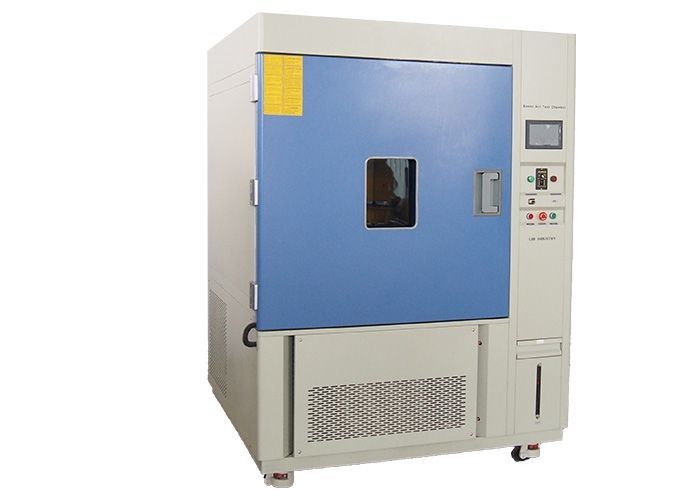

AC380V 200mm 280nm Xenon Solar Radiation Test Chamber

AC380V 200mm 280nm Xenon Solar Radiation Test Chamber

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE,RoHS,ISO17025
Model Number: XL-750

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden cases standard export package
Delivery Time: 18 days ( check if have stock)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 140 sets / quarter
Get Best Price Contact Now

Detail Information

Name: Solar Simulator Test Instruments Temperature Range: Ambient ~100℃±2°C
BPT Temperature: BPT +35 To +120 ℃ Bandwidth Measurement: 280nm~800nm
Certificate: CE,RoHS,ISO17025 Specimen Capacity: 42pcs* 95*200mm
High Light:

Xenon Solar Radiation Test Chamber

,

280nm Solar Radiation Test Chamber

,

Xenon Lamp Test Chamber

Product Description

AC380V 200mm 280nm Xenon Solar Radiation Test Chamber

Sun light Weathering Resistance Xenon Lamp Solar Simulator Test Instruments

Description of Xenon Lamp Solar Simulator Test Instruments

Sun light Weathering Resistance Xenon Lamp Solar Simulator Test Instruments uses a xenon arc lamp as a light source. It used for the study of weathering and accelerated aging testing by closely emulating true environmental conditions.



Xenon Test Chamber controlled product degradation study (weathering), using varying light spectrum, temperature and moisture. Used to evaluate the weather resistance of the test material or samples.

Products Parameters of Xenon Lamp Solar Simulator Test Instruments



Name

Sun light Weathering Resistance Xenon Lamp Solar Simulator Test Instruments

Model

XL-750

Internal dimensions D*W*H

950*950*850 mm

Overall dimensions D*W*H

1300*1420*1800 mm

Specimen Capacity

42pcs

Specimen holder size

95*200mm

Irradiation Source

1 piece of 6500 W water-cooled xenon lamp with inner quartz and outer borosilicate filter

Irradiance Range

100~1200 W/㎡

Bandwidth Measurement

280nm~800nm

Chamber Temperature Range

Ambient ~100℃±2°C

Black Panel Temperature

BPT 35 ~85℃±2°C

Relative Humidity Range

50~98% R.H±5% RH

Water Spray cycle

1~9999H59M, adjustable

Controller

programmable color display touch screen controller, PC Link, R-232 interface

Radiometer

Tolerance: ±5%

Heating system

Nichrome heater

Cooling system

Mechanical compression refrigeration system

Refrigerating unit

French TECUMSEH compressor

Humidification system

External isolation, stainless steel surface evaporation humidifier

Air circulation

Centrifugal wind fan

Water supply system

Automatic water supply; Water purification system

Interior material

SUS304 stainless steel

Exterior material

Steel Plate with protective coating

Thermal insulation

Polyurethane foam

Observation window

Interior lighting , double-layer thermo stability silicone rubber sealing

Power Supply

AC380V 50HZ



Key Features of Xenon Lamp Solar Simulator Test Instruments

-1 pieces of 4500W water-cooled Xenon Lamp with inner quartz and outer borosilicate filter

-Programmable color display touch screen controller to control and display test parameters

-Measurement and control of Irradiance at 300 to 400nm, 340nm and 420nm

-Measurement and control of Black Panel Temperature( BPT)

-Measurement and control of Black Standard Temperature( BST)

-Measurement and control of Chamber Temperature

-Measurement and control of Chamber humidity

-Control panel located on right side of test chamber

-Safety protection system

Design and Construction of Xenon Lamp Solar Simulator Test Instruments

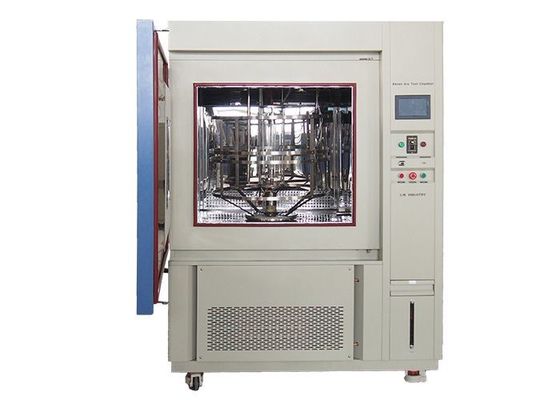

AC380V 200mm 280nm Xenon Solar Radiation Test Chamber 0

Viewing Window
Double layer insulating glass 8cm thickness, made of tempered glass.
The conductive film is located on the interior glass to prevent window frosting, built-in LED light for the work room lighting ;can clearly observe samples.
The light control button is located below the controller.

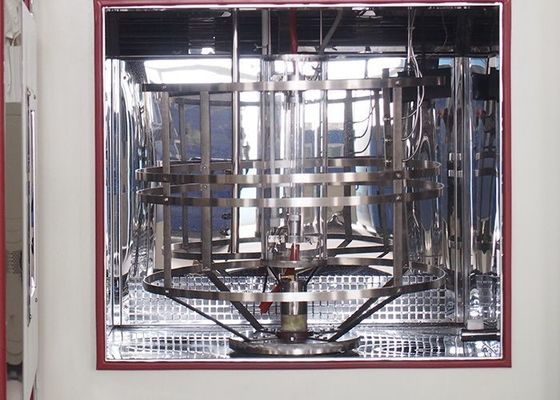

Rotating Specimen Holder
Inside there is a rotating specimen holder, which rotates around the xenon lamp,so that the irradiance received by the specimen is relatively uniform during the test. Total can mount 42 pieces of specimen.



AC380V 200mm 280nm Xenon Solar Radiation Test Chamber 1

Black Panel Thermometer
The blackboard thermometer is composed of a stainless steel flat plate with a length of 150 mm, a width of 70 mm, and a thickness of 1 mm. The side of the board facing the light source should be coated with a black flat lacquer to absorb at least 90% of the total incidence

Water Re-circulation
Water purifier: mainly purification from water source to water tank.
Water re-circulation system that reduced water use and a series of water pipes









Advantage



LIB Xenon Test Chamber is easy to install, easy to use and easy to maintain. Specimen mounting and evaluations are simplified with specially designed specimen holders. LIB xenon test chamberis completely automated and can operate continuously, 24 hours per day, 7 days per week.



Other features include:

◆Remarkably simple user interface in five user-selectable languages: English, French, German,Russian, Romanian

◆Built-in Ethernet connection for data logging with provided software

◆Comprehensive self-diagnostic warnings and service reminders

◆Quick and easy user-performed calibration



Applications

Accelerated Weathering Fadeometer is widely used:

★Additives & Colorants

★Adhesives & Sealants

★Architectural and Construction

★Automotive

★Food & Beverages

★Graphic Arts

★Packaging

★Paints & Coatings

★Photovoltaics

★Plastics

★Textiles

★Wind & Solar

★Consumer Electronics



The Global Agent



LIB has agents,distributors in South Korea, Malaysia, Thailand, Italy, Poland, Brazil, Canada and other countries, which is convenient for customers to purchase equipment and can provide customers with after-sales service in a timely manner.



AC380V 200mm 280nm Xenon Solar Radiation Test Chamber 2
