ASTM G155 Aging Test Xenon Weather Ometer Rotating Structure

ASTM G155 Aging Test Xenon Weather Ometer Rotating Structure

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE,ROHS
Model Number: XL-S-750

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden Cases Standard Export Package
Delivery Time: 5-14 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 410Sets
Get Best Price Contact Now

Detail Information

Name: Xenon Weather Ometer Irradiance Range: 35~150 W/㎡
Bandwidth Measurement: 300nm~400nm (340nm Or 420nm) Chamber Temperature Range: Ambient ~ 100 ℃ ±2℃
Black Panel Temperature: BPT 35 ~ 85 ℃ ±2℃ Chamber Type: Rotating Holder
High Light:

Aging Test Xenon Weather Ometer


ASTM G155 Xenon Weather Ometer


ASTM G155 xenon arc weatherometer

Product Description

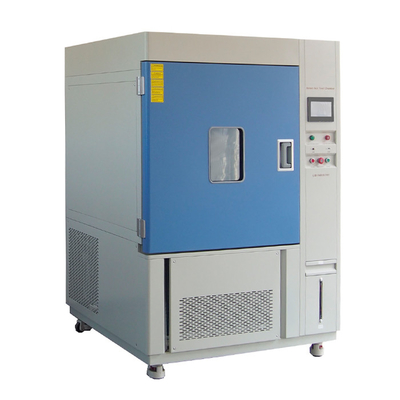

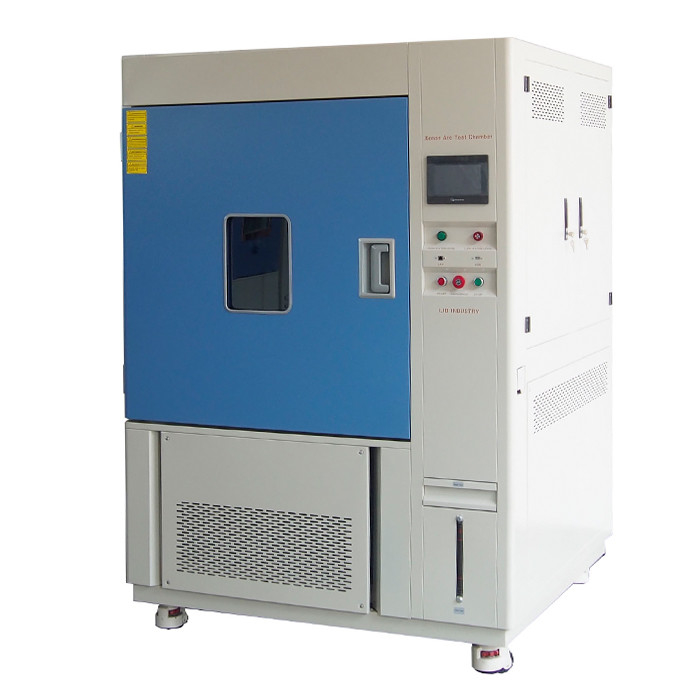

ASTM G155 Aging Test Xenon Weather Ometer



The Xenon Weather Ometer adopts a rotating structure, which can simulate the xenon arc lamp of the full sunlight spectrum to reproduce the destructive light waves existing in different environments.


It is a xenon test equipment in the fields of aviation, automobile, home appliances, scientific research, etc. It can also provide corresponding environmental simulation and accelerated aging test for scientific research, product development and quality control.


Main Parameter

Name Sunshine Xenon Arc Weather Ometer for Sale Xenon Chamber


Internal Dimension (mm)


Overall Dimension (mm)


Specimen Holder Size(mm)


Specimen Capacity


Chamber Type

Rotating Holder

Irradiation Source

1 piece of 4500w water-cooled xenon arc lamp with inner quartz and outer borosilicate filter

Irradiance Range

35~150 W/㎡

Bandwidth Measurement

300nm~400nm (340nm or 420nm)

Black Panel Temperature

BPT 35 ~ 85 ℃ ±2℃

Water Spray Cycle

1~9999H59M (Adjustable)


Programmable color LCD touch screen controller

Water supply system

Automatic water supply  Water purification system


UV Radiometer, Tolerance: ±5%

Thermal Insulation

Polyurethane foam and insulation cotton

Observation Window

Interior lighting, double-layer thermo stability silicone rubber sealing

Power Supply

AC380V 50Hz

Maximum Noise

65 dBA

Standard ASTM G155



ASTM G155 Aging Test Xenon Weather Ometer Rotating Structure 0 ASTM G155 Aging Test Xenon Weather Ometer Rotating Structure 1 ASTM G155 Aging Test Xenon Weather Ometer Rotating Structure 2

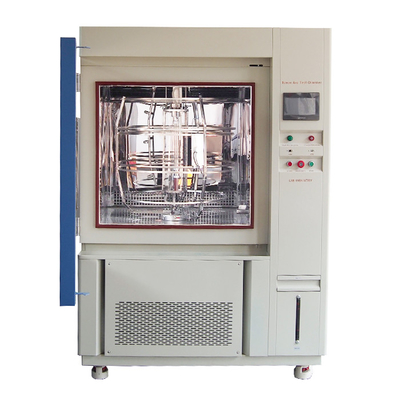

Specimen holder Controller BPT



1. Optical filter system: borosilicate and calcium-sodium glass materials, according to the test requirements, adjust the corresponding type and number of filters; combined with the characteristics of infrared, ultraviolet, and window glass, special optical filter glass is used for Simulate indoor and outdoor solar radiation environments. A variety of combinations can be manually replaced, and the replacement is simple and convenient.


2. Observation window: 1 (300mm×700mm), multi-layer insulating glass, filter paper on the outside of the radiation-proof glass window to protect the operator's eyes, and multi-layer insulation to prevent condensation on the observation window.


3. Xenon weather tester,The spray cycle is completely controlled by the program and can be carried out with or without light.


4. Weather Ometer,Water circulation system, automatic water inlet,
