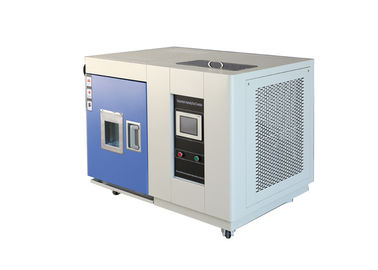

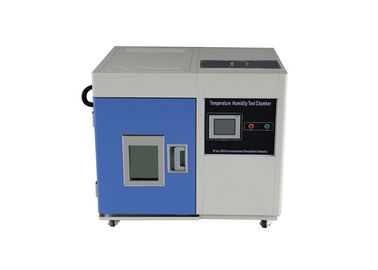

Artificial Small Temperature Chamber / Thermal Cycle Benchtop Humidity Chamber TH-80

Artificial Small Temperature Chamber / Thermal Cycle Benchtop Humidity Chamber TH-80

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE RoHS ISO17025 CSA
Model Number: TH-80

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: USD 2100 ~ USD 8000 / SET
Packaging Details: Wooden cases standard export package
Delivery Time: 3-18days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Get Best Price Contact Now

Detail Information

Internal Dimension (mm): 400*400*500 Temperature Range: -20℃ ~+150 ℃
Humidity Range: 20% ~ 98% RH Low Type: Ⅰ: -40℃ Ⅱ:-70℃
Cooling Rate: 1 ℃ / Min Heating Rate: 3 ℃ / Min
High Light:

small environmental chamber

,

portable environmental chamber

,

high quality small environmental chamber

Product Description

Artificial Low Temperature Thermal Cycle Small Climatic Simulation Chamber TH-50 TH-80 LIB

Description



Temperature Thermal Cycle Small Climatic Simulation Chamber included temperature only chamber, temeprature humidity chamber, fast change rate temperature test chambers, thermal cycle chambers, benchtop ovens.In research and development laboratories, the functionality and usability of a product are determined at a very early stage.Temperature Humidity Environmental Simulation Chamber PLC Temperature Humidity Stability Test Chamber For Cold Damp Heat Dry Heat Testing.



Application



Temperature Thermal Cycle Small Climatic Simulation Chamber is widely used in the temperature variation test, cold resistance test and storage with low-temperature in the foelds of aerospace, aviation, electronics, instrument, electric products, materials, parts and components and equipment to analyze and evaluate the property and performance of the sample under thr simulated conditions.



Main Technical Parameter



Model TH-80
Internal dimension (mm) 400*400*500

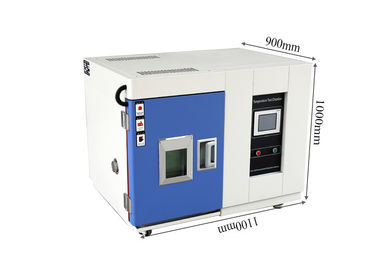

Overall dimension (mm) 900×1100×1000
Temperature range -20℃ ~+150 ℃
Low type Ⅰ: -40℃ Ⅱ:-70℃
Humidity range 20% ~ 98% RH
Temperature fluctuations ± 0.5 ℃
Temperature deviation ± 2.0 ℃
Humidity deviation ± 2.5% RH
Heating rate 3 ℃ / min
Cooling rate 1 ℃ / min
Temperature Sensor PTR Platinum Resistance PT100Ω/MV A-class
Temperature Resolution ± 0.001 ℃
Humidity sensor Dry and wet bulb sensor
Power Supply AC220V 50HZ
Environmental conditional 5℃~+40 ℃ ≤85% RH



Standard Features
  • Temperature control and display unit
  • Humidity control and display unit
  • Programmable color LCD touch screen controller
  • Viewing window with interior lighting.
  • 2 pieces of adjustable and removable shelving
  • Bottom install 4 castors for ease moving, and with brakes function
  • Programs reach to 999 groups and 999 sections
  • Safety protection system
  • Can perform long time 85 °C/85 % RH testsArtificial Small Temperature Chamber / Thermal Cycle Benchtop Humidity Chamber TH-80 0





Design and Construction

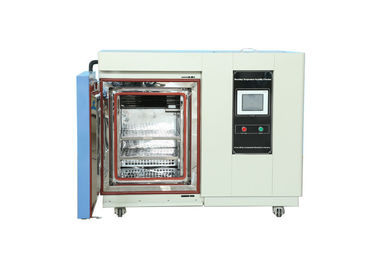

Test area

Material of the test cabinet is high quality SUS304 stainless steel.

Test hole, sealed with silicone screw plug.

Temperature sensor Pt100 platinum

Humidity sensor dry and wet bulb

2 pieces of adjustable and removable shelves



Air Circulation

Air circulation fans in the workroom of the chamber.

The real wall of test area equipped with chip-type wind board. Air flowing from top of wind board which control air direction return to air inlet to achieve air circulation.



Humidity System

External isolation, stainless steel surface evaporation humidifier

Automatic water supply



Control Panel

PLC controller

Programmable color display touch screen controller.

Programs reach to 999 groups and 999 sections

RS-232 /RS-485 interface, PC Link, LAN network



Safety Protection

Over temperature protection

Water shortage protection

Humidifier dry combustion protection

Refrigerant high pressure protection

Over current protection

Earth leakage protection





Certifications

Our main products have been certified by CE,CAS and RoHS Compliance.

Artificial Small Temperature Chamber / Thermal Cycle Benchtop Humidity Chamber TH-80 1

Packing & Shipping



Export Standard Wooden Box.

Gross Weight: 329KG, Package size(mm): 1330x1050x1260

Can be used for Sea, Air, Railway, Truck transportation,TNT,Fedex,UPS,EMS.

Our Service



  • 3 Years Warranty, Lifelong Follow-up Services.
  • Training how to install and operate the machine.
  • Training how to maintain the machine.
  • Response within 24 hours once got questions from customers.
  • Send spare parts within 2 days after got notice.
  • Engineers available to service machines overseas to install and commissioning.
