AuLarge Size Walk In Stability Test Chamber For Temperature And Humidity
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CAS,CE,RoHS,CAS |
| Model Number: | Walk - in |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | USD 11000-USD35000 /Set |
| Packaging Details: | Package with Export Standard Wooden Box |
| Delivery Time: | 3-18 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 140 set/quarter |
|
Detail Information |
|||
| Temperature Range: | -20℃ ～+150 ℃ | Model: | Walk - In Temperature Humidity Chamber |
|---|---|---|---|
| Humidity Range: | 20% ~ 98% RH | Interior Material: | SUS304 Stainless Steel |
| Low Type: | Ⅰ: -40℃ Ⅱ:-70℃ Ⅲ: -86℃ | Timing Function: | 0.1~999.9 (S、M、H) Settable |
| High Light: | walk in stability chamber,walk in humidity chamber |
||
Product Description

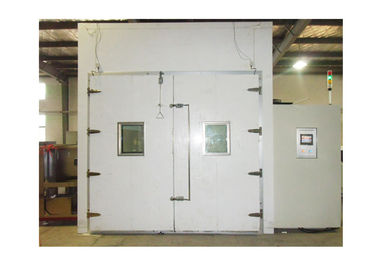

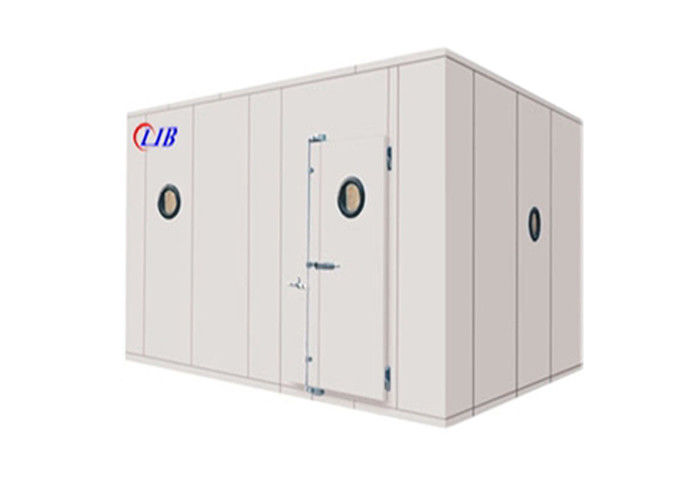

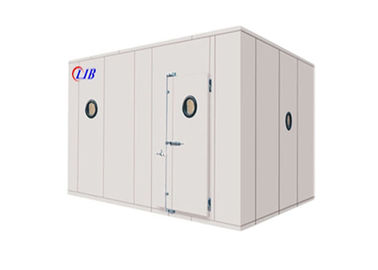

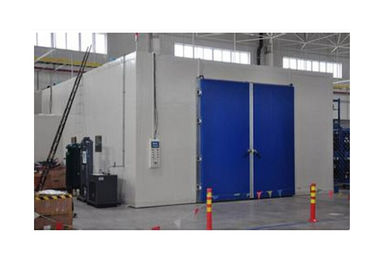

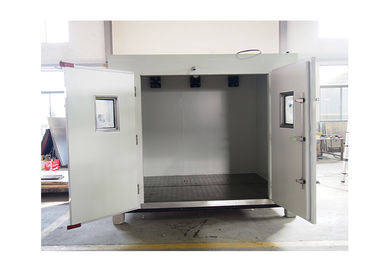

Large Size Walk - in Temperature Humidity Stability Test Chamber
Large Size Walk - in Temperature Humidity Stability Test Chamber. These walk-in chambers are in piece assembling structure, which enables on-site installation and commissioning. With large volume, the chamber can be used to simulate the single or complicated environmental factors in the atmosphere such as temperature, humidity, salt fog, illumination, dust, rain and vibration. The products can be used to analyze and evaluate the property and performance of the batch elements and parts or machine sets under simulated conditions, and can also be used in experiment and production.
Large Size Walk - in Temperature Humidity Stability Test Chamber used in the defense industry, aerospace industry, automation components, auto parts, electronic parts, plastic, chemical industry, pharmaceutical industry and related products of heat, cold test, for the industry to provide large parts, semi-finished products, finished products of the large temperature and humidity test environment space, suitable for testing the product quantity many, large volume of test equipment.
| Model | Walk - in Temperature Humidity Chamber |
| Temperature range | -20℃ ～+150 ℃ |
| Low type | Ⅰ: -40℃ Ⅱ:-70℃ Ⅲ: -86℃ |
| Humidity range | 20% ~ 98% RH |
| Temperature fluctuations | ± 0.5 ℃ |
| Temperature deviation | ± 2.0 ℃ |
| Humidity deviation | ± 2.5% RH |
| Heating rate | 3 ℃ / min |
| Cooling rate | 1 ℃ / min |
| Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class |
| Humidity sensor | Dry and wet bulb sensor |
| Heater | Nichrome heater |
| Cooling system | Mechanical compression refrigeration system |
| Refrigerating unit | French TECUMSEH compressor |
| Exterior material | Steel Plate with protective coating |
| Interior material | SUS304 href stainless steel |
| Thermal insulation | Polyurethane foam |
| Observation window | Interior lighting , double-layer thermo stability silicone rubber sealing |
| Standard configuration | 1 Cable hole (Φ 50,) with plug; 2 shelves |
| Timing Function | 0.1~999.9 (S,M,H) settable |
Temperature control and display unit
Humidity control and display unit
Can perform long time 85 °C/85 % RH tests
Safety protection system
Easy operation friendly interface
Automatic Water Supply Inlet
Interior material is high quality SUS304 stainless steel
Our main products have been certified by CE,CAS,RoHS compliance
3 Years Warranty, Lifelong Follow-up Services.
Training how to install and operate the machine.
Training how to maintain the machine.
Response within 24 hours once got questions from customers.
Send spare parts within 2 days after got notice.
Engineers available to service machines overseas to install and commissioning.
Xi’an LIB Environmental Simulation Industry is a manufacturer and exporter of climatic test chambers in China. We exported the first one test chamber since 2009, it is more than 10 years we work in environmental test chambers field.
Our main products included temperature and climate test chambers, corrosion chambers, weathering testers, IP dust and rain chambers, ozone test chamber, noxious gas SO2 H2S chamber, walk-in chambers.We provide test chamber, we provide test solution. We manufacture standard and custom climatic chambers,provide effective solutions according to different requests.
