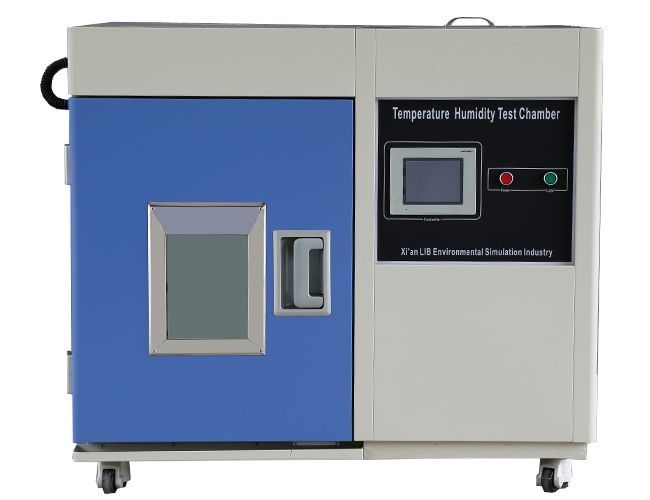

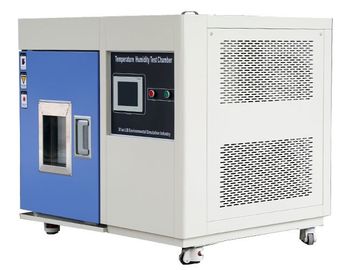

50L Benchtop Temperature Chamber With Programmable LCD Touch Screen Control
Product Details:
Place of Origin: | China |
Brand Name: | LIB |
Certification: | RoHS,CE |
Model Number: | TH-50 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Set |
---|---|
Price: | USD2680 ~ USD6800 / SET |
Packaging Details: | Wooden cases standard export package |
Delivery Time: | 3-14 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
Supply Ability: | 180 sets / quarter |
Detail Information |
|||
Low Type: | -20℃/-40℃/70℃ | Temperature Range: | -20℃ ~+150 ℃ |
---|---|---|---|
Interior Material: | SUS304 Stainless Steel(2.5mm) | Warranty: | 36monthes |
Humidity Range: | 20%~98% | Controller: | Programmable LCD Touch Screen |
Highlight: | small environmental chamber,portable environmental chamber |
Product Description
50L Benchtop Environmental Chamber For Testing Temperature And Humidity
▶50L&80L type:space saved in the laboratory.
▶Complete functioning:Meet high and low temperature testing, humidity testing, calibration, storage conditions.
▶Benchtop design: Place it on your personal desk and observe samples at any time.
▶Reasonable price: Most economical and affordable choice
50L Benchtop Environmental Chamber For Testing Temperature And Humidity,provides an economical and space-saving solution for a variety of testing requirements. The chamber's interior size is 50L,models use 220V power, This benchtop series meets the needs of even the smallest scale product testing while ensuring quality throughout the entire process.
1.Lowest temperature: -20°C /-40°C /-70°C
2.Highest temperature: 150°C
3.Humidity range: 20 to 98% RH
4.Chamber size: 50L/80L
Name | Benchtop Environmental Chamber For Testing Temperature And Humidity |
Model | TH-50 |
Internal dimension (mm) | 320*350*450 |
Overall dimension (mm) | 800*1050*950 |
Temperature range | -20℃ ~+150 ℃ |
Low type | Ⅰ: -40℃ Ⅱ:-70℃ |
Humidity range | 20% ~ 98% RH |
Temperature fluctuations | ± 0.5 ℃ |
Temperature deviation | ± 2.0 ℃ |
Humidity deviation | ± 2.5% RH |
Heating rate | 3 ℃ / min |
Cooling rate | 1 ℃ / min |
Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class |
Temperature Resolution | ± 0.001 ℃ |
Humidity sensor | Dry and wet bulb sensor |
Power Supply | AC220V 50HZ |
Environmental conditional | 5℃~+40 ℃ ≤85% RH |
>>>Click here Send inquiry now, get more details!
Controller
Programmable color touch screen type 120 programs,
99 steps perprogram
RS232 for PC link
More option function:Multi-language display, PC link,USB, App
Test Area
Material of the test cabinet is high quality SUS304 stainless steel.
Test hole (Φ 50mm, Φ125mm), sealed with silicone screw plug.
Temperature sensor Pt100 platinum
Humidity sensor dry and wet bulb
2 pieces of adjustable and removable shelves
Cable hole
Internal diameters 50mm,
125mm or custom; Rubber sealing;
Stainless steel cover;
Supply power to workroom's specimen, to better finish testing Beautiful
Large Viewing Window
Interior lighting
Window coated with conducting film to protect it from frost.
Observe the sample clearly
1.Est hole with silicone screw plug.
2.2 pieces of adjustable and removable shelving.
3.Bottom install 4 castors for ease moving, and with brakes function
4.R-232 (R-485) interface, PC Link, communication with LAN network interface
5.Programs reach to 999 groups and 999 sections
6.Safety protection system
7.Interior material is high quality SUS304 stainless steel
8.Exterior material is steel plate with protective coating, color is blue
9.Thermal insulation is Polyurethane foam
10.Can perform long time 85 °C/85 % RH tests
11.220V, 50Hz +/- 10%
3 Years Warranty, Lifelong Follow-up Services. We have a professional after-sales team, if you have any questions during operation, we will supply solutions to you with 24 hours.
Wooden cases standard export package
1. Price terms: EXW, FOB,CIF Shanghai or Shenzhen.
2. Payment terms: L/C. Western Union. Paypal. T/T,
3. Sample lead time: 3-8 days
4. Mass production time: 10-15 days depending on the order qty
5. Delivery method time: By air, by sea or combined transportation,
Door to door service with Express: Fedex, DHL, UPS, EMS
Q :How to provide after sales service?
A:If customers need our engineers on site service, the company only need pay the ticket accommodation to our engineers, service is for free.
If Products still can't use after our engineers repair, we will produce a new test chamber (same as the old one) to our customers with no charge.
You can contact our local service center in overseas market to get service and product.
Q: Do you have an agent?
A: Currently we have agents in Europe, Asia, North America, South Africa, and can provide sales and technical services.
Q: Can we come to your factory to study and train?
A: Welcome to our factory for study and training, we provide this service free of charge.
Q :How do you calibrate the equipment?
A We have our own calibration and third-party calibration such as ISO17025
Q: Is there a door to door service?
A :Yes, there is door to door service. We will arrange a one-stop service.
Q :What are the payment methods?
A :Payment methods are T/T, Paypal, L/C, VISA
Q:How long is the warranty period?
A :Warranty period is 3 years, free service for life
