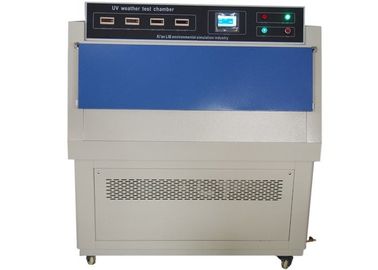

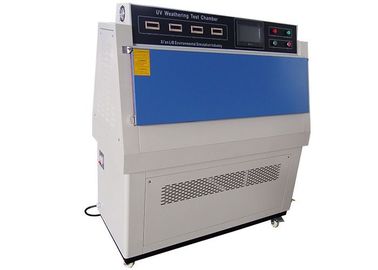

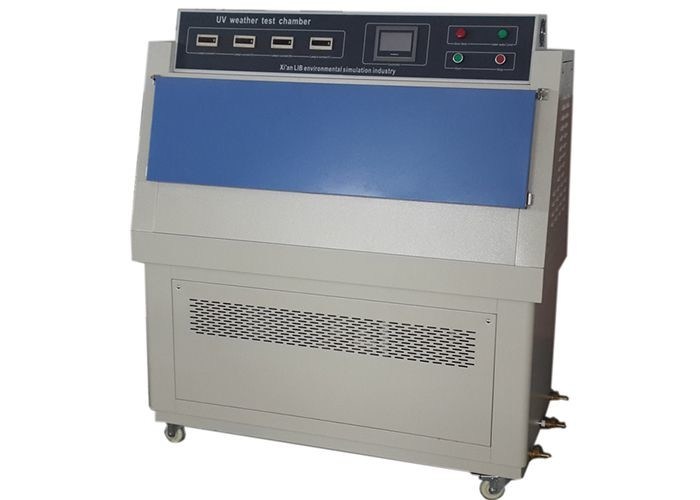

Accelerated Environmental UV Weathering Test Chamber 5000W Nominal Power

Accelerated Environmental UV Weathering Test Chamber 5000W Nominal Power

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE,RoHS,ISO17025
Model Number: UV-260

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: USD2680 ~ USD8490 / SET
Packaging Details: Wooden Box standard export package
Delivery Time: 3-12 days
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram,paypal
Supply Ability: 180 sets / quarter
Get Best Price Contact Now

Detail Information

Internal Dimensions: 450*1170*500 Temperature Range: Ambient~90℃ ±2℃
Black Panel Temperature: BPT 30~80℃ UV Wavelength: 290 ~ 400nm
Nominal Power: 5000W Humidity Range: ≥95%RH
High Light:

uv weather resistance test chamber

,

accelerated uv testing equipment

Product Description

Accelerated Environmental UV Weathering Test Chamber 5000W Nominal Power

Electronic Laboratory Aging Accelerated Environmental UV Weathering Test Chamber

Standard of UV Weathering Test Chamber

● ASTM G 151
●ASTM G 154
●ASTM D 4587
●ISO 4892-3
●ISO 11507
●SAE J 2020
●AATCC TM 186

Description of UV Weathering Test Chamber

Electronic Laboratory Aging Accelerated Environmental UV Weathering Test Chamber that have unique spectral characteristics. Fluorescent UV-B lamps & UV-A  lamps, with a peak around 313 nm, have nearly all of their energy concentrated between 280 nm and 360 nm. A large percentage is at wavelengths shorter than what is present in natural sunlight. There is very little radiation with wavelengths longer than 360 nm. Reversals in the stability ranking of materials have often been reported between laboratory accelerated and outdoor tests when the accelerated test uses UV-B lamps.

Specifications of UV Weathering Test Chamber



Name

Electronic Laboratory Aging Accelerated Environmental UV Weathering Test Chamber

Model

UV-260

Internal dimensions (mm)

450*1170*500

Overall dimensions (mm)

680*1300*1500

Capacity of test specimens

48 pieces

Individual specimen size is 75mm * 150mm

Controller

Programmable color display touch screen controller

Temperature range

Ambient~90℃ ±2℃

Humidity range

≥95%R.H ±2%R.H

Black Panel Temperature

BPT 30~80℃

Irradiation Source

Fluorescent UV lamps (8) - 40 W

UV wavelength

290 ~ 400nm

Irradiance Control

N/A

Water Spray

Spraying water

Distance of Specimen and lamp

50mm

Nominal power

5000W

Power Supply

380V 50HZ





Standard Features of UV Weathering Test Chamber


Fluorescent UV lamps (8) - UV lamp
●Door safety and over-temperature shutoff
●CE compliance and RoHs certified
●Specimen Holders
●Mulit-language Touch screen display
●Irradiance calibration safety access ports
●Ergonomically designed specimen retaining rings

Design and Construction of UV Weathering Test Chamber



Test Area

Standard samples can be placed, or 3D racks can be customized to meet different test needs.



Test holder
1.Flat Specimen Holders, aluminum panels with rings.
Each specimen size is 75mm * 150mm, can hold 48 pieces of specimens
2.Special Specimen Holder
Customize special holder according to different specimens.



QUV lamp
1.UV chamber adopt QUV lamp made in USA.
2. UVA-340,UVB-313,UVB-351 3. UV lamp power is 40W. 4. Chamber install 8 pcs of QUV lamp.
1. The lamp is more stable 2. Spectral power distribution (SPD) does not change with lamp aging, even when used for up to 5000 hours 3. Get more repeatable test results 4. Reducing lamp replacement 5. Reducing operating costs 6. Easy to change, easy to purchase from local.



Control Panel
Programmable color display touch screen controller
Measure and display temperature, humidity, water spraying,
black panel temperature and irradiance (UV-SI-260).
Show status and working time of 8 UV lamps



Accelerated Environmental UV Weathering Test Chamber 5000W Nominal Power 0

Packaging and Delivery



Packed with export standard wooden case.
Strong packages can be used for sea, air, railway, truck transport and multimodal transport.
Quick ship, some models are in stock, ship in 1-14days.
Provide door to door service for customers.



FAQ



Q :How to provide after sales service?
A:If customers need our engineers on site service, the company only need pay the ticket accommodation to our engineers, service is for free.
If Products still can't use after our engineers repair, we will produce a new test chamber (same as the old one) to our customers with no charge.
You can contact our local service center in overseas market to get service and product.



Q :Can we come to your factory to study and train?
A:Welcome to our factory for study and training, we provide this service free of charge.



Q :Can you send engineers to our company?
A:Yes, sure. We will communicate in advance to facilitate the bringing of tools and components



Q :Can I install and debug calibration on site?
A :Yes, we can send technicians and engineers to the customer site for installation, commissioning and calibration.



Q :What is the packaging?
A :Standard export wooden box packaging, solid and firm.



Q :How do you calibrate the equipment?
A :We have our own calibration and third-party calibration such as ISO17025



Q: Is there a door to door service?
A :Yes, there is door to door service. We will arrange a one-stop service.



Q :What are the payment methods?
A Payment methods are T/T, Paypal, L/C, VISA
