Custom Size Walk In Environmental Chamber Drive In Environmental Test Chamber
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE,ROHS |
| Model Number: | WTH-0015C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden Cases Standard Export Package |
| Delivery Time: | 5-16 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 10Sets/quarter |
|
Detail Information |
|||
| Temperature Range: | -70℃ ~ +150℃ | Humidity Range: | 10% ~ 95% RH |
|---|---|---|---|
| Power Supply: | 400V 50HZ | Controller: | Programmable Color LCD Touch Screen Controller |
| Noise: | Less Than 85 DBA | Size: | Custom-made |
| High Light: | walk in stability chamber,walk in humidity chamber |
||
Product Description

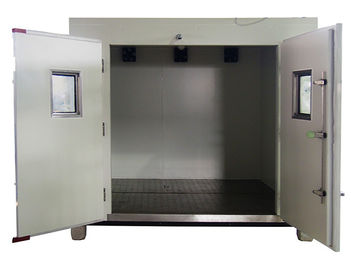

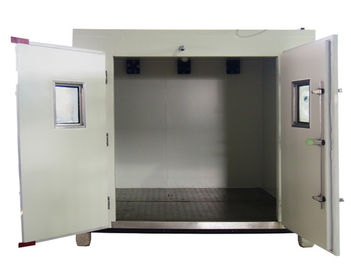

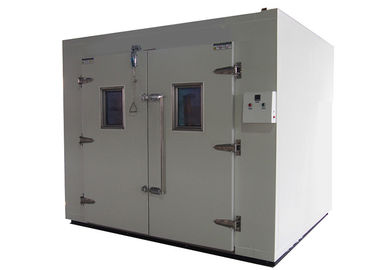

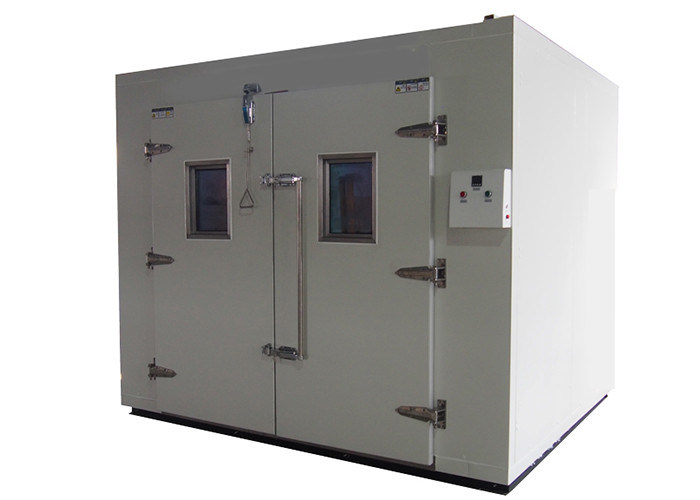

Walk In Climate Chamber, Drive In Environmental Test Chamber
Walk In Climate Chamber, Drive In Environmental Test Chamber Can meet the test requirements of large or irregular test pieces, such as generators, automobiles, motors, aerospace equipment, etc.
Walk in test Chamber are used for various types of testing such as prototype evaluation, research & development testing, production testing, accelerated stress testinq, reliability.
1. Walk-in chambers, drive-in chambers
2. Integrated type and disassembling type
3. Design, construction, installation
4. Engineer on site service
5. 3 years warranty
|
Name |
Walk In Climate Chamber, Drive In Environmental Test Chamber |
|
Model |
WTH-0015C |
|
Internal dimension (mm) |
2500*2500*2500 D*W*H |
|
Overall dimension (mm) |
4000*2550*2850 D*W*H |
|
Temperature range |
-70℃ ~ +150℃ |
|
Humidity range |
10% ~ 95% RH |
|
Temperature fluctuations |
± 2.0℃ |
|
Humidity fluctuations |
± 5.0% RH |
|
Heating rate |
1℃ / min |
|
Cooling rate |
1 ℃ / min |
|
Controller |
Programmable color LCD touch screen controller PC Link, Ethernet port |
|
Cooling system |
Mechanical compression refrigeration system |
|
Thermal insulation |
Polyurethane foam |
|
Noise |
Less than 85 dBA |
|
Power Supply |
400V 50HZ |
|
Environmental conditional |
5℃～+40 ℃ ≤85% RH |
|
Workroom ► Customized according to the size of the sample ► The internal material is 304 stainless steel, mirror surface, rust-proof, high temperature and corrosion resistance;► Nice ruggedness and long life. ► The workroom is equipped with a single-phase 16A internal power interface to power up the test specimen. The power-on time and cycle can be controlled by the controller. |
Controller
|
* Included in the standard version
* service-friendly capacitive humidity measurement system
* hand operated door handle, lockable
* entry port ø 50 mm
* RS 232 interface,PC,USB.APP
* minimum noise level
* high temperature change rate
* simple user-friendly operation and programming
* optimized parameters for highest testing precision
* Test space: stainless steel SUS304/SUS306
* Test space capacity:custom-made
* Temperature range:-40 °C / +180 °C
:-70 °C / +180 °C
* Humidity range:10-98% h.r.
Kazakhstan customer custom temperature and humidity test chamber, LIB engineers are installing
The walk-in test chamber is required for large products, every machine requires custom production and construction. Walk-in chambers are divided into two types, one is integrated. There is also a detachable type, in which the device is split into several departments and needs to be reinstalled,
1. For larger equipment, we divide into two types: one-piece and detachable, we will arrange professional engineers to install
2. What about the warranty with after - sales services?
36 months warranty.After sale online and on - site
3. After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
