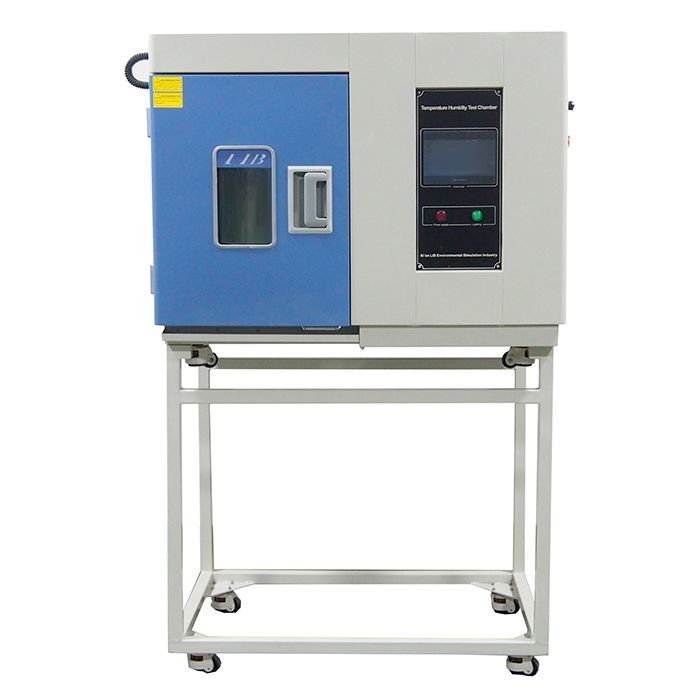

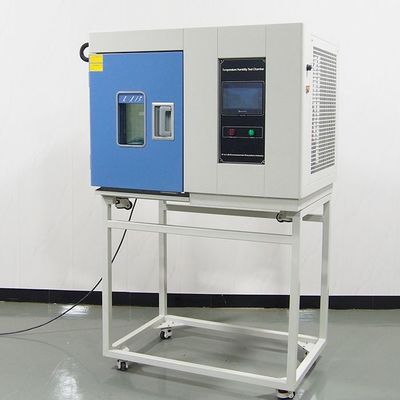

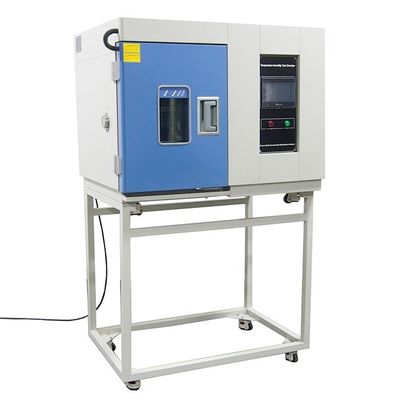

50L Small 20% RH Temperature Humidity Test Chamber
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | RoHS,CE |
| Model Number: | TH-50 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 3-14 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 180 sets / quarter |
|
Detail Information |
|||
| Low Type: | -20℃/-40℃/70℃ | Temperature Range: | -20℃ ～+150 ℃ |
|---|---|---|---|
| Interior Material: | SUS304 Stainless Steel(2.5mm) | Humidity Range: | 20%~98% |
| Product Name: | Temperature Humidity Test Chamber | Standard: | IEC60068-2-1,IEC60068 |
| High Light: | 20% RH Temperature Humidity Test Chamber,50L Temperature Humidity Test Chamber,50L constant temperature humidity chamber |
||
Product Description
Description of Temperature Humidity Chamber
50L Small 20% RH temperature humidity test chamber also called Climatic Chamber and Climate Chamber, simulate various temperature and humidity environment for high low temperature operation & storage, temperature cycling, damp heat, low temperature & humidity and dew test to test performance and reliability on biological items, industrial products, materials, and electronic devices and components.
50L Small 20% RH temperature humidity test chamber can be used for the test for cosmetics, material, biotechnical and etc
Technical Parameters of Temperature Humidity Chamber
| Name | 50L Small 20% RH Temperature Humidity Test Chamber |
| Model | TH-50 |
| Internal dimension (mm) | 320*350*450 |
| Overall dimension (mm) | 800*1050*950 |
| Temperature range | -20℃ ～+150 ℃ |
| Low type | Ⅰ: -40℃ Ⅱ:-70℃ |
| Humidity range | 20% ~ 98% RH |
| Temperature fluctuations | ± 0.5 ℃ |
| Temperature deviation | ± 2.0 ℃ |
| Humidity deviation | ± 2.5% RH |
| Heating rate | 3 ℃ / min |
| Cooling rate | 1 ℃ / min |
| Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class |
| Temperature Resolution | ± 0.001 ℃ |
| Humidity sensor | Dry and wet bulb sensor |
| Power Supply | AC220V 50HZ |
| Environmental conditional | 5℃～+40 ℃ ≤85% RH |
Details Advantage of Temperature Humidity Chamber
 |
|
|

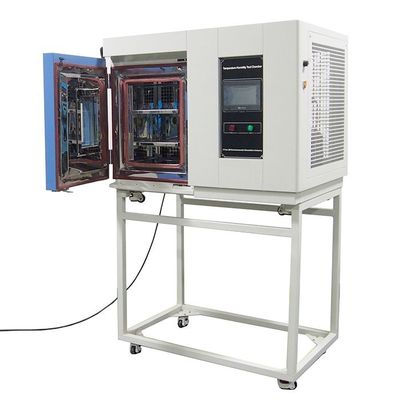

Workroom 50L volume, small test pieces can be placed, sample holder can be disassembled |
Test hole |
|
|
|
Controller |
Data Transmission |
Features of Temperature Humidity Chamber
1. Great performance with quiet working ≤ 65 dBa
2. Space-efficient design for installation
3. Touch-screen programmer/controller
4. Full doorframe with anti-condensation electric heating device
5. One stainless steel cable port with silicone plug by diameter 50mm or 100mm on left
6. Safety protection system for over- current/ over- pressure/over-heat, etc
7. Automatic water supply for continuous test
Test Standard
IEC60068-2-78, IEC60068-2-30, IEC60068-2-38, IEC60068-2-66
ISO16750, JESD22
