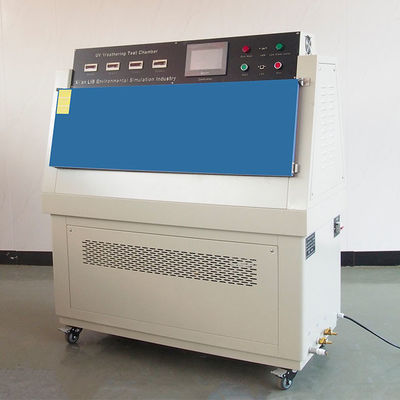

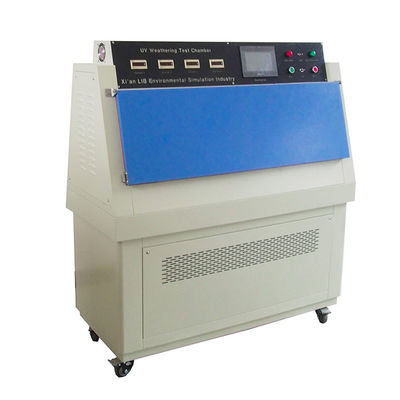

QUV UV Weathering Test Chamber 290 ~ 400nm Bandwidth

QUV UV Weathering Test Chamber 290 ~ 400nm Bandwidth

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE,ROHS,ISO17025
Model Number: UV-SI-260

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden Cases Standard Export Package
Delivery Time: 5-14 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 410Sets
Get Best Price Contact Now

Detail Information

Application: Textiles, Rubber UV Lamp: UVA 340,UVB 313
BPT: 35℃~80℃ Irradiance Control: 0.3~20 W/㎡
Irradiation Source: Fluorescent UV Lamps (8) - 40 W Bandwidth: 290 ~ 400nm
High Light:

QUV UV Weathering Test Chamber


400nm UV Weathering Test Chamber


290nm quv chamber

Product Description

QUV UV Weatehring Tester

QUV uv weatehring tester simulates the environment of high temperature atmospheric pressure environment,The UV simulates the effect of sunlight with fluorescent ultraviolet (UV) lamps, while rain and dew are simulated by the condensation of humidity. which is used to heat resistance test for electrical insulation, ventilation aging test of electronic parts, plasticizing product, leather textile test, treatment of mandatory ventilation, etc.
Technical Specification


QUV UV Weatehring Tester




Internal Dimension (mm)



Overall Dimension (mm)



Specimen Holder Size(mm)



Programmable color LCD touch screen controller
Ethernet connection, PC Link,USB

Temperature Range

Ambient ~ 90 ℃ ±2℃

Black Panel Temperature (BPT)

35 ~ 80 ℃


290 ~ 400nm

Irradiance Control


0.3~20 W/㎡(340nm/313nm)


ISO4892-1,ISO4892-3, ASTM G154, ASTM D4329, ASTM D458, ASTM C125, ASTM C1442, ASTM C1519, ASTM C793, ASTM D1148, ASTM D3424, ASTM D3451, ASTM D410, ASTM D481, ASTM D657, ASTM D6662, ASTM D750, ASTM D904, GM 9125P, ISO 29664

Water Spray Cycle

1~9999H59M (Adjustable)

Distance of Specimen and lamp


Power Supply

380V 50Hz

Maximum Noise

65 dBA

Design Details

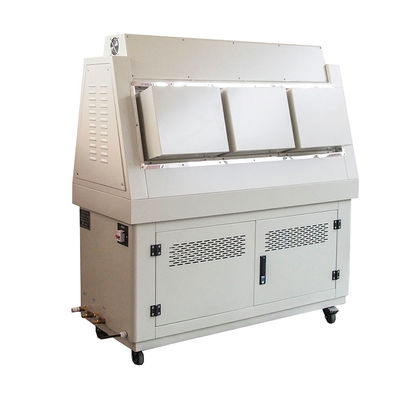

QUV UV Weathering Test Chamber 290 ~ 400nm Bandwidth 0QUV UV Weathering Test Chamber 290 ~ 400nm Bandwidth 1

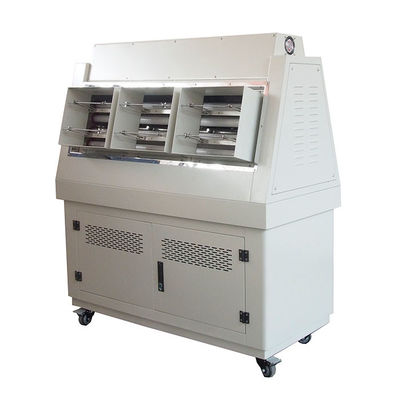

Water spray system2D or 3D Custom sample shelf


1. The UV weathering test equipment employs special fluorescent lamps to simulate UV light at special critical frequencies to reproduce the damage commonly caused by sunlight. It is an easy-to-use and low-maintenance equipment. The sample surface is parallel to the UV lamps.
2. UV aging test chambers,Eight UV lamps are mounted on two sides of the test chamber.
3. UV weatehring tester adopts the channel water heating method to realize rapid heating and even heat distribution, and the automatic water supply system provides more protection to the heating pipes.
4. An automatic sprinkler is placed inside the spray system to adjust the water pressure, while a multi-color touch screen or high-performance PID controller is employed.
5. For safety reasons, various protection functions are offered, such as circuit breakers, overload protection, short circuit protection, over temperature protection and water shortage protection.
QUV UV Weathering Test Chamber 290 ~ 400nm Bandwidth 2
