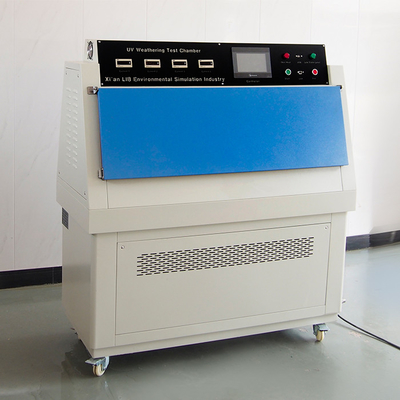

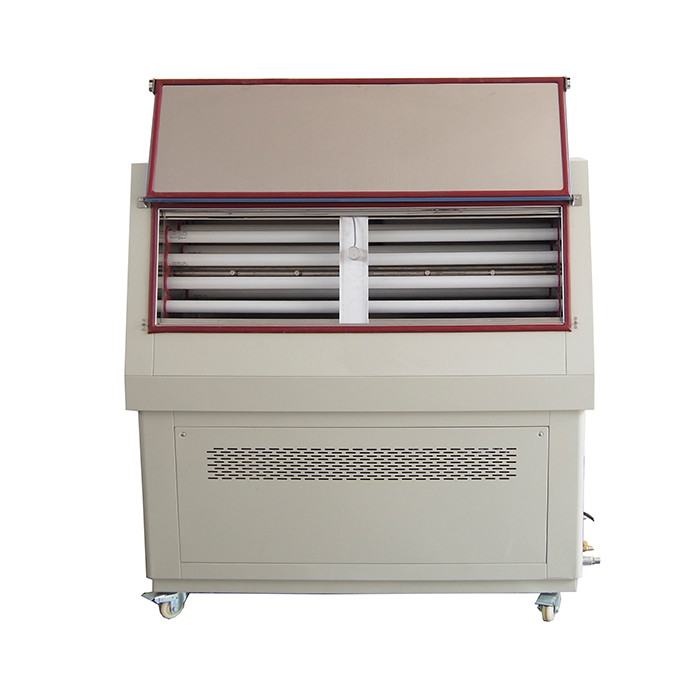

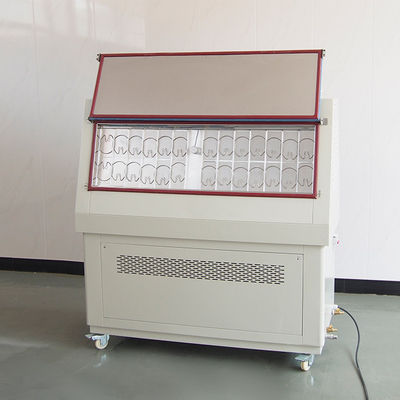

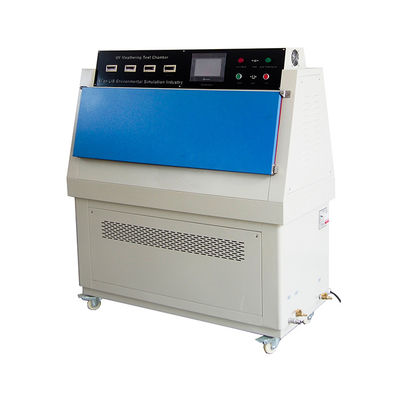

Water Cycle UVB313 UV Aging Test Chamber
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE,RoHS, |
| Model Number: | UV-SI-260 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden Box standard export package |
| Delivery Time: | 3-12 days |
| Payment Terms: | T/T, D/P, D/A, L/C, Western Union, MoneyGram,paypal |
| Supply Ability: | 140 sets / quarter |
|
Detail Information |
|||
| Name: | UV Aging Test Chamber | UV Lamp: | UVA 340,UVB313 |
|---|---|---|---|
| Temperature Range: | Ambient~90℃ ±2℃ | Black Panel Temperature: | BPT 30~80℃ |
| UV Wavelength: | 290 ~ 400nm | Water Cycle: | Water Spray Cycle System |
| High Light: | UVB313 UV Aging Test Chamber,Water Cycle UV Aging Test Chamber,UVB313 uv light chamber |
||
Product Description
Water Cycle UVB313 UV Aging Test Chamber
Description
UV aging test chamber apply for variety of industrial products of performance reliability test, forecast products damage caused by in the sun, rain, humidity and dew conditions, test purpose including bleaching, color, brightness down, powder, crack, blur, embrittlement, the intensity decreased and oxidation.
Standard
Standard of uv aging test chamber
ASTM D4329, D499, D4587, D5208, G154, G53, ISO 4892-3, ISO 11507, EN 534, prEN 1062-4, BS 2782, JIS D0205, SAE J2020.
Specification
| Name | UVB313 UV Aging Test Chamber | |
|
Model |
UV-260 |
UV-SI-260 |
|
Internal dimensions (mm) |
450*1170*500 |
450*1170*500 |
|
Overall dimensions (mm) |
680*1300*1500 |
680*1300*1500 |
|
Capacity of test specimens |
48 pieces Individual specimen size is 75mm * 150mm |
48 pieces Individual specimen size is 75mm *150mm |
|
Controller |
Programmable color display touch screen controller |
Programmable color display touch screen controller |
|
Temperature range |
Ambient~90℃ ±2℃ |
Ambient~90℃ ±2℃ |
|
Humidity range |
≥95％R.H ±2%R.H |
≥95％R.H ±2%R.H |
|
Black Panel Temperature |
BPT 30~80℃ |
BPT 30~80℃ |
|
Irradiation Source |
Fluorescent UV lamps (8) - 40 W |
Fluorescent UV lamps (8) - 40 W |
|
UV wavelength |
290 ~ 400nm |
290 ~ 400nm |
|
Irradiance Control |
N/A |
0.3 ~ 20 W/㎡(340 nm / 313 nm) |
|
Water Spray |
Spraying water |
Spraying water |
|
Distance of Specimen and lamp |
50mm |
50mm |
|
Nominal power |
5000W |
5500W |
|
Power Supply |
380V 50HZ |
380V 50HZ |
Design Details
 |
|
| Sample Shelf | 8 UV Lamp |
|
|
| Programmable controller | Automatic water inlet |
Feature
1. uv weathering chamber,Inner cabinet is made of stainless steel, out shell spurts models processing.
2. UVA or UVB assembly eight UV lamps, front and rear side of the distribution.
3.UV weatherometer,Programmable controller, LCD touch screen
4.Bilateral drainage system. To ensure that the chamber clean, not wet.
UV Lamp
UV weathering tester,About the lamp, we provide Q-lab UVA340, UVB313 lamp, In principle UVB-313 lamp have better accelerated aging effects than UVB-340 faster and more obvious, but in weathering test in terms of reproducibility the UVB-340 is better than UVB-313, its all depend customers on the experimental test of time urgency and critical of the jobon.
|
|
