Environmental Simulation Temperature Small Humidity Chamber -20C ～+150C
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | RoHS,CE |
| Model Number: | TH-50 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 3-14 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 180 sets / quarter |
|
Detail Information |
|||
| Name: | Small Humidity Chamber | Low Type: | -20℃/-40℃/70℃ |
|---|---|---|---|
| Temperature Range: | -20℃ ～+150 ℃ | Warranty: | 36 Monthes |
| Humidity Range: | 20%~98% | Controller: | Programmable LCD Touch Screen |
| High Light: | Small Humidity Chamber -20C,Environmental Simulation Small Humidity Chamber,Small Humidity Chamber 150C |
||
Product Description
Description
Small humidity chamber, Electronic,aerospace material by constant high low temperature, temperature change ,cycling ,damp heat etc environment simulation reliability testing.
Application
Temperature Humidity Test Chamber use for Auto car, Electronic, Military, Aerospace, Chemical, Pharmaceutical, Research institutes, Universities, etc.
| Name | Environmental Simulation Temperature Small Humidity Chamber |
| Model | TH-50 |
| Internal dimension (mm) | 320*350*450 |
| Overall dimension (mm) | 800*1050*950 |
| Temperature range | -20℃ ～+150 ℃ |
| Low type | Ⅰ: -40℃ Ⅱ:-70℃ |
| Humidity range | 20% ~ 98% RH |
| Temperature fluctuations | ± 0.5 ℃ |
| Temperature deviation | ± 2.0 ℃ |
| Humidity deviation | ± 2.5% RH |
| Heating rate | 3 ℃ / min |
| Cooling rate | 1 ℃ / min |
| Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class |
| Temperature Resolution | ± 0.001 ℃ |
| Humidity sensor | Dry and wet bulb sensor |
| Power Supply | AC220V 50HZ |
| Environmental conditional | 5℃～+40 ℃ ≤85% RH |
Equipment Characteristics
 |
|

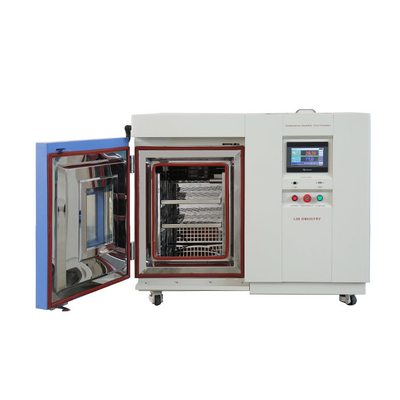

| Observation window Multi - layer insulating glass observation window with energy-saving LED lighting source. |
Temperature sensor accurate control for temeprature and humidity, electric temperature sensor as optional |
Design Standard
Mini Temperature Chamber
●IEC60068-2-1 (GB-2423.1-2008) Testing A: Low temperature testing method
●IEC60068-2-2 (GB-2423.2-2008) Testing B: High temperature testing method
●MIL-STD-202F (GJB360.8-87) High temperature life testing
●MIL-STD-810D (GBJ150.3) High temperature method
●MIL-STD810D (GBJ150.4) Low temperature method
●IEC60068-2-3 (GB2423.3-93) Testing Ca: Constant moist heat testing method.
●IEC60068-2-30 (GB2423.4-93) Testing Db: Alternate moist heat testing method.
For more Climatic Test Chamber models, please contact us
|
|
