Electromagnetic Lock Blowing Rain Test Chamber MIL STD 810
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB INDUSTRY |
| Certification: | Rohs,CE |
| Model Number: | RIM-0120 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 3-14days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 360 sets / quarter |
|
Detail Information |
|||
| Standard: | MIL-STD-810 | Air Speed: | ≥ 18m/s |
|---|---|---|---|
| Rainfall Rate: | ≥ 1.7mm/min | Turntable Speed: | 1-7 R/min, Adjustable |
| Volume Of Water: | ≥280L/m2/h | ||
| High Light: | Blowing Rain Spray Test Chamber,Electromagnetic Lock Rain Test Chamber,Blowing Water Spray Test Chamber |
||
Product Description

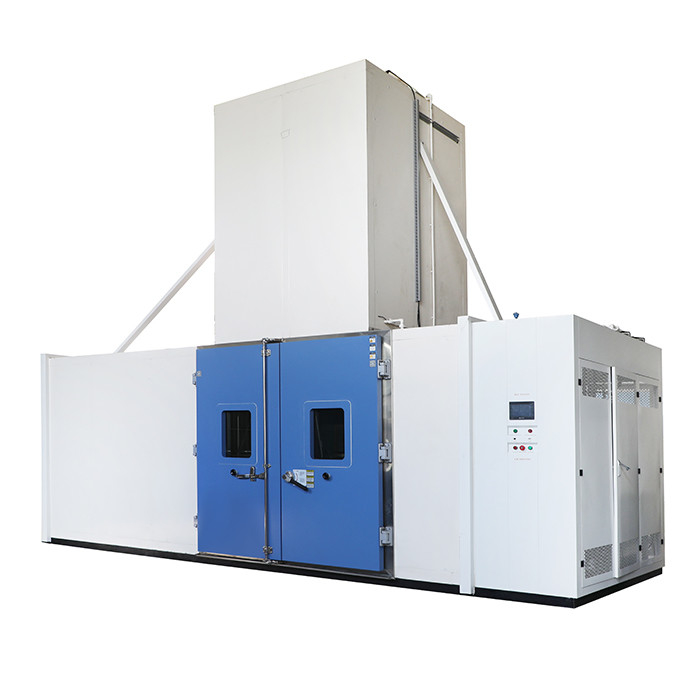

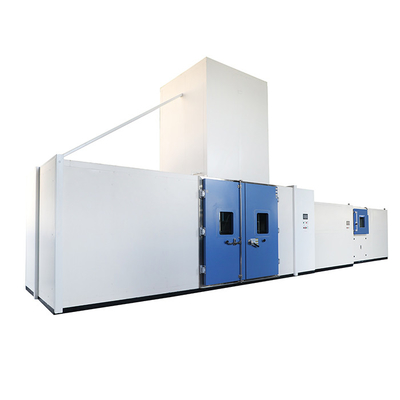

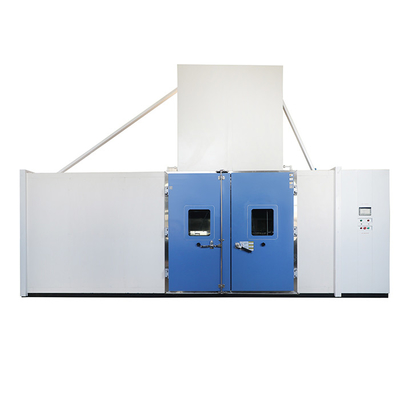

MIL STD 810 Blowing Rain Test Chamber
LIB MIL STD rain test chamber is used for evaluating the resistance of a system to water and rain in accordance with MIL-STD-810h.
Specification
| Name | MIL STD 810 Blowing Rain Test Chamber |
| Model | RIM-0120 |
| Internal Dimension | 1600*3460*2000 mm D*W*H |
| Overall Dimension | 2580*6400*4900 mm D*W*H |
| The load Turntable | 100kg |
| The diameter of Turntable | 800mm |
| Drip tray size | 1600*1000mm , height can be adjustable |
| Rain and Blowing Rain | |
| Air speed | ≥ 18m/s |
| Rainfall rate | ≥ 1.7mm/min |
| Droplet size | 0.5mm ~ 4.5mm |
| Turntable speed | 1-7 r/min, adjustable |
| Volume of water | ≥280L/m2/h |
| Exaggerated | |
| Nozzle pressure | 276kpa |
| Rainfall rate | 20.8L/min |
| Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class |
| Water supply system | Storage water tank; Booster pump; |
| Automatic water supply; Water purification system; | |
| Cooling system | Mechanical compression refrigeration system |
| Controller | Programmable color LCD touch screen controller |
| Build-in Water Tank(mm) | 710*1130*1400 mm |
| Door Lock | MIL STD 810 test chamber equip electromagnetic lock |
| Exterior Material | A3 Steel Plate with protective coating |
| Interior Material | Blowing rain chamber adopt SUS304 stainless steel |
| Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing |
| Standard | Blowing rain chamber meet MIL-STD-810H |

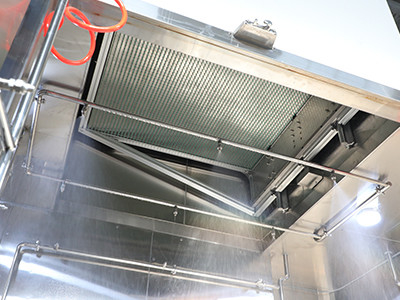

Details
 |
|
| Liftable drip tray | 360 degrees of the nozzle |
|
|
|
|
Features
●TEMPERATURE
Ambient～80℃
●RAIN AND BLOWING RAIN
1.7 mm/min
Air velocity 9m/s on test item
●EXAGGERATED
20.8 L/min
Pressure 276 kpa
●DRIP
280 L/m2/hr
Wind Speed Control
Internal illumination in test room
Rain test chamber equip safety protection system
