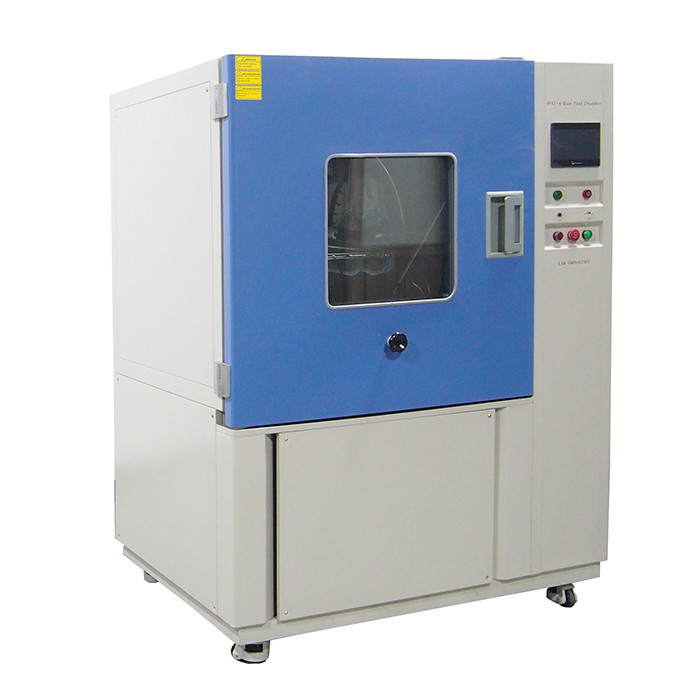

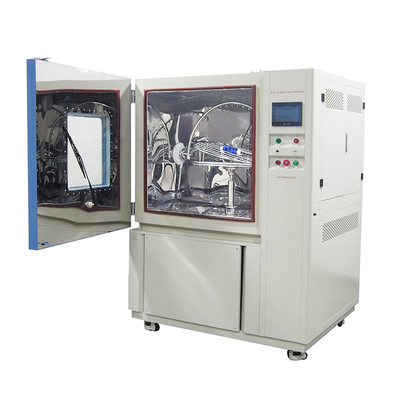

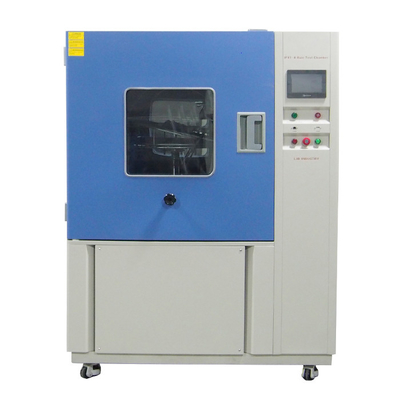

IPX3 IPX4 Water Ingress Test Equipment Programmable Controller
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE,ROHS, |
| Model Number: | R-1200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 3-10 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 140 Sets/ Quarter |
|
Detail Information |
|||
| Type: | Water Ingress Test Equipment | Standard: | IEC 60529, ISO20653 |
|---|---|---|---|
| Water System: | Water Circulation System | Interior Material: | SUS304 Stainless Steel |
| Application: | Lamps, Electric Cabinets; | Controller: | Programmable Controller |
| High Light: | IPX4 Water Ingress Test Equipment,Programmable Water Ingress Test Equipment,Rain Test Equipment IPX3 |
||
Product Description
Water Ingress Test Equipment is convenient for some production of intelligent electronic products, outdoor electrical appliances, communication equipment and other electrical products, to do a waterproof level test, but also a waterproof detection of the instrument.
Specification
| Name | Water Ingress Test Equipment | |
| Model | R-800C | R-1200C |
| Internal Dimensions (mm) | 900*900*900 | 1400*1400*1400 |
| Overall Dimensions (mm) | 1120*1460*1660 | 1600*1950*2100 |
| Swing Angle of Oscillating Tube | 0 ~ ±180° (Adjustable)(IPX3 IPX4) | |
| Turntable Rotation Speed | 1r/min (Adjustable) | |
| Oscillating Tube Radius | 400mm (IPX3 IPX4) | |
| Controller | Programmable color LCD touch screen controller | |
| Ethernet connection, PC Link, USB | ||
| Water supply system | Water tank, booster pump, Automatic water supply, Water purification system | |
| Exterior Material | Steel Plate with protective coating | |
| Interior Material | SUS304 stainless steel | |
| Standard | IEC 60529, ISO20653 | |
Water Resistance Test Equipment Includes
●IPX12 drip testing machine
●IPX34 rain tester
 |
|
|
|
Details
|
|

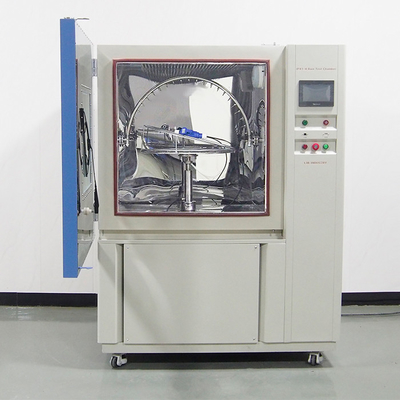

| IPX34 Oscillating Tube | IPX12 Drip Tray |
Apply
The main role of the rain test equipment is to test the physical and other related properties of products such as electronics, electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts and components under simulated rainy climatic conditions.
After the test, the performance of the product is judged to meet the requirements through verification, so as to facilitate the design, improvement, verification and factory inspection of the product.
