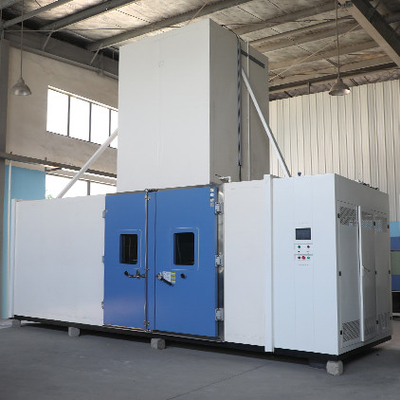

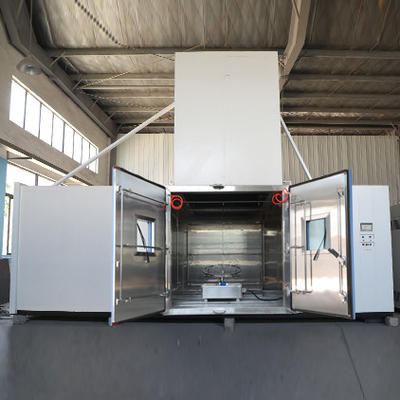

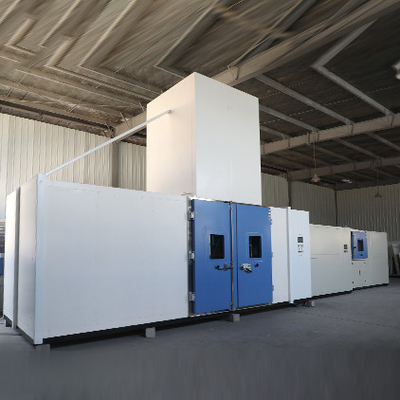

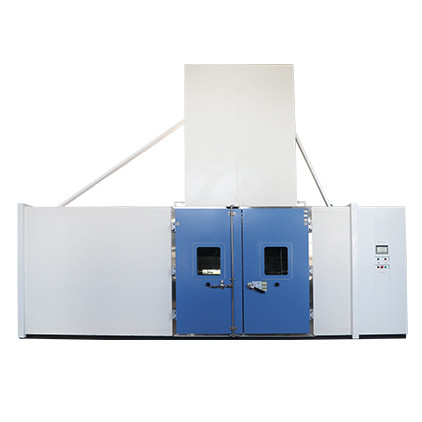

Adjustable Blowing Rain Test Chamber For Military Electronic Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB INDUSTRY |
| Certification: | Rohs,CE |
| Model Number: | RIM-0120 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 3-14days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 360 sets / quarter |
|
Detail Information |
|||
| Standard: | MIL-STD-810 | Air Speed: | ≥ 18m/s |
|---|---|---|---|
| Rainfall Rate: | ≥ 1.7mm/min | Turntable Speed: | 1-7 R/min, Adjustable |
| Volume Of Water: | ≥280L/m2/h | ||
| High Light: | Blowing Rain Test Chamber,Adjustable Rain Spray Test Chamber,Military Electronic Equipment Rain Test Chamber |
||
Product Description
MIL STD 810 Water Test Chamber
The Blowing Rain Test Chamber, also known as the rain test chamber with wind source, is mainly used in some military electronic equipment to do a rain test.
Specification
| Name | MIL STD 810 Water Test Chamber |
| Model | RIM-0120 |
| Internal Dimension | 1600*3460*2000 mm D*W*H |
| Overall Dimension | 2580*6400*4900 mm D*W*H |
| The load Turntable | 100kg |
| The diameter of Turntable | 800mm |
| Drip tray size | 1600*1000mm , height can be adjustable |
| Rain and Blowing Rain | |
| Air speed | ≥ 18m/s |
| Rainfall rate | ≥ 1.7mm/min |
| Droplet size | 0.5mm ~ 4.5mm |
| Turntable speed | 1-7 r/min, adjustable |
| Volume of water | ≥280L/m2/h |
| Exaggerated | |
| Nozzle pressure | 276kpa |
| Rainfall rate | 20.8L/min |
| Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class |
| Water supply system | Storage water tank; Booster pump; |
| Automatic water supply; Water purification system; | |
| Cooling system | Mechanical compression refrigeration system |
| Controller | Programmable color LCD touch screen controller |
| Build-in Water Tank(mm) | 710*1130*1400 mm |
| Door Lock | MIL STD 810 test chamber equip electromagnetic lock |
| Exterior Material | A3 Steel Plate with protective coating |
| Interior Material | Blowing rain chamber adopt SUS304 stainless steel |
| Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing |
| Standard | Blowing rain chamber meet MIL-STD-810H |
Details
 | |
| Liftable drip tray | 360 degrees of the nozzle |
| |
| |
Features
1, circulation fan: Blowing wind chamber,circulation fan is an important guarantee to ensure 18m/s wind speed, the wind source adopts axial fan, fan system package frequency conversion motor, coupling, spindle, bearing seat, wind blade, wind pipe and wind guide vane, the blade is made of stainless steel material, the spindle is made of 304 stainless steel, the motor insulation grade IS55, the full pressure is 700Pa, and the fan power is about 30kw.
2. Channel skeleton: MIL-STD Rain Test Chamber,support the components installed in the channel;
3, rainfall device: rainfall device is mainly composed of lifting device and drip rain disk, rain device can be set by the controller test program, and automatically convert the three test modes with wind source rain, automatic rain from 1 meter from the sample surface.
