95% ~ 98% RH Electric Salt Spray Testing Machine Test Cycle

95% ~ 98% RH Electric Salt Spray Testing Machine Test Cycle

Product Details:

Place of Origin: China
Certification: CE,RoHS,IEC 60068
Model Number: S-250

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden cases standard export package
Delivery Time: 5-14 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 120 sets / quarter
Get Best Price Contact Now

Detail Information

Product Name: Electric Salt Spray Testing Machine Application: Electric Climate Test
Temperature: Ambient ~60℃ Usage: Laboratory, University, Research Center
Warranty: 36 Months Spray Volume: 1.0~2.0ml/80cm2/h
High Light:

98% RH Salt Spray Testing Machine


95% RH Salt Spray Testing Machine


98% RH salt testing equipment

Product Description


IEC 60068-2-11 test cycle electric salt spray testing machine with a certain volume space, the salt spray test device, using artificial methods in its volume space, causing the salt fog environment to evaluate the quality of the product's resistance to salt spray corrosion.


Products Parameters


IEC 60068-2-11 Test Cycle Electric Salt Spray Testing Machine

Model S-250
Internal dimensions  640*1000*500(mm)
Overall dimensions  810*1800*1180(mm)
Temperature range Ambient ~60℃
Humidity range 95% ~ 98% RH
Temperature fluctuations +/- 0.5 ℃
Temperature deviation: +/- 2.0 ℃
Test time 1~999 hours, settable
Spray deposition 1~2ml / 80cm2 · h
Spray type Continuous / Periodic
Temperature Controller LED display, P.I.D+S.S.R. microcomputer integrated controller
Temperature sensor PT100Ω / MV A-class
Salt fog collected Fog collector and fog measure cylinder
salt water filtration Salt water filter near the suction tubes( Avoid the nozzle blockage)
Salt water preheating Saturated air barrel
Spraying system Atomizer tower and Spray nozzles (Fog is more fine and uniform distribution)
Interior /Exterior material Glass fiber reinforced plastics
Standard configuration Sample bracket / sample holder / spray nozzle / Fog collectors / measure cylinder
safety device over-temperature protection, water shortage protection, over current protection, earth leakage protection
Sealing Hydrostatic hood seal
Standard ISO 3768/3769/3770, DIN50021-75, ASTM B-117, JIS H8502, IEC 68-2-11,IEC68-2-52, MIL-STD-750, ISO 9227
Power Supply 220V 50HZ

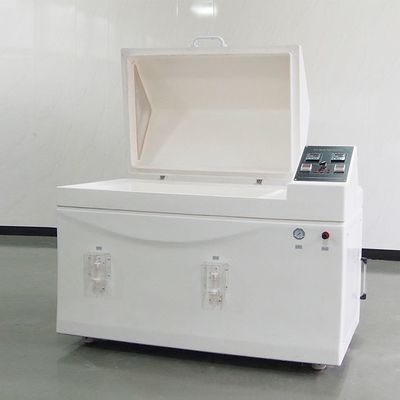

95% ~ 98% RH Electric Salt Spray Testing Machine Test Cycle 0

Electric Salt Spray Testing Machine


Check whether electronic products can work properly after undergoing salt spray environment, whether the appearance will corrode, rust, aging.


Salt Mist Test

During storage, transportation and use, power adapters are often affected by harmful factors in their surroundings, which affect the performance of the power adapter and the reliability and life of the power supply.


LIB INDUSTRY electric salt spray testing machine meet reliability test.

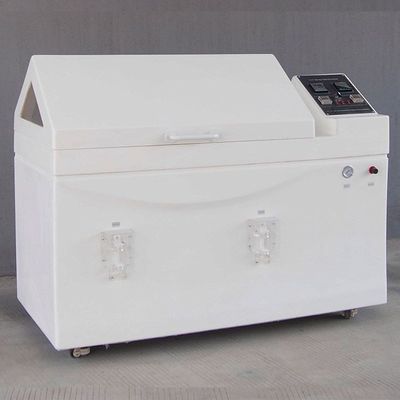

95% ~ 98% RH Electric Salt Spray Testing Machine Test Cycle 1


Salt Test Equipment Details

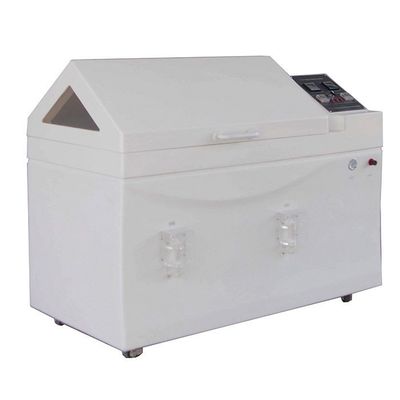

95% ~ 98% RH Electric Salt Spray Testing Machine Test Cycle 2
Galss Fiber Test Area Adjustable spray tower



electric salt spray testing machine

1. With a program-controlled control system, you can choose between continuous salt spray (ASTM standard) or periodic salt mist

2. The automatic/manual water system can automatically replenish the water level when the water level is insufficient, and the test is not interrupted.

3. Precision glass nozzle mist diffuses evenly and naturally falls on the test plate, ensuring no crystalline salt blockage.


Test Requirements

Equipment requirements: electronic salt spray instrument continuous non-stop spray capacity needs to reach at least 48h;

Results requirements: after the test visual inspection of the tested products, operation inspection should not have any faults or damage, can work properly.
