IEC 60068-2-11 Salt Mist Test Chamber Salt Fog Test Machine LED Display
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB INDUSTRY |
| Certification: | CE,RoHS,IEC 60068 |
| Model Number: | S-250 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 5-14 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 120 sets / quarter |
|
Detail Information |
|||
| Product Name: | Salt Mist Test Chamber | Application: | Electric Climate Test |
|---|---|---|---|
| Temperature: | Ambient ～60℃ | Usage: | Laboratory, University, Research Center |
| Display: | LED Display | Spray Volume: | 1.0~2.0ml/80cm2/h |
| High Light: | IEC 60068-2-11 Salt Mist Test Chamber,LED Salt Mist Test Chamber,IEC 60068-2-11 Salt Fog Test Machine |
||
Product Description

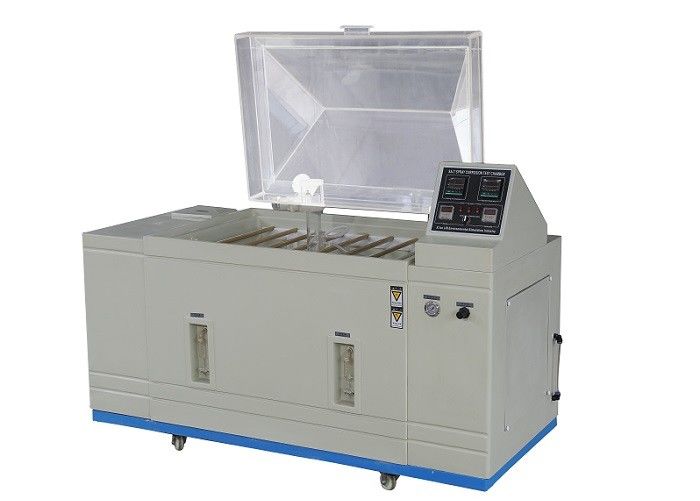

IEC 60068-2-11 Salt Mist Test Chamber Salt Fog Test Machine LED Display
Description
Salt Mist Test Chamber is used in to test automobile and motocycle spare parts, such as car rearview mirror, car audio, automotive electronics, automotive lighting, automotive lamps, motocycle lamps, motocycle rearview mirror, electrical and electronic products, watches, hardware, outdoor lighting, electronic communiction, locomotives, instrumentation, aerospace, and waterproof strip industries.
Products Parameters
| Name |
IEC 60068-2-11 Salt Mist Test Chamber Salt Fog Test Machine LED Display |
| Model | S-250 |
| Internal dimensions | 640*1000*500(mm) |
| Overall dimensions | 810*1800*1180(mm) |
| Temperature range | Ambient ～60℃ |
| Humidity range | 95% ~ 98% RH |
| Temperature fluctuations | +/- 0.5 ℃ |
| Temperature deviation: | +/- 2.0 ℃ |
| Test time | 1~999 hours, settable |
| Spray deposition | 1～2ml / 80cm2 · h |
| Spray type | Continuous / Periodic |
| Temperature Controller | LED display, P.I.D+S.S.R. microcomputer integrated controller |
| Temperature sensor | PT100Ω / MV A-class |
| Salt fog collected | Fog collector and fog measure cylinder |
| salt water filtration | Salt water filter near the suction tubes( Avoid the nozzle blockage) |
| Salt water preheating | Saturated air barrel |
| Spraying system | Atomizer tower and Spray nozzles (Fog is more fine and uniform distribution) |
| Interior /Exterior material | Glass fiber reinforced plastics |
| Standard configuration | Sample bracket / sample holder / spray nozzle / Fog collectors / measure cylinder |
| safety device | over-temperature protection, water shortage protection, over current protection, earth leakage protection |
| Sealing | Hydrostatic hood seal |
| Standard | ISO 3768/3769/3770, DIN50021-75, ASTM B-117, JIS H8502, IEC 68-2-11,IEC68-2-52, MIL-STD-750, ISO 9227 |
| Power Supply | 220V 50HZ |
Advantage
 |
Electric Salt Spray Testing Machine
Check whether electronic products can work properly after undergoing salt spray environment, whether the appearance will corrode, rust, aging. |
Salt Mist Test
During storage, transportation and use, power adapters are often affected by harmful factors in their surroundings, which affect the performance of the power adapter and the reliability and life of the power supply.
LIB INDUSTRY electric salt spray testing machine meet reliability test.
Salt Test Equipment Details
|
|
| Galss Fiber Test Area | Adjustable spray tower |
Advantage
electric salt spray testing machine
1. With a program-controlled control system, you can choose between continuous salt spray (ASTM standard) or periodic salt mist
2. The automatic/manual water system can automatically replenish the water level when the water level is insufficient, and the test is not interrupted.
3. Precision glass nozzle mist diffuses evenly and naturally falls on the test plate, ensuring no crystalline salt blockage.
Test Requirements
Equipment requirements: electronic salt spray instrument continuous non-stop spray capacity needs to reach at least 48h;
Results requirements: after the test visual inspection of the tested products, operation inspection should not have any faults or damage, can work properly.
