Programmable Salt Spray Corrosion Test Chamber ISO 3768 Astm B117
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB INDUSTRY |
| Certification: | CE,RoHS,IEC 60068 |
| Model Number: | S-250 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 5-14 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 120 sets / quarter |
|
Detail Information |
|||
| Product Name: | Programmable Salt Spray Corrosion Test Chamber | Application: | Electric Climate Test |
|---|---|---|---|
| Temperature: | Ambient ～60℃ | Warranty: | 36 Months |
| Spray Volume: | 1.0~2.0ml/80cm2/h | Standard: | ISO 3768 Astm B117 |
| High Light: | Programmable Salt Spray Corrosion Test Chamber,ISO 3768 Salt Spray Corrosion Test Chamber,Programmable astm b117 chamber |
||
Product Description

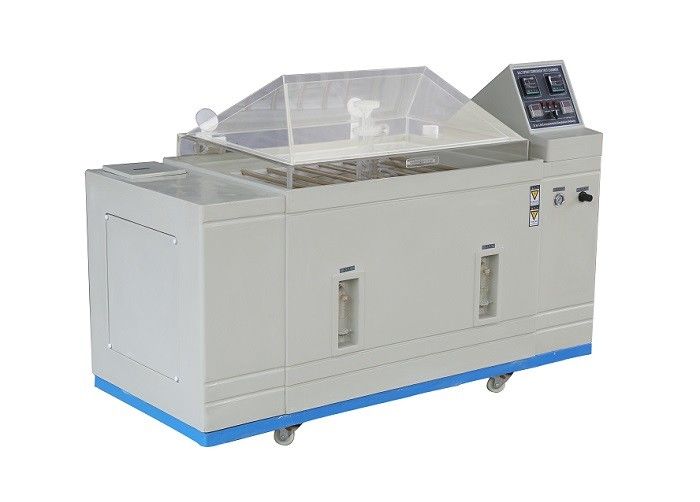

Programmable Salt Spray Corrosion Test Chamber ISO 3768 Astm B117
Description
Salt Spray Corrosion Test Chamber used to test the corrosive resistance of products whose the surface was treated with paint, electroplating, inorganic and organic film, anode handling, anti-rust oil,etc.
Products Parameters
| Name |
Programmable Salt Spray Corrosion Test Chamber ISO 3768 Astm B117 |
| Model | S-250 |
| Internal dimensions | 640*1000*500(mm) |
| Overall dimensions | 810*1800*1180(mm) |
| Temperature range | Ambient ～60℃ |
| Humidity range | 95% ~ 98% RH |
| Temperature fluctuations | +/- 0.5 ℃ |
| Temperature deviation: | +/- 2.0 ℃ |
| Test time | 1~999 hours, settable |
| Spray deposition | 1～2ml / 80cm2 · h |
| Spray type | Continuous / Periodic |
| Temperature Controller | LED display, P.I.D+S.S.R. microcomputer integrated controller |
| Temperature sensor | PT100Ω / MV A-class |
| Salt fog collected | Fog collector and fog measure cylinder |
| salt water filtration | Salt water filter near the suction tubes( Avoid the nozzle blockage) |
| Salt water preheating | Saturated air barrel |
| Spraying system | Atomizer tower and Spray nozzles (Fog is more fine and uniform distribution) |
| Interior /Exterior material | Glass fiber reinforced plastics |
| Standard configuration | Sample bracket / sample holder / spray nozzle / Fog collectors / measure cylinder |
| safety device | over-temperature protection, water shortage protection, over current protection, earth leakage protection |
| Sealing | Hydrostatic hood seal |
| Standard | ISO 3768/3769/3770, DIN50021-75, ASTM B-117, JIS H8502, IEC 68-2-11,IEC68-2-52, MIL-STD-750, ISO 9227 |
| Power Supply | 220V 50HZ |
Advantage
 |
The salt spray experiment is divided into two main categories: 1. Natural environmental exposure tests, 2. Artificial acceleration of simulated salt spray environmental tests. |
LIB INDUSTRY electronic salt fog testing machine complies with the accelerated analog salt spray standard
Salt Test Equipment Details
|
|
| Galss Fiber Test Area | Simple Operation Controller |
Apply
Electronic salt fog testing machine
1. Computer categories: computers, displays, hosts, computer components, medical equipment and other precision instruments
2. Electronic communications category: mobile phones, RF, electronic communication components.
