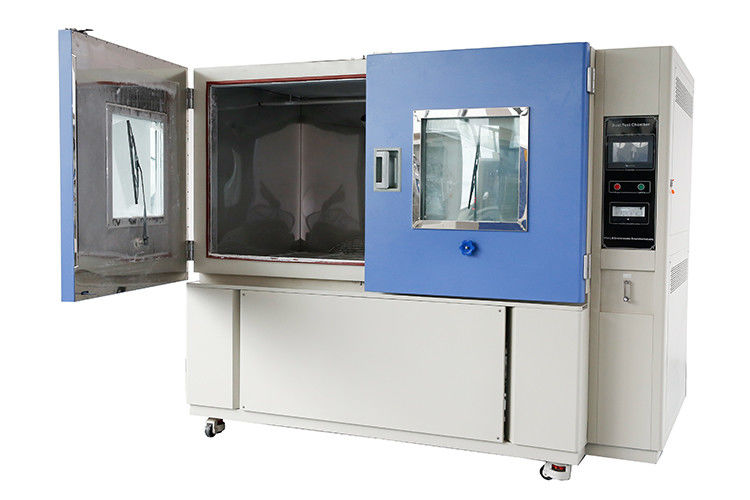

Dust Proof Sand And Dust Test Chamber IP Test Equipment For Lab Testing

Dust Proof Sand And Dust Test Chamber IP Test Equipment For Lab Testing

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE,ISO17025,ROHS
Model Number: DI-1500

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden cases standard export package
Delivery Time: 8-14days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Palpay
Supply Ability: 160 Sets/ Quarter
Get Best Price Contact Now

Detail Information

Normal Wire Diameter: 50um Standard: IEC 60529,ISO 20653
Specimen Power Outlet: Dust-proof Socket 16A Temperature Range: Ambient ~ +50℃
Environmental Conditional: 5℃~+35 ℃
High Light:

sand testing machine

,

dust testing equipment

Product Description

Dust Proof Sand And Dust Test Chamber IP Test Equipment For Lab Testing

Dust Tight Test Facility Dustproof IP Test Equipment For Lab Testing

♦ Product Description of Dustproof IP Test Equipment

Dust Tight Test Facility Dustproof IP Test Equipment For Lab Testing,simulates the environment of dust filled atmosphere to test products sealing and dust proof test properties.

Dust-proof Test Chamber is mainly used for IP5X and IP6X dust proof test of automotive parts,LED lights and other luminaries.t complies with IEC60529,GB2423.37-89 (Test L: dust test methods), GB 4208-93 protective casing grade (IP code), GB/T 4942.2-93(protective casing grade of low-voltage apparatus),



Application of Dustproof IP Test Equipment

Auto parts
Electronic parts
LED lights
Home appliance
Motorcycle autoparts

Dust Tight Test Facility Dustproof IP Test Equipment For Lab Testing is suitable for all kinds of automotive parts dust-proof, dust resistance test. Test components including automotive lights, instrumentation, electrical cover, switch system, door lock, etc., and test its sealing performance. Besides, it also has view window with illumination.



♦ Parameter of Dustproof IP Test Equipment

Name

 Dust Tight Test Facility Dustproof IP Test Equipment For Lab Testing

Model

DI-800

DI-1000

DI-1500

DI-2000

Internal Dimension (mm)

800*1000*1000

1000*1000*1000

1000*1500*1000

1000*2000*1000

Overall Dimension (mm)

1040*1450*1960

1200*1450*1960

1250*1900*1960

1300*2400*1960

Temperature Range

Ambient ~ +50℃

Humidity Range

< 30% RH

Normal Wire Diameter

50um

Nominal Width of a Gap Between wires

75um

Fight Time

0 ~ 99H59M

Blowing Time

0 ~ 99H59M

Specimen Power Outlet

Dust-proof socket 16A

Vacuum System

Equipped with a pressure gauge, air filter, pressure regulator, connecting tube

Maximum Noise

65 dBA

Environmental Conditional

5℃~+35 ℃ ≤85% RH

Door Lock

Electromagnetic lock

Safety Device

Over-temperature Protection; Over-current Protection;

                    Earth Leakage Protection;Phase Sequence Protection

Observation Window

Interior lighting, double-layer thermostability silicone rubber sealing

Standard configuration

Sample shelf, dust wiper, talcum powder(5kgs)

Power Supply

380V 50Hz

♦ The structures of Dustproof IP Test Equipment

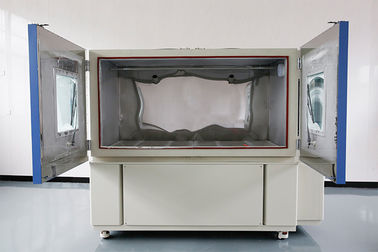

Dust Proof Sand And Dust Test Chamber IP Test Equipment For Lab Testing 0

1. Workroom

The internal material is 304 stainless steel, mirror surface, rust-proof, high temperature and corrosion resistance;



2. Viewing window

Double-layer tempered glass, specially designed seal, with good impact resistance and prevention of sand and dust leakage.



3. Dust Circulation
During test, dust is blown in test area by motor and blower, and then fall in funnel, and re-cycle blowing by circulating pump to achieve dust circulation.
Bottom of chamber is fitted with blower, vacuum pump, motor.
Dust collection section is located on bottom of test chamber.



4. Controller

PID programmable color touch screen controller, network connection computer.

Can edit 120 programs 20 segments.

LIB also can preset the program into the controller based on user testing requirements.



♦ How to service

1. At first, our test chambers are produced based on 20 years product lifetime.

2. If the customer needs our engineer on-site service, they only need to pay the ticket accommodation to our Engineers, service is for free.

3. If products still can't use after our engineers' repair, we will produce a new test chamber (same as the old one) to our customers with no charge.



♦ Packaging and Shipping

1. Seal chamber with waterproof plastic film. Protect chamber from seawater corrosion.

2. Buffer foam is placed in the four corners of the chamber.

3. Standard wood export packaging.

   Gross weight: 600kgs~

   Package size: 2100*1400*2300 mm

It can be used for Sea, Air, Railway, Truck, and multimodal transport.



♦ RFQ

1. Can you ship quickly?
-- Our delivery period is 3-21 days. Some of the hot-selling equipments are in stock and can be shipped within 1-3 days.



2.What are the payment methods?
-- Payment methods are T/T, Paypal, L/C, VISA



3. Is there a door to door service?
-- Yes, there is door to door service. We will arrange a one-stop service.



4. How do you calibrate the equipment?
--We have our own calibration and third-party calibration such as ISO17025.



5. Can I install and debug calibration on site?
-- Yes, we can send technicians and engineers to the customer site for installation, commissioning and calibration.



6. Can you send engineers to our company?
--Yes, sure. We will communicate in advance to facilitate the bringing of tools and components.



7. Can we come to your factory to study and train?
-- Welcome to our factory for study and training, we provide this service free of charge.



8. Do you have an agent?
-- Currently we have agents in Europe, Asia, North America, South Africa, and can provide sales and technical services.



► Other products

Our main products included temperature and humidity test chambers, Corrosion salt chambers, Accelerated weathering chambers, IP dust&rain chambers, Ozone test chamber, Noxious gas SO2 H2S chambers.

Small Dust Sand Test Chamber IPX Series Rain Test Chamber
Temberature Humidity Test Chamber Salt Spary Test Chamber

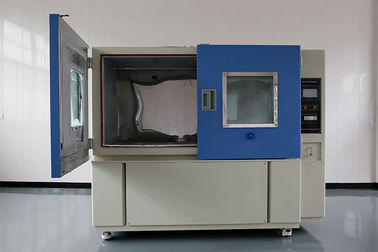

Dust Proof Sand And Dust Test Chamber IP Test Equipment For Lab Testing 1
