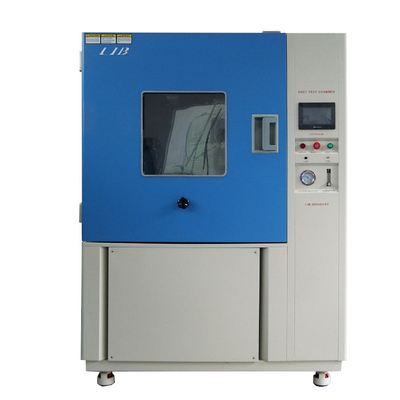

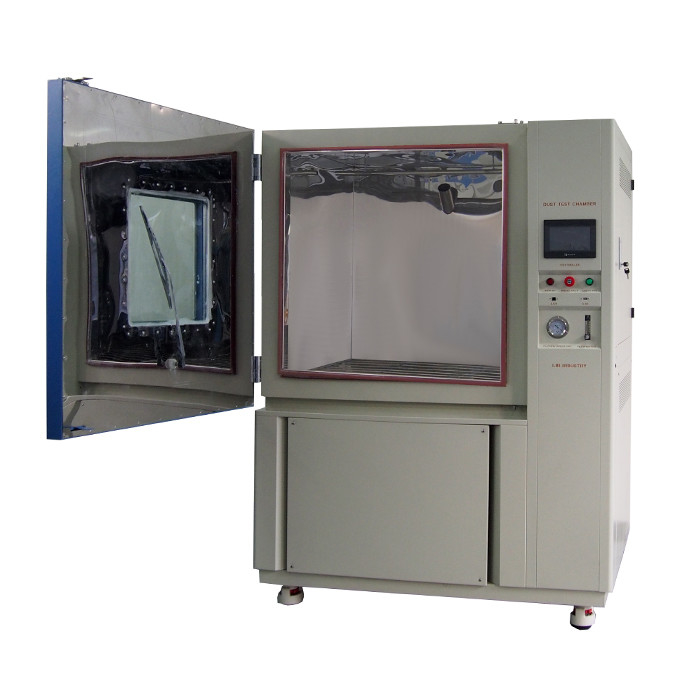

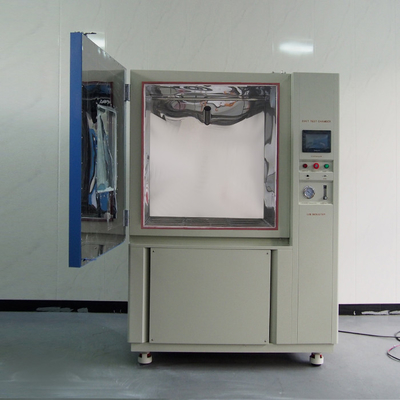

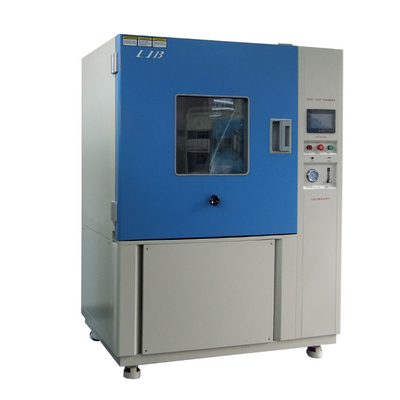

Programmable Sand And Dust Test Chamber Water Tester IEC60529 IP6X IP68
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | IEC60529,Rohs,CE |
| Model Number: | DI-800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 3-14days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 360 sets / quarter |
|
Detail Information |
|||
| Name: | Programmable IEC60529 IP6X IP68 Water Tester | Temperature Range: | Ambient To +50℃ |
|---|---|---|---|
| Normal Wire Diameter: | 50um | Normal Width Of A Gap Between Wire: | 75um |
| Standard: | IEC60529,ISO20653 | Controller: | Programmable Color Display Touch Screen Controller |
| High Light: | IP6X IP68 Water Tester,Programmable Water Tester IP68,Water Sand And Dust Chamber |
||
Product Description
Description
IP68 Water Tester,The main role is to test the physical and other related properties of electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts and components under simulated water-immersed and dusty climatic conditions.
After the test, the performance of the product is judged to meet the requirements through verification, so as to facilitate the design, improvement, verification and factory inspection of the product.
Parameter
 |
IP6X dustproof test mainly simulates the dust environment through talc, completely prevents dust from entering, talc can be recycled,
|
| Model | DI-800 |
| Internal Dimension (mm) | 800*1000*1000 |
| Overall Dimension (mm) | 1040*1450*1960 |
| Interior Volume (L) | 800 |
| Temperature Range | Ambient ~ +50℃ |
| Humidity Range | < 30% RH |
| Normal Wire Diameter | 50um |
| Nominal Width of a Gap Between wires | 75um |
| Specimen Power Outlet | Dust-proof socket 16A |
| Vacuum System | Equipped with a pressure gauge, air filter, pressure regulator, connecting tube |
| Standard Configuration | Sample shelf, dust wiper, talcum powder(5kgs) |
|
IPX8 water immersion experiment is mainly the product under a certain pressure continuous immersion test,
|
| Name | IPX7 immersion test equipment |
| Model | R78-1000 |
| Useful volume | Diameter 1000mm, Height 1500mm. |
| Material | Material is steel plate, wall thickness 2cm |
| Water depth | Water depth pressure range 1~100m, adjustable |
| Water supply | Automatic water supply |
| Controller | Programmable color touch screen type controller |
| Open/close | Open/close lid by pneumatic lift, with safety lock. |
| Standard | Comply with IEC60529 IPX7 IPX8 water tests |
|
|
| |
|
