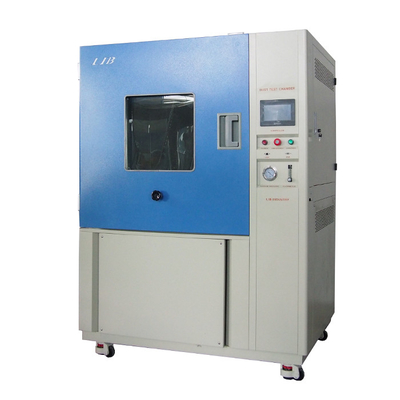

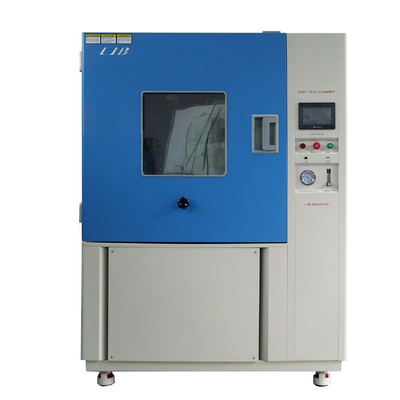

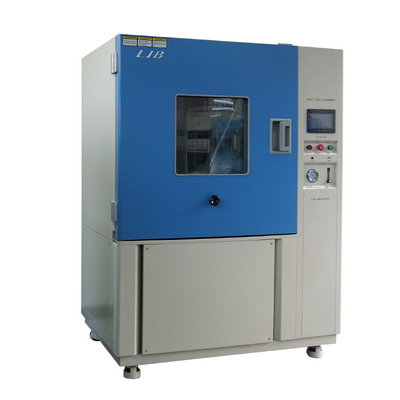

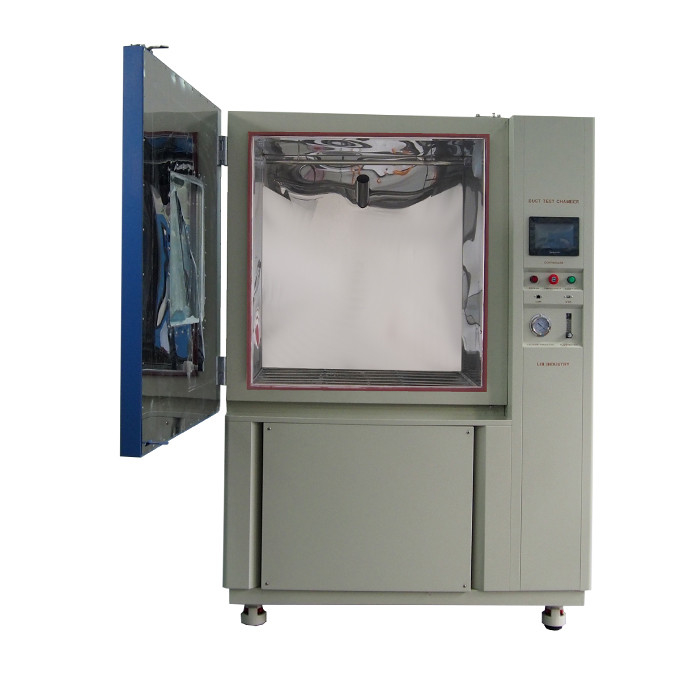

Programmable Sand And Dust Test Chamber Simulation IP68

Programmable Sand And Dust Test Chamber Simulation IP68

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: IEC60529,Rohs,CE
Model Number: DI-800

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden cases standard export package
Delivery Time: 3-14days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 360 sets / quarter
Get Best Price Contact Now

Detail Information

Name: Standard Simulation IP68 Test Equipment Temperature Range: Ambient To +50℃
Normal Wire Diameter: 50um Normal Width Of A Gap Between Wire: 75um
Standard: IEC60529,ISO20653 Controller: Programmable Color Display Touch Screen Controller
High Light:

Simulation Sand Testing Machine

,

IP68 Dust Sand Test Chamber

,

Programmable Sand Test Chamber

Product Description

Description


IP68 Test Equipment,IP protection level test is specifically for the sealing process of the product barrier in accordance with the requirements of a particularly important experimental content, outdoor equipment for IP protection level test is very necessary to do.



once the product body inside the water droplets or dust into, will affect the electrical performance of the entire equipment. Therefore, the IP68 protection level test is equal to the electrical product is very important.



Parameter







IP6x dustproof test: requires the sample shell to be vacuumed, which is highly dusty, and is placed in the dust box for 8 hours after opening the lid to check whether there is dust entering the sample.



Model DI-800
Internal Dimension (mm) 800*1000*1000
Overall Dimension (mm) 1040*1450*1960
Interior Volume (L) 800
Temperature Range Ambient ~ +50℃
Humidity Range < 30% RH
Normal Wire Diameter 50um
Nominal Width of a Gap Between wires 75um
Specimen Power Outlet Dust-proof socket 16A
Vacuum System Equipped with a pressure gauge, air filter, pressure regulator, connecting tube
Standard Configuration Sample shelf, dust wiper, talcum powder(5kgs)





ip67 test chamber 2

IPX8 waterproof test: continuous immersion in water for at least 1 hour,







Name IPX7 immersion test equipment
Model R78-1000
Useful volume Diameter 1000mm, Height 1500mm.
Material Material is steel plate, wall thickness 2cm
Water depth Water depth pressure range 1~100m, adjustable
Water supply Automatic water supply
Controller Programmable color touch screen type controller
Open/close Open/close lid by pneumatic lift, with safety lock.
Standard Comply with IEC60529 IPX7 IPX8 water tests



40.jpg 42.jpg
   IPX7 IPX8 water immersion tank (10).jpg    IPX7 IPX8 water immersion tank (12).jpg
