IEC 60529 IP6X IPX7 IP67 Sand And Dust Test Chamber Display Controller

IEC 60529 IP6X IPX7 IP67 Sand And Dust Test Chamber Display Controller

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: IEC60529,Rohs,CE
Model Number: DI-800

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden cases standard export package
Delivery Time: 3-14days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 360 sets / quarter
Get Best Price Contact Now

Detail Information

Name: IEC 60529 IP6X IPX7 IP67 Test Equipment Temperature Range: Ambient To +50℃
Normal Wire Diameter: 50um Normal Width Of A Gap Between Wire: 75um
Standard: IEC60529,ISO20653 Controller: Programmable Color Display Touch Screen Controller
High Light:

IPX7 Sand And Dust Test Chamber


IP6X Sand Testing Machine


Environmental Sand Test Chamber

Product Description



IP67 Test Equipment, mainly according to IEC60529 standard production and design of shell protection equipment, test equipment is mainly divided into IP6X sand test equipment, IPX7 water inlet test equipment.




sand and dust test chamber (35)


IP6X dust test equipment has 19+ models to choose from.

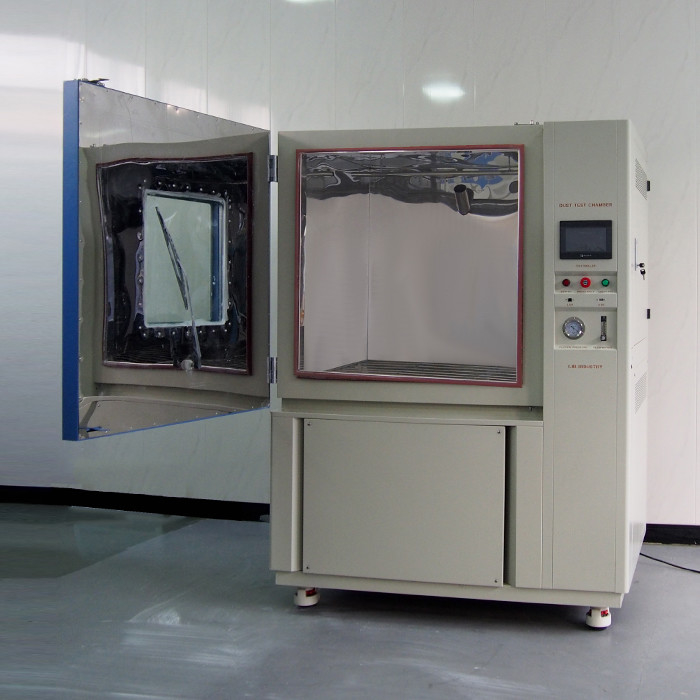

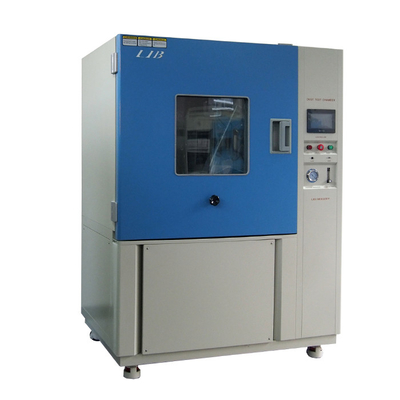

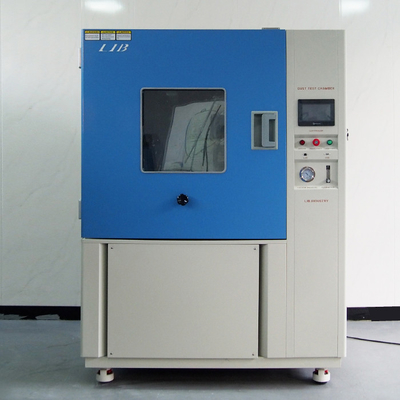

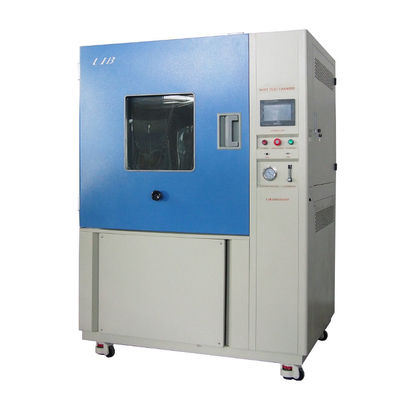

This device is DI-800, which can test the dust-proof performance of lamps, computers, printers, cameras and other products


Name IP6X dust test equipment
Model DI-800
Internal Dimension (mm) 800*1000*1000
Overall Dimension (mm) 1040*1450*1960
Interior Volume (L) 800
Temperature Range Ambient ~ +50℃
Humidity Range < 30% RH
Normal Wire Diameter 50um
Nominal Width of a Gap Between wires 75um
Specimen Power Outlet Dust-proof socket 16A
Vacuum System pressure gauge, air filter, pressure regulator, connecting tube
Standard Configuration Sample shelf, dust wiper, talcum powder(5kgs)



ip67 test chamber 2

R78-1000 IPX7 immersion test equipment is mainly to simulate the product under the natural condition of immersion 1 meters, the waterproof performance of the product



Name IPX7 immersion test equipment
Model R78-1000
Useful volume Diameter 1000mm, Height 1500mm.
Material Material is steel plate, wall thickness 2cm
Water depth Water depth pressure range 1~100m, adjustable
Water supply Automatic water supply
Controller Programmable color touch screen type controller
Open/close Open/close lid by pneumatic lift, with safety lock.
Standard Comply with IEC60529 IPX7 IPX8 water tests


40.jpg 42.jpg
   IPX7 IPX8 water immersion tank (10).jpg    IPX7 IPX8 water immersion tank (12).jpg
