IP5X IPX5 IEC60529 Dust Rain Test Chamber Waterproof IP55

IP5X IPX5 IEC60529 Dust Rain Test Chamber Waterproof IP55

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: IEC60529,Rohs,CE
Model Number: DI-800,R56

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden cases standard export package
Delivery Time: 3-14days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 360 sets / quarter
Get Best Price Contact Now

Detail Information

Application: Outdoor Products,Car Standard: IEC60529,ISO20653
Model: 800L,1000L,Customization IP55 Test: IP5X Dust Test, IPX5 Water Test
After Sale: 3 Years Warranty Interior Material: SUS304 Stainless Steel
High Light:

IEC60529 Dust Rain Test Chamber

,

IP5X Dust Rain Test Chamber

,

IPX5 sand dust test chamber

Product Description

IP5X IPX5 IEC60529 Dust Rain Test Chamber Waterproof IP55

IP5X IPX5 IEC60529 Waterproof IP55 Dust Rain Test Chamber



Description


The power battery is the power source that provides the power source for the tool, and usually refers to the battery that provides power for electric cars, electric trains, electric bicycles, and golf carts. Motors or controllers often have some dust on them. The longer the dust accumulates, the more it affects the safety of car operation, and it is easy to cause safety accidents, and there are deficiencies.



Before the products are put on the market and used, they need to undergo product quality testing to meet national standards. Among them, building materials and waterproofing are important international brands for testing outdoor products, mechanical and electrical products, and daily necessities.



LIB can provide manufacturers with IP55 Dust Rain Test Chamber,(IP5X test chamber, IPX5 test chamber) for testing the waterproof and waterproof performance of products



Technical Specification

IP5X IPX5 IEC60529 Dust Rain Test Chamber Waterproof IP55 0 IPX5 Water Jetting Test Chamber
Standard IEC60529(IPX5 Test,IPX6 Test)
Workroom dimension (mm) 800*800*800 D*W*H
External dimension (mm) 950*3150*1800 D*W*H
Turntable Rotation Speed 0~7r/min (Adjustable)
Internal Diameter of IPX5 Nozzle 6.3mm
Internal Diameter of IPX6 Nozzle 12.5mm
Water Flow Rate IPX5/ IPX6 12.5L/min ±5% / 100L/min ±5%
Build-in Water Tank(mm) 370*375*950
Water Supply System Water tank, booster pump, Automatic water supply, Water purification system





IP5X IPX5 IEC60529 Dust Rain Test Chamber Waterproof IP55 1 IP5X Sand Dust Test Chamber
Standard IEC60529(IP5x Test)
Internal Dimension (mm) 800*1000*1000
Overall Dimension (mm) 1040*1450*1960
Temperature Range Ambient ~ +50℃
Humidity Range < 30% RH
Normal Wire Diameter
50um
Nominal Width of a Gap Between wires 75um
Specimen Power Outlet Dust-proof socket 16A
Vacuum System Equipped with a pressure gauge, air filter, pressure regulator, connecting tube
Standard Configuration Sample shelf, dust wiper, talcum powder(5kgs)



Advantage

  Test Area
IP5X IPX5 IEC60529 Dust Rain Test Chamber Waterproof IP55 2

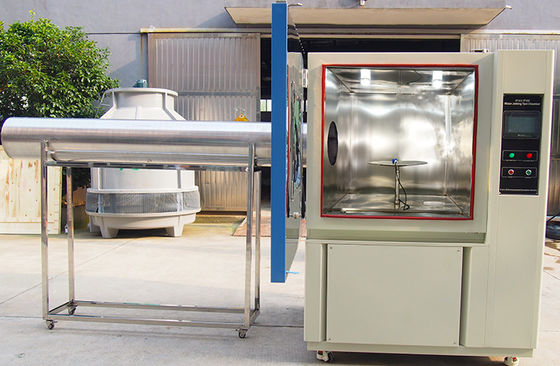

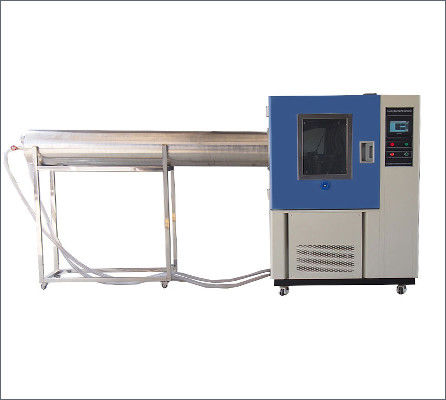

IPX5 Water Jetting Test Chamber



The sample rack of the rain test chamber is a rotating sample rack with a built-in power supply

the speed and angle can be adjusted



Sample should be firmly fixed on the turntable.

IP5X IPX5 IEC60529 Dust Rain Test Chamber Waterproof IP55 3

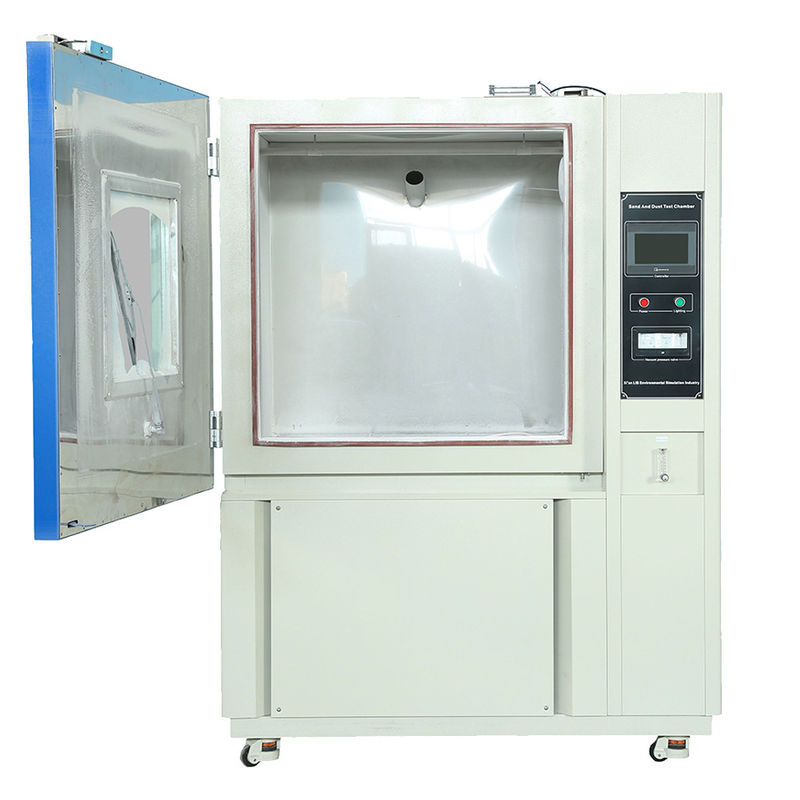

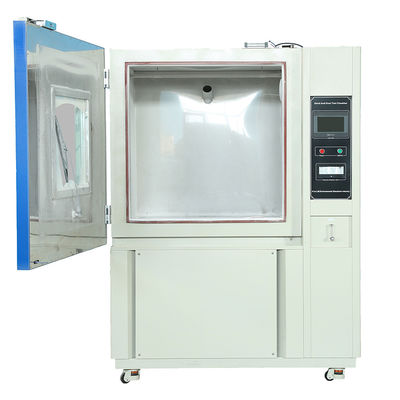

Dust and Sand Test Chamber



The sample rack of the sand and dust test chamber adopts suspended and free-standing types,



equipped with a built-in power supply and vacuum system to meet different testing needs, and has a sand and dust circulation system.





Standard Features


IP55 dust rain test chamber has the following advantages

●Controller:Programmable color LCD touch screen controller,Ethernet connection, PC Link, USB

●Safety Device:Over-temperature Protection; Over-current Protection;Earth leakage Protection; Phase ●Sequence Protection

●Exterior Material:Steel Plate with protective coating

●Interior Material:SUS304 stainless steel

●Observation Window:Double layer insulating glass with wiper

●Standard:IEC 60529, ISO20653

●Standards and Customization
