1000L Water Spray Test Chamber , IEC60529 IPX1 IPX2 IPX3 IPX4 Rate

1000L Water Spray Test Chamber , IEC60529 IPX1 IPX2 IPX3 IPX4 Rate

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE CSA RoHS ISO17025
Model Number: R-800

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: USD3000 ~ USD15000 / SET
Packaging Details: Wooden cases standard export package
Delivery Time: 18 days ( check if have stock)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 360 sets / quarter
Get Best Price Contact Now

Detail Information

Name: Water Spray Test Chamber Size: 900*900*900mm
Oscillating Tube Radius: 400mm Spraying Hole Diameter: φ0.4mm
Power Supply: 380v 50Hz Standard: IEC 60529, ISO 20653
High Light:

water immersion test equipment

,

water ingress testing equipment

Product Description

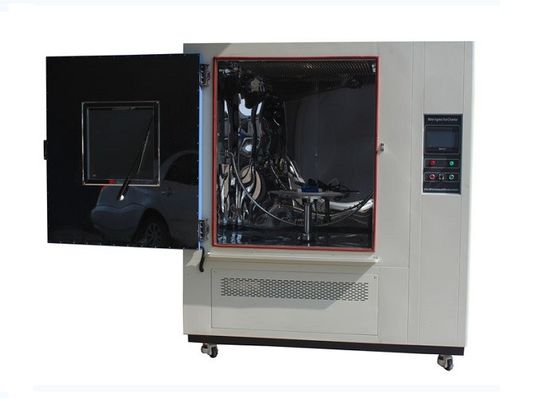

1000L Water Spray Test Chamber, IEC60529 IPX1 IPX2 IPX3 IPX4 Rate



Water ingress protection test chamber is used to perform the tests for testing the degree of protection provided by a product enclosure. The level of protection against water ingress is represented by an IP code. All LIB test chambers fully complies with IEC 60529 (IP Code standard) ,ISO20653and other international standards.



Our water ingress chambers have capabilities for IP testing included:

IP X1/X2 (drip test)

IP X3/X4 (spray test)

IP X5/X6 (jet tube test)

IPXX7/X8 (immersion test)

IP X9K (high pressure jet test)





Products Parameters



Model RD-800 RD-1200
Internal dimensions (mm) 900*900*900 1400*1400*1400
Overall dimensions (mm) 1020*1360*1560 1450*1450*2000
Volume 512 L 1728 L
Drip tray size 300*300*mm 600*600
Oscillating tube radius 350mm 600mm
Spraying hole diameter φ0.4mm
Oscillating tube range ±45°, ±60°, ±90°, ±180°(theoretical value)
Turntable rotation speed 1r/min, adjustable
Controller Programmable color display touch screen controller
Water pressure control Flow meter
Water supply system Build-in water tank, Automatic water supply, Water purification system
Exterior material Steel Plate with protective coating
Interior material SUS304 stainless steel
Standard IEC 60529, ISO20653
Environmental conditional 5℃~+40 ℃ ≤85% RH

Key Features

  • Protection against drip, spraying and splashing water
  • IPX1, IPX2, IPX3 and IPX4 tests can be performed.
  • Oscillating tube and drip tray
  • Programmable color display touch screen controller
  • Ethernet and USB
  • Automatic water supply
  • Large viewing window with wiper
  • Test chamber internal illumination
  • Safety protection



Standards:



IEC 60529

ISO 20653





Packages

  • Export Standard Wooden Box
  • Can be used for Sea, Air, Railway, Truck transportation
  • Package size: 3.4m³, gross weight: 410kgs



Service



  • Provide test solution

If you are end user, you have some test samples need environmental testing, you are not clear the tests, please contact us to get test solution. Will response

within 10 hours after got your requests.

If you are trading dealer, you got request from your customers, please let us know, our team will response you to send test solution for you.

If you want to participate in bidding, our company will send you full brochure with best price for you win the tender.



  • Send specification and quotation

If you are interested in some models, you want to get specifications and quote, don’t hesitate to contact our elite team to get brochure and best price.

Will offer you one-stop service including machine, transportation, and installation, calibration, and spare parts…etc



  • To be our agent

We welcome you to be our agent in countries to promote LIB test chambers to get win-win.Agent price, service

will support for you.



  • Warranty & After Sales Service

3 Years Warranty, Lifelong Follow-up Services. We have a professional after-sales team, if you have any questions during operation, we will supply solutions to you with 24 hours.
