Simulation Water Spray Test Chamber Water Temperature Testing Equipment
|Place of Origin:||China|
|Certification:||CE CSA RoHS ISO17025|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 Set|
|Price:||USD3000 ~ USD15000 / SET|
|Packaging Details:||Wooden cases standard export package|
|Delivery Time:||18 days ( check if have stock)|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||360 sets / quarter|
|IP Rate:||IPX1 IPX2 IPX3 IPX4 Rate||Test Specimen:||Led Lamp, Motorcycle, Outdoor Appliances|
|Usage:||Laboratory, University, Research Center||Warranty:||36 Months|
|Interior Material:||SUS 304# Stainless Steel||Exterior Material:||Steel Plate With Protective Coating|
water immersion test equipment,
water ingress testing equipment
Simulation Climate Water Tightness Waterproof Environmental Chamber Ipx1 Ipx2 Ipx3 Ipx4 Ipx5 Ipx6

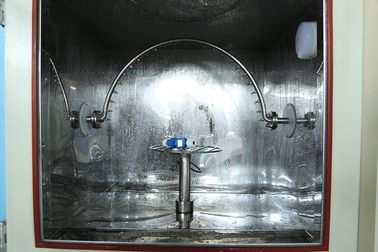

Simulation Climate Water Tightness Waterproof Environmental Chamber Ipx1 Ipx2 Ipx3 Ipx4 Ipx5 Ipx6 is used to perform the tests for testing the degree of protection provided by a product enclosure. The level of protection against water ingress is represented by an IP code. All LIB test chambers fully complies with IEC 60529 (IP Code standard) ,ISO20653and other international standards.
Our water ingress chambers have capabilities for IP testing included:
IP X1/X2 (drip test)
IP X3/X4 (spray test)
IP X5/X6 (jet tube test)
IPXX7/X8 (immersion test)
IP X9K (high pressure jet test)
|Name||Simulation Climate Water Tightness Waterproof Environmental Chamber Ipx1 Ipx2 Ipx3 Ipx4 Ipx5 Ipx6|
|Internal dimensions (mm)||900*900*900||1400*1400*1400|
|Overall dimensions (mm)||1020*1360*1560||1450*1450*2000|
|Volume||512 L||1728 L|
|Drip tray size||300*300*mm||600*600|
|Oscillating tube radius||350mm||600mm|
|Spraying hole diameter||φ0.4mm|
|Oscillating tube range||±45°, ±60°, ±90°, ±180°(theoretical value)|
|Turntable rotation speed||1r/min, adjustable|

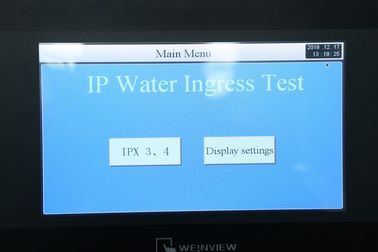

|Controller||Programmable color display touch screen controller|
|Water pressure control||Flow meter|
|Water supply system||Build-in water tank, Automatic water supply, Water purification system|
|Exterior material||Steel Plate with protective coating|
|Interior material||SUS304 stainless steel|
|Standard||IEC 60529, ISO20653|
|Environmental conditional||5℃～+40 ℃ ≤85% RH|
- Protection against drip, spraying and splashing water
- IPX1, IPX2, IPX3 and IPX4 tests can be performed.
- Oscillating tube and drip tray
- Programmable color display touch screen controller
- Ethernet and USB
- Automatic water supply
- Large viewing window with wiper
- Test chamber internal illumination
- Safety protection
- Export Standard Wooden Box
- Can be used for Sea, Air, Railway, Truck transportation
- Package size: 3.4m³, gross weight: 410kgs
- Provide test solution
If you are end user, you have some test samples need environmental testing, you are not clear the tests, please contact us to get test solution. Will response
within 10 hours after got your requests.
If you are trading dealer, you got request from your customers, please let us know, our team will response you to send test solution for you.
If you want to participate in bidding, our company will send you full brochure with best price for you win the tender.
- Send specification and quotation
If you are interested in some models, you want to get specifications and quote, don’t hesitate to contact our elite team to get brochure and best price.
Will offer you one-stop service including machine, transportation, and installation, calibration, and spare parts…etc
- To be our agent
We welcome you to be our agent in countries to promote LIB test chambers to get win-win.Agent price, service
will support for you.
- Warranty & After Sales Service
3 Years Warranty, Lifelong Follow-up Services. We have a professional after-sales team, if you have any questions during operation, we will supply solutions to you with 24 hours.
