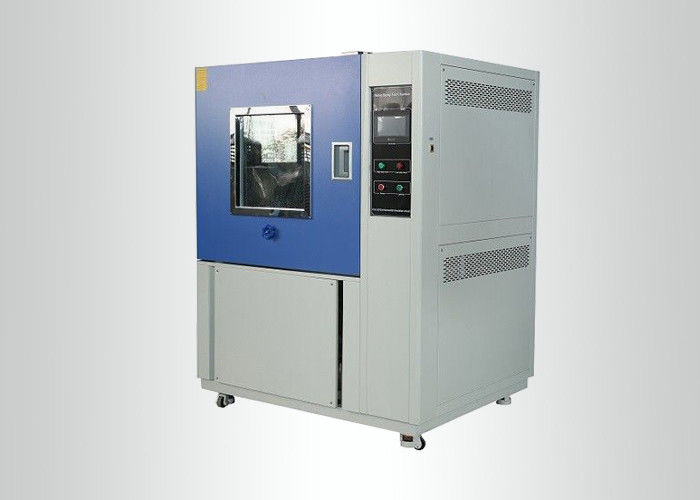

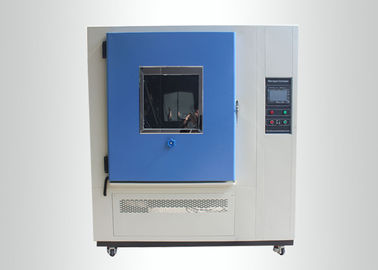

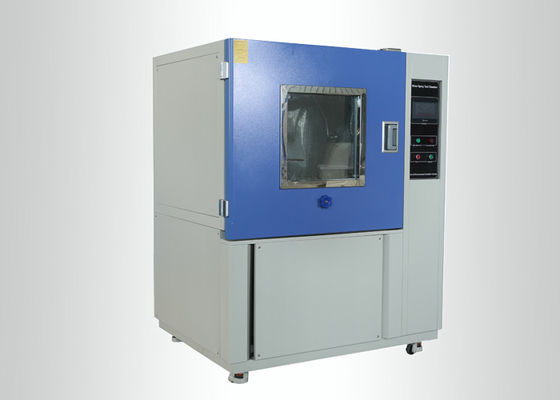

Programmable Water Spray Test Chamber Ingress Erosion Rain Test Chamber Ce Iso Certificate

Programmable Water Spray Test Chamber Ingress Erosion Rain Test Chamber Ce Iso Certificate

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE CSA RoHS ISO17025
Model Number: R-1200

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: USD3000 ~ USD15000 / SET
Packaging Details: Wooden cases standard export package
Delivery Time: 18 days ( check if have stock)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 360 sets / quarter
Get Best Price Contact Now

Detail Information

Interior Material: SUS 304# Stainless Steel Exterior Material: Steel Plate With Protective Coating
Controller : Programmable Color LCD Touch Screen Controller Trade Terms: FOB CFR CIF EXW DAP DDP
H.S. Code: 8514109000 Power: AC 380V±10% 50Hz
High Light:

water immersion test equipment

,

water ingress testing equipment

Product Description

Programmable Water Spray Test Chamber Ingress Erosion Rain Test Chamber Ce Iso Certificate

Ipx1 Ipx2 Ipx3 Ipx4 Ipx5 Ipx6 Ingress Erosion Rain Test Chamber Ce Iso Certificate



Description & Application



Ipx1 Ipx2 Ipx3 Ipx4 Ipx5 Ipx6 Ingress Erosion Rain Test Chamber is used to perform the tests for testing the degree of protection provided by a product enclosure. The level of protection against water ingress is represented by an IP code. All LIB test chambers fully complies with IEC 60529 (IP Code standard) ,ISO20653and other international standards.



Our water ingress chambers have capabilities for IP testing included:

IP X1/X2 (drip test)

IP X3/X4 (spray test)

IP X5/X6 (jet tube test)

IPXX7/X8 (immersion test)

IP X9K (high pressure jet test)





Products Parameters



Name Ipx1 Ipx2 Ipx3 Ipx4 Ipx5 Ipx6 Ingress Erosion Rain Test Chamber
Model RD-800
Internal dimensions (mm) 800*800*800
Overall dimensions (mm) 1020*1360*1560
Oscillating tube radius 400mm
Spraying hole diameter φ0.4mm
Hole spacing 50 mm
Swing angle of oscillating tube 0 to ±180° ( adjustable)
Turntable rotation speed 1r/min, or steeples speed regulating (optional)
Controller Programmable color display touch screen controller, PC Link with software, R-232 interface
Water pressure control Flow meter
Observation window Large viewing window with wiper
Water supply system Storage water tank, booster pump, Automatic water supply, Water purification system, Water saving
Safety protection device Electric leakage, short circuit, motor overheating, over-current protection
Exterior material Steel Plate with protective coating
Interior material SUS304 stainless steel
Power AC380V 50HZ
Standard IEC 60529



Key Features



  • Protection against drip, spraying and splashing water
  • IPX1, IPX2, IPX3 and IPX4 tests can be performed.
  • Oscillating tube and drip tray
  • Programmable color display touch screen controller
  • Ethernet and USB
  • Automatic water supply
  • Large viewing window with wiper
  • Test chamber internal illumination
  • Safety protectionProgrammable Water Spray Test Chamber Ingress Erosion Rain Test Chamber Ce Iso Certificate 0





Design and Construction



Test Area

Test area is made of stainless-steel.

Test chamber internal illumination.

Test specimen is placed and fixed on turntable.

Turntable rotation speed is 1r/min, which can be adjustable.

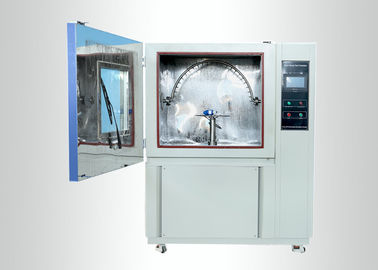

Oscillating Tube

Oscillating tube range can be reached to ±45°, ±60°, ±90°, ±180°

Diameter of spraying hole is φ0.4mm.

Hole spacing is 50 mm



Drip Tray

IPX1 IPX2 drip nozzle diameter is φ0.4mm.

Nozzle spacing is 20mm.

Water flow can be set on controller.



Control Panel

Programmable color display touch screen controller

Program: 99 groups in 99 sections

RS-232 / RS-485 interface

PC Link



Water Supply

Automatic water supply

Water purification system

Build in 86L water reservoir to ensure adequate water supply



​Certificate

Programmable Water Spray Test Chamber Ingress Erosion Rain Test Chamber Ce Iso Certificate 1





​Standards:

IEC 60529 ,ISO 20653



Packing & Shipping

Export Standard Wooden Box

Can be used for Sea, Air, Railway, Truck transportation

Package size: 3.4m³, gross weight: 410kgs



Service



Provide test solution

If you are end user, you have some test samples need environmental testing, you are not clear the tests, please contact us to get test solution. Will response

within 10 hours after got your requests.

If you are trading dealer, you got request from your customers, please let us know, our team will response you to send test solution for you.

If you want to participate in bidding, our company will send you full brochure with best price for you win the tender.



Send specification and quotation

If you are interested in some models, you want to get specifications and quote, don’t hesitate to contact our elite team to get brochure and best price.

Will offer you one-stop service including machine, transportation, and installation, calibration, and spare parts…etc



To be our agent

We welcome you to be our agent in countries to promote LIB test chambers to get win-win.Agent price, service

will support for you.



Warranty & After Sales Service

3 Years Warranty, Lifelong Follow-up Services. We have a professional after-sales team, if you have any questions during operation, we will supply solutions to you with 24 hours.
