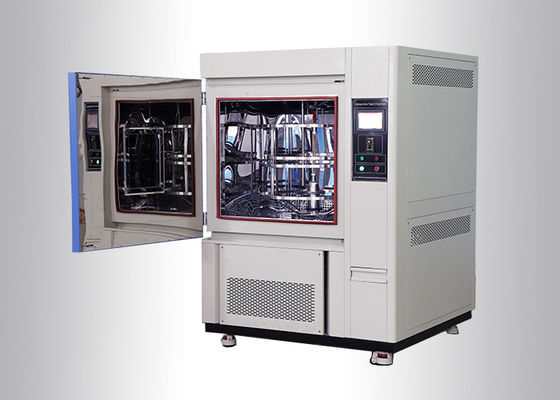

Water Cooled Xenon Test Chamber Arc Aging Controlled Climatic 500*600*700 Mm

Water Cooled Xenon Test Chamber Arc Aging Controlled Climatic 500*600*700 Mm

Product Details:

Place of Origin: china
Brand Name: LIB-Climatic Chamber
Certification: ISO 105-B02/B04/B06, ISO4892-2, ISO11341. AATCC TM16
Model Number: XL-500

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: USD4000 ~ USD9000 / SET
Packaging Details: Wooden cases standard export package
Delivery Time: 3-10 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 360 sets / quarter
Get Best Price Contact Now

Detail Information

Internal Dimensions D*W*H: 500*600*700 Mm Chamber Type: Flat Shelf
Irradiance Range: 100~1200 W/㎡ Irradiation Source: 1 Piece Of 1500w Air-cooled Xenon Lamp
Bandwidth Measurement: 280nm~800nm Relative Humidity Range: 50~98% R.H±5% RH
High Light:

xenon arc weatherometer


accelerated weathering chamber

Product Description

Water Cooled Xenon Lamp Xenon Arc Aging Controlled Climatic Chamber




Description & Application

Water Cooled Xenon Lamp Xenon Arc Aging Controlled Climatic Chamber Test Machine Iso17025 Calibration reproduces weathering damage by sunlight, temperature, humidity and water spray. Xenon weathering test chambers are utilized in textiles, dyes, leather, plastics, paints, coatings, automotive interior parts, electrotechnical products, color building materials. To perform weathering test, color fastness tests, aging test, hardening test, softening test, crack.

Main Technical Parameter
Model XL-500
Internal dimensions D*W*H 500*600*700 mm
Overall dimensions D*W*H 1200*1150*1700 mm
Chamber Type Flat shelf
Irradiation Source 1 piece of 1500w air-cooled xenon lamp with inner quartz and outer borosilicate filter
Irradiance Range 100~1200 W/㎡
Bandwidth Measurement 280nm~800nm
Chamber Temperature Range Ambient ~100℃±2°C
Black Panel Temperature BPT 35 ~85℃±2°C
Relative Humidity Range 50~98% R.H±5% RH
Water Spray cycle 1~9999H59M, adjustable
Controller programmable color display touch screen controller, PC Link, R-232 interface
Radiometer Tolerance: ±5%
Heating system Nichrome heater
Cooling system Mechanical compression refrigeration system
Refrigerating unit French TECUMSEH compressor
Humidification system External isolation, stainless steel surface evaporation humidifier
Air circulation Centrifugal wind fan
Water supply system Automatic water supply; Water purification system
Safety device

Humidifier dry-combustion protection; over-temperature protection;

over-current protection; Refrigerant high-pressure protection; Water shortage protection,

Earth leakage protection;

Interior material SUS304 stainless steel
Exterior material Steel Plate with protective coating
Thermal insulation Polyurethane foam
Observation window Interior lighting , double-layer thermo stability silicone rubber sealing
Power Supply AC380V 50HZ
Standard ISO 105-B02/B04/B06, ISO4892-2, ISO11341. AATCC TM16, TM169, ASTM G155-1/155-4, JIS L0843, SAEJ1960/1885, JASOM346, PV1303, IEC61215, IEC62688


Key Features
  1. 4500 W water-cooled Xenon Lamp
  2. Programmable color display touch screen controller
  3. Ethernet & USB
  4. Measurement and control of Irradiance: 340nm, 420nm or 300-400 nm, 280-800nm
  5. Measurement and control of Black Panel Temperature( BPT)
  6. Measurement and control of Chamber Temperature
  7. Measurement and control of Chamber relative humidity
  8. Automatic water spraying system
  9. Build-in water reservoir and automatic water supply
  10. Large viewing window in door
  11. Safety protection system

Water Cooled Xenon Test Chamber Arc Aging Controlled Climatic 500*600*700 Mm 0Water Cooled Xenon Test Chamber Arc Aging Controlled Climatic 500*600*700 Mm 1


Design and Construction


Test Area and Sampler Holder

Ozone test chamber is for testing of elastomers.

Test area is made of stainless-steel.

Equipped with dynamic sample holder.

(Static and dynamic holder as option)


Temperature Control

Mechanical compression refrigeration system

Refrigerating unit is French TECUMSEH compressor.

Environment friendly refrigerant

Temperature range: 0℃~100℃


Humidity Control

External isolation, stainless steel surface evaporation humidifier

Humidity range: 30% - 98%R.H


Ozone Generator

Ozone test chamber equipped with ozone generator to supply

ozone gas.

Automatic control and supply ozone gas.

Ozone concentration: 1~1000PPHM (Adjusted).


Control Operation

Programmable color display touch screen controller

Program: 100 groups in 999 sections; R-232 interface, PC Link

Measure, control and display Temperature, humidity and Ozone concentration.

Clamps tensile stretch can be sent on controller.


Ozone Exhaust Device

After completed ozone testing, click “Exha” button on controller

to exhaust ozone from test area to this exhaust device.

This absorbs ozone, to make workplace clean and safe.


Safety Protection

Humidifier dry-combustion protection

Over-temperature protection,

Over-current protection

Refrigerant high-pressure protection switch

Earth leakage protection




ISO 105-B02/B04/B06




ASTM G155-1/155-4

JIS L0843

SAEJ1960/1885, JASOM346,






Package and Shipping

Packed with export standard wooden case.

Strong packages can be used for sea, air, railway, truck transport and multimodal transport.

Quick ship, some models are in stock, ship in 1-3 days.

Provide door to door service for customers.


LIB test chambers accept and approved by CE, CSA, RoHS, TUV, SGS and ISO17025 calibration


Our Services
Pre-Sales Service
* Inquiry and consulting support.
* Offering quotation and specifications.
* Provide test solutions.
* Visiting our factory.
After-Sales Service
* 3 Years Warranty, Lifelong Follow-up Services.
* Training how to install and operate the machine.
* Training how to maintain the machine.
* Response within 24 hours once got questions from customers.
* Send spare parts within 2 days after got notice.
* Engineers available to service machinery overseas to install and commissioning.
