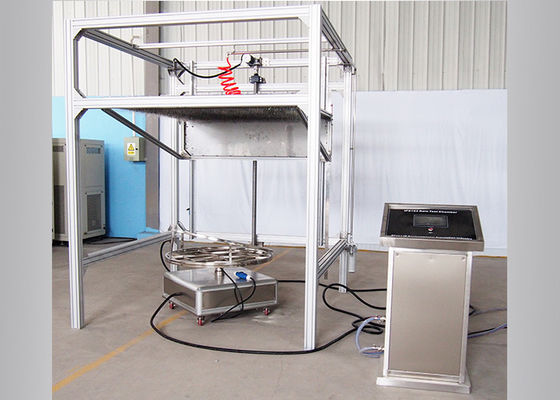

Custom IPX1 IPX2 Water Spray Test Chamber No Housing For Laboratory

Custom IPX1 IPX2 Water Spray Test Chamber No Housing For Laboratory

Product Details:

Place of Origin: china
Brand Name: LIB-Test Chamber
Certification: CE, CSA, RoHS, TUV, SGS ,IEC 60529
Model Number: IPX12 No housing test chamber

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: USD2100 ~ USD9000 / SET
Packaging Details: Wooden cases standard export package
Delivery Time: 3-10 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 360 sets / quarter
Get Best Price Contact Now

Detail Information

Power Supply: AC380V 50HZ Controller: PLC
Water Pressure Control: Flow Meter Interior Material: SUS304 Stainless Steel
Standard: IEC 60529 Power: AC380V 50HZ
High Light:

water immersion test equipment


high pressure test chamber

Product Description


Custom IPX1 IPX2 Water Dripping Test Apparatus for Laboratory


Low price, customizable, easy to observe test pieces, test pieces diversification



Key Feature
Description: The water ingress test chamber is a device that can simulate all kinds of environments, such as sprinkling and spray test during the transportation and use, to realistically detect the waterproof performance of various products.
Application: The water ingress protection chamber is suitable for testing the waterproof performance of automobile luminaire, wiper performance, waterproof strip, locomotive instrument and low voltage electrical enclosure.
IP Code: IPX1X2 drip test chamber, IPX3X4 spray test chamber, IPX5X6 jet tube test chamber, IPX7X8 immersion test chamber, IPX9k high pressure jet test chamber.
Notes: This model test laboratory

Main Technical Parameter
There are many models, can also customize it.

Name No Housing Rain Spray Test Chamber
Size IPX1X2 spray test chamber
Controller Programmable color display touch screen controller, PC Link with software, R-232 interface
Water pressure control Flow meter
Observation window Large viewing window with wiper
Water supply system Storage water tank, booster pump, Automatic water supply, Water purification system, Water saving
Safety protection device Electric leakage, short circuit, motor overheating, over-current protection
Exterior material Steel Plate with protective coating
Interior material SUS304 stainless steel
Power AC380V 50HZ
Standard IEC 60529

Custom IPX1 IPX2 Water Spray Test Chamber No Housing For Laboratory 0
Standard Features
Protection against drip, spraying and splashing water
IPX1, IPX2, IP X3 and IP X4 tests can be performed.
Oscillating tube and drip tray.
Programmable color display touch screen controller
Automatic water supply
Large viewing window with wiper
Test chamber internal illumination

Custom IPX1 IPX2 Water Spray Test Chamber No Housing For Laboratory 1


Package and Shipping

Packed with export standard wooden case.

Strong packages can be used for sea, air, railway, truck transport and multimodal transport.

Quick ship, some models are in stock, ship in 1-3 days.

Provide door to door service for customers.


LIB test chambers accept and approved by CE, CSA, RoHS, TUV, SGS and ISO17025 calibration


Our Services
Pre-Sales Service
* Inquiry and consulting support.
* Offering quotation and specifications.
* Provide test solutions.
* Visiting our factory.
After-Sales Service
* 3 Years Warranty, Lifelong Follow-up Services.
* Training how to install and operate the machine.
* Training how to maintain the machine.
* Response within 24 hours once got questions from customers.
* Send spare parts within 2 days after got notice.
* Engineers available to service machinery overseas to install and commissioning.
