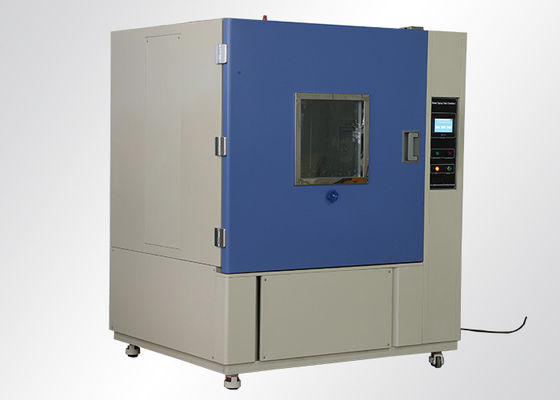

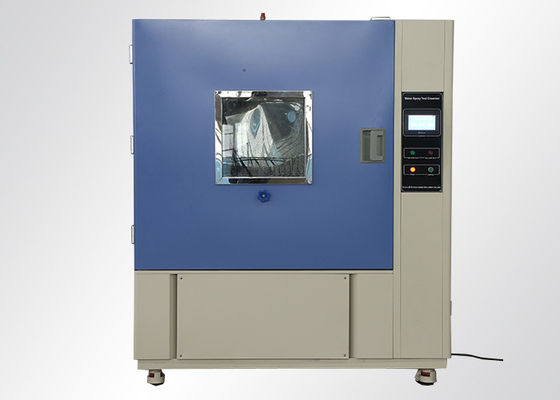

Water Tightness Rain Erosion Test Equipment With ISO 20653 Standard

Water Tightness Rain Erosion Test Equipment With ISO 20653 Standard

Product Details:

Place of Origin: china
Brand Name: LIB
Certification: IEC60529,CE,RoHS,
Model Number: R-800

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: USD3890 ~ USD15000 / SET
Packaging Details: Wooden cases standard export package
Delivery Time: 18 days ( check if have stock)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 360 sets / quarter
Get Best Price Contact Now

Detail Information

Oscillating Tube Radius: 400mm Swing Angle Of Oscillating Tube: 0 To ±180° ( Adjustable)
Nominal Power: 3500W Usage: Universal Testing Machine,Auto Testing Machine,Textile Testing Instrument,Rain Water Spray Test Chamber,Lab And Medical Test
Warranty: 3 Years Controller: Programmable Color Display Touch Screen Controller, PC Link With Software, R-232 Interface
Description: Rain Test Chamber Product Name: Contolled Water Tightness Rain Erosion Test Equipment
High Light:

high pressure test chamber

,

water ingress testing equipment

Product Description

Contolled Water Tightness Rain Erosion Test Equipment For ISO 20653 Standard

Description of Rain Erosion Test Equipment

IPX-1 Protected against falling water Equivalent to 3-5mm rainfall per minute for a duration of 10 minutes.Unit is placed in its normal operating position.
IPX-2 Protected against falling water when tilted up to 15 degrees - Same as IPX-1 but unit is tested in 4 fixed positions -tilted 15 degrees in each direction from normal operating position.



Contolled Water Tightness Rain Erosion Test Equipment For ISO 20653 Standard is used to test automobile and motorcycle spare parts, such as car rear view mirror, car audio, automotive electronics, automotive lighting, automotive lamps, motorcycle lamps,motorcycle rear view mirror; Electrical and electronic products, watches, hardware, outdoor lighting, electronic communication, locomotives, instrumentation, aerospace and waterproof strip industries. Interior testing chamber can be custom made according to customers’ special applications.



Our water ingress chambers have capabilities for IP testing included:

IP X1/X2 (drip test)

IP X3/X4 (spray test)

IP X5/X6 (jet tube test)

IPXX7/X8 (immersion test)

IP X9K (high pressure jet test)



Main Technical Parameter of Rain Erosion Test Equipment

Model RD-800 RD-1200
Internal dimensions (mm) 800*800*800 1200*1200*1200
Overall dimensions (mm) 1020*1360*1560 1450*1450*2000
Oscillating tube radius 400mm 600mm
Spraying hole diameter φ0.4mm
Hole spacing 50 mm
Swing angle of oscillating tube 0 to ±180° ( adjustable)
Turntable rotation speed 1r/min, or steeples speed regulating (optional)
Controller Programmable color display touch screen controller, PC Link with software, R-232 interface
Water pressure control Flow meter
Observation window Large viewing window with wiper
Water supply system Storage water tank, booster pump, Automatic water supply, Water purification system, Water saving
Safety protection device Electric leakage, short circuit, motor overheating, over-current protection
Exterior material Steel Plate with protective coating
Interior material SUS304 stainless steel
Power AC380V 50HZ
Standard IEC 60529



Key Features of Rain Erosion Test Equipment



Protection against drip, spraying and splashing water

IPX1, IPX2, IP X3 and IP X4 tests can be performed.

Oscillating tube and drip tray.

Programmable color display touch screen controller

Automatic water supply

Large viewing window with wiper

Test chamber internal illumination

IEC60529 standard





Design and Construction of Rain Erosion Test Equipment

Test Area
Test area is made of stainless-steel.
Test chamber internal illumination.
Test specimen is placed and fixed on turntable.
Turntable rotation speed is 1r/min, which can be adjustable.



Oscillating Tube

Oscillating tube range can be reached to ±45°, ±60°, ±90°, ±180°

Diameter of spraying hole is φ0.4mm.

Hole spacing is 50 mm




Drip Tray

IPX1 IPX2 drip nozzle diameter is φ0.4mm.

Nozzle spacing is 20mm.

Water flow can be set on controller.



Water Supply

Automatic water supply

Water purification system

Build in 86L water reservoir to ensure adequate water supply



Control Panel

Programmable color display touch screen controller

Program: 99 groups in 99 sections

RS-232 / RS-485 interface

PC Link




Safety Protection

Over temperature protection,

Water shortage protection

Over current protection

Earth leakage protection

Water Tightness Rain Erosion Test Equipment With ISO 20653 Standard 0



FAQ
1. Are your company a trading one or a factory?
Factory ,200years focusing on test instruments field,11 years exporting experience.



2. After an order is placed, when to deliver?
Generally about 20 workdays, If we have finished products, we can arrange shipment within 3 workdays.
Please be aware that our production lead times depend on specific items and item quantities.



3. What about the warranty with after - sales services?
36 months warranty.
After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.



4. What about the services and product' quality?
Service: OEM service,Design service,Buyer lable service.
Quality: Each instruments must be carried out 100% quality examination and test, the finished products must through a third party calibration institutions before shipping and delivery goods.



5. How to install and training?
If the products is easy to install and training, customers can learn the operation and maintenance manual to installation and use.
If the products is hard to use, customers can come LIB factory to learn how to installation and use. And our engineers have a passport, we can go to overseas.



Packing & Shipping

  • Export Standard Wooden Box
  • Can be used for Sea, Air, Railway, Truck transportation



Service

  • Provide test solution

If you are end user, you have some test samples need environmental testing, you are not clear the tests, please contact us to get test solution. Will response

within 10 hours after got your requests.

If you are trading dealer, you got request from your customers, please let us know, our team will response you to send test solution for you.

If you want to participate in bidding, our company will send you full brochure with best price for you win the tender.



  • Send specification and quotation

If you are interested in some models, you want to get specifications and quote, don’t hesitate to contact our elite team to get brochure and best price.

Will offer you one-stop service including machine, transportation, and installation, calibration, and spare parts…etc



  • To be our agent

We welcome you to be our agent in countries to promote LIB test chambers to get win-win.Agent price, service

will support for you.



  • Warranty & After Sales Service

3 Years Warranty, Lifelong Follow-up Services. We have a professional after-sales team, if you have any questions during operation, we will supply solutions to you with 24 hours.
