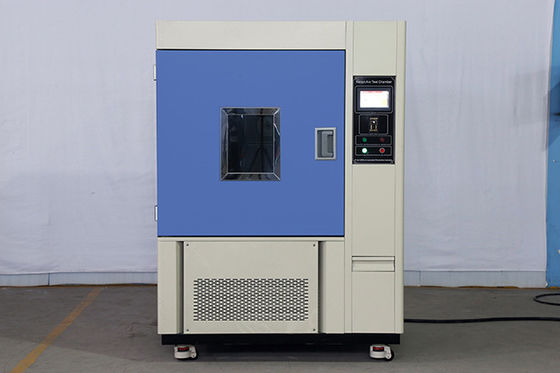

Automatic Water Supply Xenon Arc Weatherometer Instruments Easy Operation

Automatic Water Supply Xenon Arc Weatherometer Instruments Easy Operation

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE,RoHS,ISO17025
Model Number: XL-S-500

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: USD7800 ~ USD19800 / SET
Packaging Details: Wooden cases standard export package
Delivery Time: 18 days ( check if have stock)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 360 sets / quarter
Get Best Price Contact Now

Detail Information

Name: Xenon Arc Weathering Instruments Irradiance Range: 35~150 W/㎡
Temperature Range: Ambient ~100℃±2°C BPT Temperature: BPT +35 To +120 ℃
Black Panel Temperature: BPT 35 ~85℃±2°C
High Light:

xenon arc weatherometer

,

accelerated weathering chamber

Product Description

Automatic Water Supply Xenon Arc Weatherometer Instruments Easy Operation

Material Weathering Xenon Arc Weathering Instruments | Xenon Test Weatherometer

Standard of Xenon Test Equipment For Colour Fastness

ISO 105-B02/B04/B06

ISO4892-2

ISO11341

AATCC TM16

TM169

ASTM G155-1/155-4

JIS L0843

SAEJ1960/1885

JASOM346

IEC61215

IEC62688

Advantage of Xenon Test Equipment For Colour Fastness

●custom-made

●SUS 304 stainless-steel with thickness 2.5 mm,More durable.

●Easy to operate,Multi-language to choose

●Measurement and control of Irradiance 280-800 nm

●Water filtration system,water conservation

Description of Xenon Test Equipment For Colour Fastness

Material Weathering Xenon Arc Weathering Instruments Xenon Test Weatherometerare used to induce property changes associated with the effects of sunlight, moisture, and heat. The property changes include cracking, color fading and yellowing could be simulated just in few days and weeks.



Products Parameters of Xenon Test Equipment For Colour Fastness



Name Material Weathering Xenon Arc Weathering Instruments
Model XL-S-500
Internal dimensions D*W*H 500*600*700 mm
Overall dimensions D*W*H 1200*1150*1700 mm
Chamber Type Flat shelf
Irradiation Source 1 piece of 1500w air-cooled xenon lamp with inner quartz and outer borosilicate filter
Irradiance Range 35~150 W/㎡
Bandwidth Measurement 300nm~420nm
Chamber Temperature Range Ambient ~100℃±2°C
Black Panel Temperature BPT 35 ~85℃±2°C
Relative Humidity Range 50~98% R.H±5% RH
Water Spray cycle 1~9999H59M, adjustable
Controller programmable color display touch screen controller, PC Link, R-232 interface
Radiometer Tolerance: ±5%
Heating system Nichrome heater
Cooling system Mechanical compression refrigeration system
Refrigerating unit French TECUMSEH compressor
Humidification system External isolation, stainless steel surface evaporation humidifier
Air circulation Centrifugal wind fan
Water supply system Automatic water supply; Water purification system
Interior material SUS304 stainless steel
Exterior material Steel Plate with protective coating
Thermal insulation Polyurethane foam
Observation window Interior lighting , double-layer thermo stability silicone rubber sealing
Power Supply AC380V 50HZ



Key Features of Xenon Test Equipment For Colour Fastness

●1 piece of 1500w air-cooled xenon lamp with inner quartz and outer borosilicate filter
●Programmable color display touch screen controller to control and display test parameters
●Measurement and control of Irradiance 300-420 nm
●Measurement and control of Black Panel Temperature( BPT)
●Measurement and control of Chamber Temperature
●Measurement and control of Chamber humidity
●Water spray system with build-in 50L water reservoir
●Control panel located on right side of test chamber
●Safety protection system
●380V, 50Hz



Design and Construction of Xenon Test Equipment For Colour Fastness

Test Area and Sample Holder

Test area is made of stainless-steel.
Flat type workroom
A shelf for placing test specimens



Control Panel

Xenon Test Chambers are equipped with full colorful touch screen controller which makes the operation super convenient and easy.

The programing is as easy as only click few buttons, you can also save the programs and name them to save time for future use.



Viewing Window

Large viewing window

Can observe samples during testing



Irradiation Source - Xenon Arc Lamp
Irradiation Source with 1 piece of 6500 W water-cooled xenon lamp with inner quartz and outer borosilicate filter
Average Lamp Life is 1600hours.

Automatic Water Supply Xenon Arc Weatherometer Instruments Easy Operation 0



Safety Device



●Humidifier dry-combustion protection

●over-temperature protection
●over-current protection

●Refrigerant high-pressure protection

●Water shortage protection
●Earth leakage protection



Packages

▶Packed with export standard wooden case.
▶Strong packages can be used for sea, air, railway, truck transport and multimodal transport.

▶Quick ship, some models are in stock, ship in 1-3 days.

▶Package size: 3.9 m³, gross weight: 680kg





Service



Consult Service
Provide test solution
If you are end user, products need environmental testing, please contact us to get test solution and quote. Will response within 10 hours after got your requests.

If you are trading dealer, you got requests from your customers, please let us know, our team will response within 10 hours to send solution for you.

If you want to participate in bidding, our company will send you full brochure with best price for you win the tender.



After Sales Service
Warranty & After Sales Service
3 Years Warranty, Lifelong Follow-up Services. We have a professional after-sales team, if you have any questions during operation, we will supply solutions to you with 24 hours.

RFQ

Q:Do you have an agent?
A:Currently we have agents in Europe, Asia, North America, South Africa, and can provide sales and technical services.



Q:Can we come to your factory to study and train?
A:Welcome to our factory for study and training, we provide this service free of charge.



Q:Can you send engineers to our company?
A:Yes, sure. We will communicate in advance to facilitate the bringing of tools and components



Q:Can I install and debug calibration on site?
A:Yes, we can send technicians and engineers to the customer site for installation, commissioning and calibration.



Q:What are the modes of transportation?
A:Air, sea, rail, multimodal transport.



Q:What is the packaging?
A:Standard export wooden box packaging, solid and firm.



Q:How do you calibrate the equipment?
A:We have our own calibration and third-party calibration such as ISO17025



Q:Is there a door to door service?
A:Yes, there is door to door service. We will arrange a one-stop service.



Q:What are the payment methods?
A:Payment methods are T/T, Paypal, L/C, VISA
