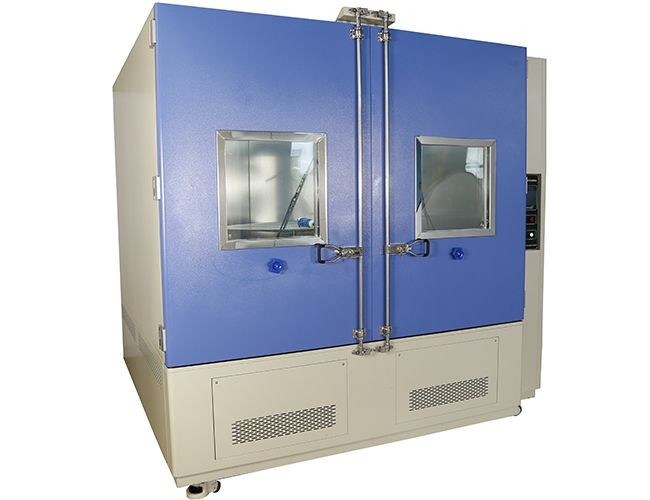

IPX9K Environmental Testing Machine Environmental Test System Instrument

IPX9K Environmental Testing Machine Environmental Test System Instrument

Product Details:

Place of Origin: china
Brand Name: LIB
Certification: RoHS,CE,IEC60529
Model Number: R9K-1200

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: USD2290 ~ USD8900 / SET
Packaging Details: Export Standard Wooden Box
Delivery Time: 3-14 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 360 sets / quarter
Get Best Price Contact Now

Detail Information

Water Spray Temperature: Ambient ~ 88℃ (Adjustable) Water Spray Angle: 0°,30°,60°,90°
Power Supply: 380V 50HZ, Three-phase Five-wire Water Flow Rate: 14L-16L/min
Spray Range: 30° ± 5°(Single Hole) Warranty: 3 Years;life-long Maintenance,
High Light:

high pressure test chamber

,

water ingress testing equipment

Product Description

IPX9K Environmental Testing Machine Environmental Test System Instrument

IPX9K Environmental Testing Machine , IP Environmental Test System Instrument

Standard of IPX9K Environmental Testing Machine

●IEC60529

●GB4208

●DIN40050-9

●IS020659

●EN 60529

●DIN 40050-9



Description of IPX9K Environmental Testing Machine

IPX9K Environmental Testing Machine , IP Environmental Test System Instrument .The unit under test is subjected to high pressure (80 – 100 bar), high temperature (+80°C) water jets at a flow rate of 14 – 16 L/min.

The test nozzle is held at a distance of 100 – 150 mm in each of four positions (0°, 30°, 60° & 90°) and the UUT is sprayed for 30 seconds in each position whilst rotating on a turntable at a speed of 5 rpm.



 Main Technical Parameter of IPX9K Environmental Testing Machine

Model

R9K-1200
Name IPX9K Environmental Testing Machine , IP Environmental Test System Instrument

Internal dimensions (mm)

1000*1200*1000 D*W*H

Overall dimensions (mm)

1250* 1700* 2050 D*W*H

Water Spray Temperature

ambient ~ 88℃ (Adjustable)

Water Spray Angle

0°,30°,60°,90°

Spray Nozzle

Four, 30 seconds each position

Spray Range

30° ± 5°(Single hole); Space 100-150mm

Distance from water spraying to specimens

10~15cm

Water Pressure

8000-10000 Kpa (adjustabl)

Water Flow Rate

14L-16L/min

Testing Platform Speed

5 ±1 r.p.m

Test Platform height

200-450mm, adjustable

Test Platform diameters

600mm

Load

≤100kg

Controller

Programmable color LCD touch screen controller



PC Link with software, RS-232 interface

Pressure meter Alarm function

Power protection, timing (to be automatic stop), water protection, motor overheating protection, water temperature overheating automatic drainage, water function

Temperature Sensor

PTR Platinum Resistance PT100Ω/MV A-class

Heater

Nichrome heater

Interior material

SUS304 stainless steel

Exterior material

Steel Plate with protective coating

Power Supply

380V 50HZ, Three-phase five-wire

Operating environment

Grading, no corrosive gas, avoid direct sunlight ; Temperature: +5~+35 C; Humidity: 45~85%RH



Standard Features of IPX9K Environmental Testing Machine

●Protection against high pressure jet test.

●IP X9K can be performed.

●Programmable color display touch screen controller

●Automatic water supply

●Large viewing window with wiper

●Test chamber internal illumination

●Power supply 380V 50Hz



Design and Construction of IPX9K Environmental Testing Machine



Test Area
Test area is made of stainless-steel.
Enclosure to be tested is placed on turntable.
Spraying holes: 4 holes in different angle.
Spraying hole with angle of 0°, 30°, 60°, 90°.
Distance from water spraying to specimens: 10~15cm
8000-10000kpa water pressure range

Control Panel
Programmable color display touch screen controller
Program: 99 groups in 99 sections
RS-232 / RS-485 interface
PC Link
Showing Time, Temperature, on/off switch, flow meter, pressure meter

Water Supply
Automatic water supply, water purification system
Build in 90L water reservoir to ensure adequate water supply

Large Viewing Window
Interior lighting
Window coated with conducting film to protect it from frost.
Size is 450*550mm W*H

IPX9K Environmental Testing Machine Environmental Test System Instrument 0



Waterproof Rating

IPX-1

Protected against falling water Equivalent to 3-5mm rainfall per minute for a duration of 10 minutes.Unit is placed in its normal operating position.

IPX-2

Protected against falling water when tilted up to 15 degrees - Same as IPX-1 but unit is tested in 4 fixed positions -tilted 15 degrees in each direction from normal operating position

IPX-3

Protected against spraying water - Water spraying up to 60 degrees from vertical at 10 liters/min at a pressure of 80-100kN/m2 for 5 min.

IPX-4

Protected against splashing water - Same as IPX-3 but water is sprayed at all angles.

IPX-5

Protected against water jets - Water projected at all angles through a 6.3mm nozzle at a flow rate of 12.5 liters/min at a pressure of 30kN/m2 for 3 minutes from a distance of 2.5 meters.

IPX-6

Protected against heavy seas - Water projected at all angles through a 12.5mm nozzle at a flow rate of 100 liters/min ata pressure of 100kN/m2 for 3 minutes from a distance of 2.5 meters.

IPX-7

Protected against water immersion - Immersion for 30 minutes at a depth of 1 meter.

IPX-8

Protected against water submersion - The equipment is suitable for continual submersion in water under conditions which are identified by the manufacturer.

IPX9K

Adopts high pressure pump, spraying style heating device,4 Spray Nozzle,30S each position.



Our Service

36 months Warranty, Lifelong Follow-up Services

We have a professional after-sales team, if you have any questions during operation, we will supply solutions to you with 24 hours.

Warranty condition:
(1). Our company will repair the product, if the product, the material of the parts, the design and manufacturing of the products raised hardware problems caused by product itself rather than human error within three years warranty period since the date of dispatching by the customer.
(2). Our company repairs the products, but will collect the basic costs of the spare parts after the warranty period, but service is free always.



How to Service?
1,At first, our test chambers are produced based on 20 years product lifetime. So will not easy to break down. Normally once test chambers have problems, we judge the problems, and send spare parts to our customers, and teach them how to change new parts on by email or video. Within 3 years, all spare parts and shipping cost (by DHL, TNT, and FedEx) paid by LIB.

2, If customer need to send our engineers to customers' work place, the customer company only need pay the ticket accommodation to our Engineers, service is for free.

3, If Products still can't use after our engineers repair, we will produce a new test chamber (same as the old one) to our customers with no charge.



Other Pruducts

More products welcome to consult!
Our main products included temperature and climate test chambers, corrosion chambers, weathering testers, IP dust and rain chambers, ozone test chamber, noxious gas SO2 H2S chamber, walk-in chambers.

Industrial Drying Oven  Walk In Environmental Chamber
Benchtop Environmental Chamber Water Spray Test Chamber 
Constant Humidity Chamber  Xenon Test Chamber
