Automatic Water Spray Test Chamber Rain Test Chamber 14L - 16L/Min Water Flow Rate

Automatic Water Spray Test Chamber Rain Test Chamber 14L - 16L/Min Water Flow Rate

Product Details:

Place of Origin: china
Brand Name: LIB
Certification: RoHS,CE,IEC60529
Model Number: R9K-1200

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: USD 14000 ~ USD37000 / SET
Packaging Details: Export Standard Wooden Box
Delivery Time: 3-14 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 360 sets / quarter
Get Best Price Contact Now

Detail Information

Water Spray Temperature: Ambient ~ 88℃ (Adjustable) Water Spray Angle: 0°,30°,60°,90°
Power Supply: 380V 50HZ, Three-phase Five-wire Water Flow Rate: 14L-16L/min
Spray Range: 30° ± 5°(Single Hole) Description: Rain Test Chamber
High Light:

high pressure test chamber

,

water ingress testing equipment

Product Description

Automatic Water Spray Test Chamber Rain Test Chamber 14L - 16L/Min Water Flow Rate

High Pressure High Temperature Jetproof ISO20653 IPX9K IP69K IP Testing Equipment



Description of IPX9K IP69K IP Testing Equipment

High Pressure High Temperature Jetproof ISO20653 IPX9K IP69K IP Testing Equipment uses high-pressure steam cleaning and pressure washing to evaluate how electronic components and product casings protect against fluids and foreign objects. A combination of heat, water ingress and chemical detergents are used to measure the effect of degradation on seals, connectors, wires and mounting equipment.



 Main Technical Parameter of IPX9K IP69K IP Testing Equipment

Model

R9K-1200
Name High Pressure High Temperature Jetproof ISO20653 IPX9K IP69K IP Testing Equipment

Internal dimensions (mm)

1000*1200*1000 D*W*H

Overall dimensions (mm)

1250* 1700* 2050 D*W*H

Water Spray Temperature

ambient ~ 88℃ (Adjustable)

Water Spray Angle

0°,30°,60°,90°

Spray Nozzle

Four, 30 seconds each position

Spray Range

30° ± 5°(Single hole); Space 100-150mm

Distance from water spraying to specimens

10~15cm

Water Pressure

8000-10000 Kpa (adjustabl)

Water Flow Rate

14L-16L/min

Testing Platform Speed

5 ±1 r.p.m

Test Platform height

200-450mm, adjustable

Test Platform diameters

600mm

Load

≤100kg

Controller

Programmable color LCD touch screen controller



PC Link with software, RS-232 interface

Pressure meter Alarm function

Power protection, timing (to be automatic stop), water protection, motor overheating protection, water temperature overheating automatic drainage, water function

Temperature Sensor

PTR Platinum Resistance PT100Ω/MV A-class

Heater

Nichrome heater

Interior material

SUS304 stainless steel

Exterior material

Steel Plate with protective coating

Power Supply

380V 50HZ, Three-phase five-wire

Operating environment

Grading, no corrosive gas, avoid direct sunlight ; Temperature: +5~+35 C; Humidity: 45~85%RH



Standard of IPX9K IP69K IP Testing Equipment

●IEC60529

●GB4208

●DIN40050-9

●IS020659

●EN 60529

●DIN 40050-9

Standard Features of IPX9K IP69K IP Testing Equipment

●Protection against high pressure jet test.

●IP X9K can be performed.

●Programmable color display touch screen controller

●Automatic water supply

●Large viewing window with wiper

●Test chamber internal illumination

●Power supply 380V 50Hz



Design and Construction of IPX9K IP69K IP Testing Equipment



Test Area
Test area is made of stainless-steel.
Enclosure to be tested is placed on turntable.
Spraying holes: 4 holes in different angle.
Spraying hole with angle of 0°, 30°, 60°, 90°.
Distance from water spraying to specimens: 10~15cm
8000-10000kpa water pressure range

Control Panel
Programmable color display touch screen controller
Program: 99 groups in 99 sections
RS-232 / RS-485 interface
PC Link
Showing Time, Temperature, on/off switch, flow meter, pressure meter



Water Supply
Automatic water supply, water purification system
Build in 90L water reservoir to ensure adequate water supply



Large Viewing Window
Interior lighting
Window coated with conducting film to protect it from frost.
Size is 450*550mm W*H

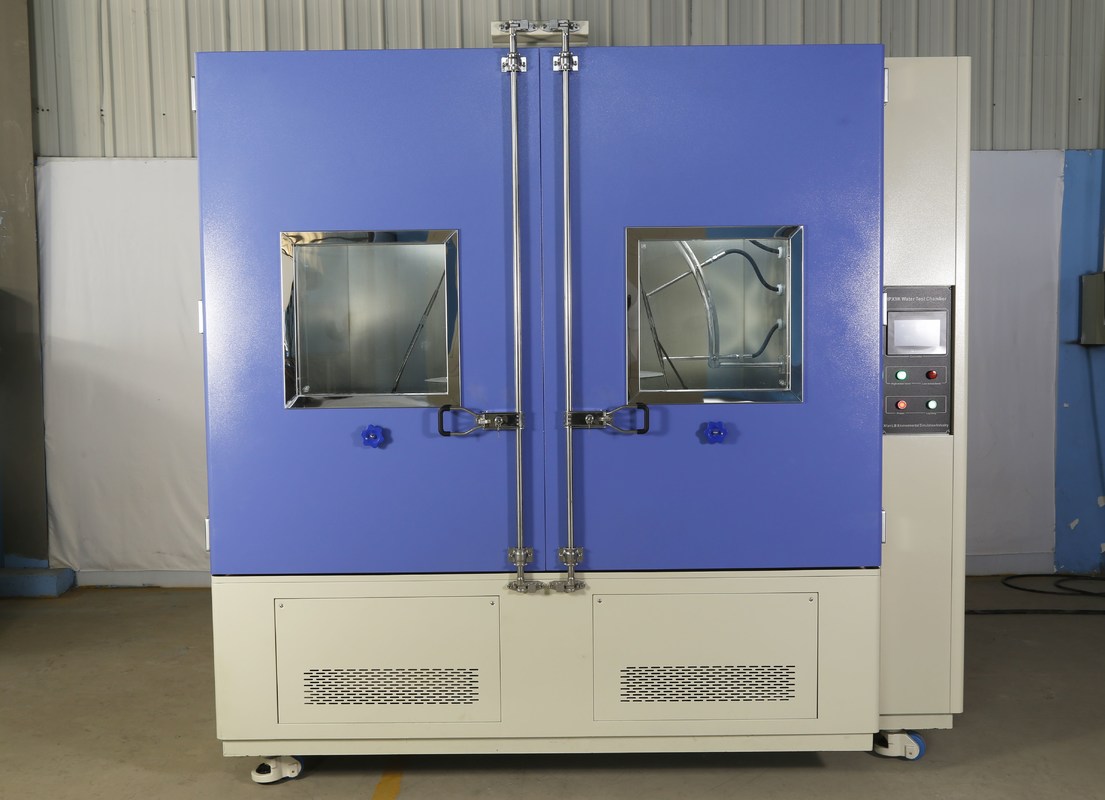

Automatic Water Spray Test Chamber Rain Test Chamber 14L - 16L/Min Water Flow Rate 0



LIB Service

36 months Warranty, Lifelong Follow-up Services

We have a professional after-sales team, if you have any questions during operation, we will supply solutions to you with 24 hours.

Warranty condition:


(1). Our company will repair the product, if the product, the material of the parts, the design and manufacturing of the products raised hardware problems caused by product itself rather than human error within three years warranty period since the date of dispatching by the customer.


(2). Our company repairs the products, but will collect the basic costs of the spare parts after the warranty period, but service is free always.



FAQ



Q :How to provide after sales service?
A:If customers need our engineers on site service, the company only need pay the ticket accommodation to our engineers, service is for free.
If Products still can't use after our engineers repair, we will produce a new test chamber (same as the old one) to our customers with no charge.
You can contact our local service center in overseas market to get service and product.



Q :Can we come to your factory to study and train?
A:Welcome to our factory for study and training, we provide this service free of charge.



Q :Can you send engineers to our company?
A:Yes, sure. We will communicate in advance to facilitate the bringing of tools and components



Q :Can I install and debug calibration on site?
A :Yes, we can send technicians and engineers to the customer site for installation, commissioning and calibration.



Q :What is the packaging?
A :Standard export wooden box packaging, solid and firm.



Q :How do you calibrate the equipment?
A :We have our own calibration and third-party calibration such as ISO17025



Q: Is there a door to door service?
A :Yes, there is door to door service. We will arrange a one-stop service.



Q :What are the payment methods?
A Payment methods are T/T, Paypal, L/C, VISA
