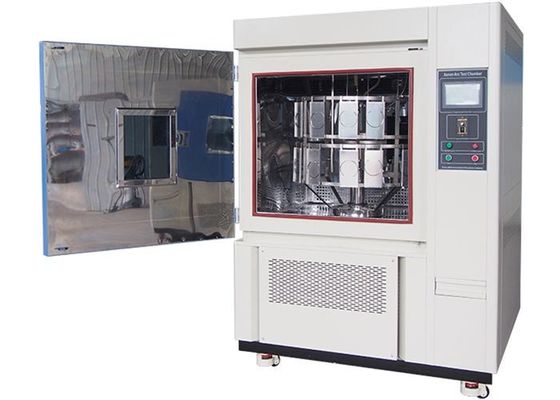

Weather Resistant Xenon Test Chamber Custom Made For Environmental Aging Test

Weather Resistant Xenon Test Chamber Custom Made For Environmental Aging Test

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE,RoHS,ISO17025
Model Number: XL-750

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: USD6800 ~ USD19800 / SET
Packaging Details: Wooden cases standard export package
Delivery Time: 18 days ( check if have stock)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 360 sets / quarter
Get Best Price Contact Now

Detail Information

Certificate: CE,RoHS,ISO17025 Irradiance Range: 100~1200 W/㎡
Temperature Range: Ambient ~100℃±2°C BPT Temperature: BPT +35 To +120 ℃
Warranty: 3 Years,Lifelong Follow-up Services Relative Humidity Range: 50~98% R.H±5% RH
High Light:

xenon arc weatherometer

,

accelerated weathering chamber

Product Description

Weather Resistant Xenon Test Chamber Custom Made For Environmental Aging Test

Weather Resistant Xenon Test Chamber For Environmental Aging Test,Weather Testing Equipment

Standard of ASTM G155 Xenon Test Chamber

●ISO 105-B02/B04/B06

●ISO4892-2

● ISO11341

●AATCC TM16

●TM169

●ASTM G155-1/155-4

●JIS L0843

●SAEJ1960/1885

●JASOM346

●IEC61215

● IEC62688

Advantage of ASTM G155 Xenon Test Chamber

●custom-made

●SUS 304 stainless-steel with thickness 2.5 mm

●Easy to operate,Multi-language to choose

Add compressor

Water filtration system

Description of ASTM G155 Xenon Test Chamber



Weather Resistant Xenon Test Chamber For Environmental Aging Test,Weather Testing Equipment  is a comprehensive climate testing machine, can do climatic aging test and the lightfastness test of polymer materials which exposed at simulated sunlight.Xenon aging test chamber simulates the light, temperature, rainfall, condensing, humidity to test the materials; xenon aging test chamber can be used for choosing new materials, improving existing materials, or assessment of change in material composition.

Products Parameters of ASTM G155 Xenon Test Chamber



Name Weather Resistant Xenon Test Chamber For Environmental Aging Test
Model XL-750
Internal dimensions D*W*H 950*950*850 mm
Overall dimensions D*W*H 1300*1420*1800 mm
Specimen Capacity 42pcs
Specimen holder size 95*200mm
Irradiation Source 1 piece of 6500 W water-cooled xenon lamp with inner quartz and outer borosilicate filter
Irradiance Range 100~1200 W/㎡
Bandwidth Measurement 280nm~800nm
Chamber Temperature Range Ambient ~100℃±2°C
Black Panel Temperature BPT 35 ~85℃±2°C
Relative Humidity Range 50~98% R.H±5% RH
Water Spray cycle 1~9999H59M, adjustable
Controller programmable color display touch screen controller, PC Link, R-232 interface
Radiometer Tolerance: ±5%
Heating system Nichrome heater
Cooling system Mechanical compression refrigeration system
Refrigerating unit French TECUMSEH compressor
Humidification system External isolation, stainless steel surface evaporation humidifier
Air circulation Centrifugal wind fan
Water supply system Automatic water supply; Water purification system
Safety device

Humidifier dry-combustion protection; over-temperature protection;

over-current protection; Refrigerant high-pressure protection; Water shortage protection,

Earth leakage protection;

Interior material SUS304 stainless steel
Exterior material Steel Plate with protective coating
Thermal insulation Polyurethane foam
Observation window Interior lighting , double-layer thermo stability silicone rubber sealing
Power Supply AC380V 50HZ
Standard ISO 105-B02/B04/B06, ISO4892-2, ISO11341. AATCC TM16, TM169, ASTM G155-1/155-4, JIS L0843, SAEJ1960/1885, JASOM346, PV1303, IEC61215, IEC62688



Design and Construction of ASTM G155 Xenon Test Chamber



Test Area and Sample Holder

Test area is made of stainless-steel.
Flat type workroom
A shelf for placing test specimens



Viewing Window

Large viewing window

Can observe samples during testing



Control Panel
Programmable color display touch screen controller, PC Link, R-232 interface
Program: 100 groups in 999 sections



Irradiation Source - Xenon Arc Lamp

Irradiation Source with 1 piece of 1500w air-cooled xenon lamp with inner quartz and outer borosilicate filter

Average Lamp Life is 1600hours.

Weather Resistant Xenon Test Chamber Custom Made For Environmental Aging Test 0



Feature



 Inner chamber and exterior chamber material: SUS304 stainless steel.
Heating: Electrical heater with rapid temperature rise and temperature distribution
PC,USB,APP, R-232 communication interface
Power leakage circuit breaker control circuit, overload short circuit alarm, over-temperature alarm water shortage protection.

Packages

Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.



Service



Provide test solution

If you are end user, you have some test samples need environmental testing, you are not clear the tests, please contact us to get test solution. Will response

within 10 hours after got your requests.

If you are trading dealer, you got request from your customers, please let us know, our team will response you to send test solution for you.



Send specification and quotation

If you are interested in some models, you want to get specifications and quote, don’t hesitate to contact our elite team to get brochure and best price.

Will offer you one-stop service including machine, transportation, and installation, calibration, and spare parts…et



Warranty & After Sales Service

3 Years Warranty, Lifelong Follow-up Services. We have a professional after-sales team, if you have any questions during operation, we will supply solutions to you with 24 hours.



RFQ

Q:Do you have an agent?
A:Currently we have agents in Europe, Asia, North America, South Africa, and can provide sales and technical services.



Q:Can we come to your factory to study and train?
A:Welcome to our factory for study and training, we provide this service free of charge.



Q:Can you send engineers to our company?
A:Yes, sure. We will communicate in advance to facilitate the bringing of tools and components



Q:Can I install and debug calibration on site?
A:Yes, we can send technicians and engineers to the customer site for installation, commissioning and calibration.



Q:What are the modes of transportation?
A:Air, sea, rail, multimodal transport.



Q:What is the packaging?
A:Standard export wooden box packaging, solid and firm.



Q:How do you calibrate the equipment?
A:We have our own calibration and third-party calibration such as ISO17025



Q:Is there a door to door service?
A:Yes, there is door to door service. We will arrange a one-stop service.



Q:What are the payment methods?
A:Payment methods are T/T, Paypal, L/C, VISA
