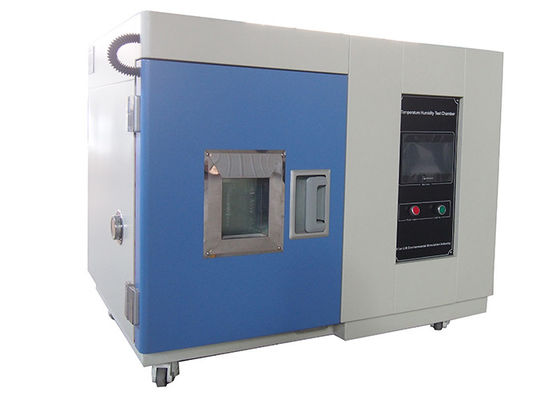

SUS304 Benchtop Environmental Chamber Mini Test Chamber 36 Months Warranty
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | RoHS,CE |
| Model Number: | TH-50 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 3-14 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 180 sets / quarter |
|
Detail Information |
|||
| Low Type: | -20℃/-40℃/70℃ | Temperature Range: | -40℃/-70℃~+150℃ |
|---|---|---|---|
| Interior Material: | SUS304 Stainless Steel(2.5mm) | Warranty: | 36 Monthes |
| Humidity Range: | 20%~98% | Power Supply: | AC220V 50HZ |
| High Light: | small environmental chamber,portable environmental chamber |
||
Product Description
China LIB Temperature Cycling Humidity Chamber Benchtop Mini Test Chamber
Advantage of Temperature Cycling Humidity Chamber
▶ 50L&80L type:space saved in the laboratory.
▶ Complete functioning:Meet high and low temperature testing, humidity testing, calibration, storage conditions.
▶ Benchtop design: Place it on your personal desk and observe samples at any time.
▶ Reasonable price: Most economical and affordable choice
China LIB Temperature Cycling Humidity Chamber Benchtop Mini Test Chamber is designed to address environmental temperature and humidity requirements commonly found in industries such as battery, consumer goods, automotive, cable and more.Chambers are customized to meet specific testing applications.
Temperature and Humidity Test Chambers provides an economical and space-saving solution for a variety of testing requirements. It can simulate different climatic conditions, such as heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, which defines the performance of material
| Name | LIB Temperature Cycling Humidity Chamber Benchtop Mini Test Chamber |
| Model | TH-50 |
| Internal dimension (mm) | 320*350*450 |
| Overall dimension (mm) | 800*1050*950 |
| Temperature range | -20℃ ～+150 ℃ |
| Low type | Ⅰ: -40℃ Ⅱ:-70℃ |
| Humidity range | 20% ~ 98% RH |
| Temperature fluctuations | ± 0.5 ℃ |
| Temperature deviation | ± 2.0 ℃ |
| Humidity deviation | ± 2.5% RH |
| Heating rate | 3 ℃ / min |
| Cooling rate | 1 ℃ / min |
| Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class |
| Temperature Resolution | ± 0.001 ℃ |
| Humidity sensor | Dry and wet bulb sensor |
| Power Supply | AC220V 50HZ |
| Environmental conditional | 5℃～+40 ℃ ≤85% RH |
|
Test Area ▶ Material of the test cabinet is high quality SUS304 stainless steel. |
Build-in Water Tank ▶ The water stored in the built-in water tank meets the needs of the test. When there is a low water level, it will alarm to indicate that water needs to be added. At this time, it is necessary to add enough water till to the high water level. |
| Controller ▶ Programmable color touch screen type 120 programs, ▶ 99 steps perprogram ▶ RS232 for PC link ▶ More option function:Multi-language display, PC link,USB, App |
Cable hole ▶ Internal diameters 50mm, ▶ 125mm or custom; Rubber sealing; ▶ Stainless steel cover; ▶ Supply power to workroom's specimen, to better finish testing Beautiful |
● GB10589-89 low-temperature testing condition
● GB10592-89 high-low-temperature testing condition
● GB/T10586-89 humidity testing condition
● GB/T2423.1-2001 low-temperature testing condition
● GB/T2423.2-2001 high-temperature testing condition
● GB/T2423.3-93 humidity testing condition
● GB/T2423.22-2001 temperature testing method
● IEC60068-2-1.1990 low-temperature testing method
● IEC60068-2-2.1974 high-temperature testing method
● GJB150.3 high-temperature test
● GIB150.4 low-temperture test
● GJB150.9 humidity test
3 Years Warranty, Lifelong Follow-up Services.
We have a professional after-sales team, if you have any questions during operation, we will supply solutions to you with 24 hours.
Wooden cases standard export package
1. Price terms: EXW, FOB,CIF Shanghai or Shenzhen.
2. Payment terms: L/C. Western Union. Paypal. T/T,
3. Sample lead time: 3-8 days
4. Mass production time: 10-15 days depending on the order qty
5. Delivery method time: By air, by sea or combined transportation,
Door to door service with Express: Fedex, DHL, UPS, EMS
Q :How to provide after sales service?
A:If customers need our engineers on site service, the company only need pay the ticket accommodation to our engineers, service is for free.
If Products still can't use after our engineers repair, we will produce a new test chamber (same as the old one) to our customers with no charge.
You can contact our local service center in overseas market to get service and product.
Q: Do you have an agent?
A: Currently we have agents in Europe, Asia, North America, South Africa, and can provide sales and technical services.
Q: Can we come to your factory to study and train?
A: Welcome to our factory for study and training, we provide this service free of charge.
Q :How do you calibrate the equipment?
A We have our own calibration and third-party calibration such as ISO17025
Q: Is there a door to door service?
A :Yes, there is door to door service. We will arrange a one-stop service.
Q :What are the payment methods?
A :Payment methods are T/T, Paypal, L/C, VISA
Q:How long is the warranty period?
A :Warranty period is 3 years, free service for life
