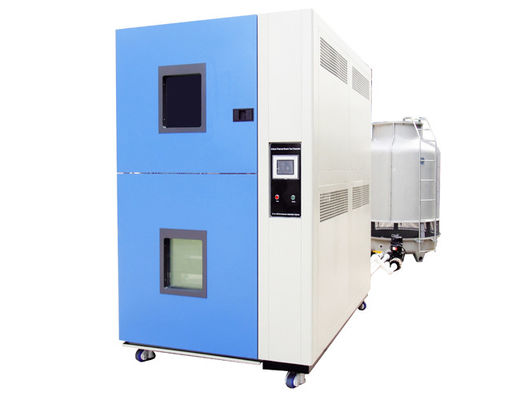

Temperature Thermal Cycling Chamber Automatic Control Air Cool Type

Temperature Thermal Cycling Chamber Automatic Control Air Cool Type

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE RoHS ISO17025
Model Number: TS-340

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: USD6800 ~ USD37000 / SET
Packaging Details: Wooden cases standard export package
Delivery Time: 10 days ( check if have stock)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 360 sets / quarter
Get Best Price Contact Now

Detail Information

Pre-high Temp.: +220℃ Volume: 160L, 210L, 500L, 1000L And More
Power Supply: 380v, 50Hz Cooling Mode: Air-cool Type
Noise: Less Than 65db Usage: Auto Testing Machine,Universal Testing Machine,Impact Testing Machine,Plastic Testing Machine
High Light:

thermal testing equipment


thermal cycling machine

Product Description

Temperature Cycling Automatic Control Environmental Thermal Shock Test Chamber

Advantage of Thermal Shock Test Chamber


1.Upper limit preheat temperature:+220℃

2.Lower limit pre-cool temperature:-75℃

3.Different size chamber, from 100L, 210L, 500L to 1000l, and more
4.Ultralow pre-cool temperature

5. Ultrahigh pre-heat temperature
6.High stability of cooling system
7. Data collection and download to USB
8.Popular and factory price
9.3-Year warranty
10.Quick response within 24 hours

Description of Thermal Shock Test Chamber


Automatic Control Environmental Thermal Shock Test Chamber provide reliability test, product screening test of electronic components' safety performance test. At the same time, it can improve the reliability of products and product quality control.

Products Parameters of Thermal Shock Test Chamber


Name Automatic Control Environmental Thermal Shock Test Chamber
Model TS-340
Inner dimensions of test room (mm) 450*450*360
Volume of test room (mm) 72L
Load of test room 30kg
Overall dimensions(mm) 1710*1020*1845

Pre-heat room


Upper limit preheat temperature +220℃
  Heating time Ambient temperature to ~ + 200℃, within in 30 minutes.


Pre-cool room

Lower limit pre-cool temperature -75℃
  Cooling time Ambient temperature to ~ -70℃, within in 30 minutes
Test room High temperature exposure range Ambient temperature +20 to +200°C
  Low temperature exposure range –65 to -5°C
Recovery time Within 15 minutes
Temperature fluctuation ≤±0.5℃
Temperature deviation ≤±3 ℃
Controller Programmable color LCD touch screen controller
Cooling system Mechanical compression refrigeration system
Refrigerating unit French TECUMSEH compressor
Refrigerant R404A, R23
Air circulation Centrifugal wind fan
Exterior material Steel Plate with protective coating
Interior material SUS304 stainless steel
Power Supply 380V 50HZ
Environmental conditional 5℃~+40 ℃ ≤85% R


Design and Construction of Thermal Shock Test Chamber

Temperature Thermal Cycling Chamber Automatic Control Air Cool Type 0

1.Test Area

Test area is made of stainless-steel.

Elevator type

Basket displacement time less than 15 seconds

Temperature resetting time less than 15 minutes

2 pieces of adjustable and removable shelves

Test hole, sealed with silicone screw plug

2.Control Panel

PLC controller

Programmable color display touch screen controller.

Programs reach to 999 groups and 999 sections

RS-232 /RS-485 interface, PC Link, LAN network

3.Cable hole
Located at the top of the workroom
Rubber sealing
Stainless steel cover

4.Air compressor
Moving mechanism


Key Features

*Smooth sample elevator transfer between cold chamber to hot chambers

*Temperature recovery time less than 15 minutes

*Programmable color LCD touch screen controller

*Mechanical compression refrigeration system

*Casters, shelf, and cable port are standard

*Lamp inside of chamber

*Ethernet and USB(option)

*Large viewing window

*Adjustable and removable sample shelves

*Safety protection system

*CE mark, ISO17025 calibration

  • Export Standard Wooden Box
  • Can be used for Sea, Air, Railway, Truck transportation
  • Package size: 4.9 m³, gross weight: 430kg




  • Provide test solution

If you are end user, you have some test samples need environmental testing, you are not clear the tests, please contact us to get test solution. Will response

within 10 hours after got your requests.

If you are trading dealer, you got request from your customers, please let us know, our team will response you to send test solution for you.

If you want to participate in bidding, our company will send you full brochure with best price for you win the tender.


  • Send specification and quotation

If you are interested in some models, you want to get specifications and quote, don’t hesitate to contact our elite team to get brochure and best price.

Will offer you one-stop service including machine, transportation, and installation, calibration, and spare parts…etc


  • To be our agent

We welcome you to be our agent in countries to promote LIB test chambers to get win-win.Agent price, service

will support for you.


  • Warranty & After Sales Service

3 Years Warranty, Lifelong Follow-up Services. We have a professional after-sales team, if you have any questions during operation, we will supply solutions to you with 24 hours.
