ASTM G155 Solar Radiation Accelerated Xenon Test Chamber

ASTM G155 Solar Radiation Accelerated Xenon Test Chamber

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE,RoHS,ISO17025
Model Number: XL-750

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden cases standard export package
Delivery Time: 18 days ( check if have stock)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 120 sets / quarter
Get Best Price Contact Now

Detail Information

Name: Xenon Arc Lamp Test Device Temperature Range: Ambient ~100℃±2°C
BPT Temperature: BPT +35 To +120 ℃ Bandwidth Measurement: 280nm~800nm
Certificate: CE,RoHS,ISO17025 Specimen Capacity: 42pcs
High Light:

Accelerated Xenon Test Chamber


Solar Radiation Xenon Test Chamber


ASTM G155 Xenon Test Chamber

Product Description

ASTM G155 Solar Radiation Accelerated Weathering Xenon Arc Lamp Test Device

Description of Weathering Xenon Arc Lamp Test Device

ASTM G155 Solar Radiation Accelerated Weathering Xenon Arc Lamp Test Device reproduces the damage caused by full-spectrum sunlight and rain. In a few days or weeks, the xenon weathering chamber can reproduce the damage that occurs over months or years outdoors.


Accelerated Weathering Xenon Arc Lamp Test Device is a full-featured weathering, lightfastness and photostability chamber at a breakthrough price. It provides precise control of critical test parameters including spectrum, irradiance, relative humidity, chamber temperature and black panel/black standard temperature.

Products Parameters of Weathering Xenon Arc Lamp Test Device



ASTM G155 Solar Radiation Accelerated Weathering Xenon Arc Lamp Test Device



Internal dimensions D*W*H

950*950*850 mm

Overall dimensions D*W*H

1300*1420*1800 mm

Specimen Capacity


Specimen holder size


Irradiation Source

1 piece of 6500 W water-cooled xenon lamp with inner quartz and outer borosilicate filter

Irradiance Range

100~1200 W/㎡

Bandwidth Measurement


Chamber Temperature Range

Ambient ~100℃±2°C

Black Panel Temperature

BPT 35 ~85℃±2°C

Relative Humidity Range

50~98% R.H±5% RH

Water Spray cycle

1~9999H59M, adjustable


programmable color display touch screen controller, PC Link, R-232 interface


Tolerance: ±5%

Heating system

Nichrome heater

Cooling system

Mechanical compression refrigeration system

Refrigerating unit

French TECUMSEH compressor

Humidification system

External isolation, stainless steel surface evaporation humidifier

Air circulation

Centrifugal wind fan

Water supply system

Automatic water supply; Water purification system

Safety device

Humidifier dry-combustion protection; over-temperature protection;

over-current protection; Refrigerant high-pressure protection; Water shortage protection,

Earth leakage protection;

Interior material

SUS304 stainless steel

Exterior material

Steel Plate with protective coating

Thermal insulation

Polyurethane foam

Observation window

Interior lighting , double-layer thermo stability silicone rubber sealing

Power Supply

AC380V 50HZ


Key Features of Weathering Xenon Arc Lamp Test Device

Full Spectrum Xenon Lamps

Xenon arc lamps give the best reproduction of full spectrum natural sunlight. LIB xenon lamps are air-cooled or water-cooled, which makes them more economical, highly efficient and very low maintenance. Standard lamps last for 1600 hours and the xl-750 uses one lamp per machine. Enhanced lamps last for 1600 hours at normal irradiance and 1000 hours at high irradiance.


Temperature Monitoring & Control

Control of temperature is important because it influences the rate of degradation. Specimen exposure temperature is precisely controlled in the LIB xl-750 tester using black panel and chamber air temperature sensors. The black panel temperature can be set at any point between 35ºC and 85ºC, depending upon whether the black panel is insulated or uninsulated, irradiance level, filter type, lamp age, chamber air temperature and ambient room temperature.


Humidity Control

Relative humidity (RH) control is standard in the LIB xl-750 tester. It allows the user to simultaneously control and display RH, black panel temperature, and chamber air temperature. Note that purified water is required for proper operation of the RH system in the LIB xl-750.


Optional Water Spray

Outdoor moisture attack is simulated via an optional pure water spray in the Sunshine xenon Weatherometer A spray nozzle located in the top of the chamber can be programmed to operate during either the dark or light cycle. Note that purified water is required for proper operation of the water spray and RH features in the LIB xl-750.

Design and Construction of Weathering Xenon Arc Lamp Test Device
ASTM G155 Solar Radiation Accelerated Xenon Test Chamber 0

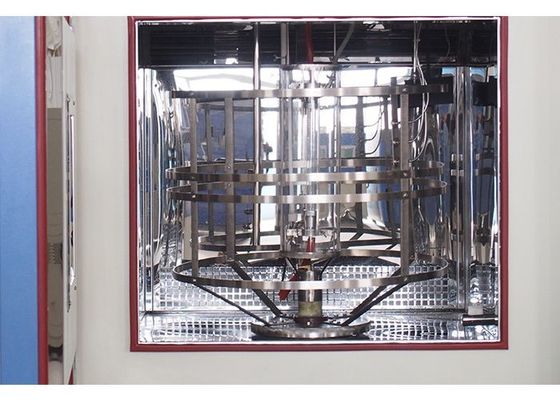

Rotating Specimen Holder

*The picture sample is rubber
*Inside there is a rotating specimen holder, which rotates around the xenon lamp,so that the irradiance received by the specimen is relatively uniform during the test. Total can mount 42 pieces of specimen.

Viewing Window
Double layer insulating glass 8cm thickness, made of tempered glass.
The conductive film is located on the interior glass to prevent window frosting, built-in LED light for the work room lighting ;can clearly observe samples.
The light control button is located below the controller.
ASTM G155 Solar Radiation Accelerated Xenon Test Chamber 1

PID programmable color touch screen controller, network connection computer.
Can edit 100 programs 20 segment.
LIB also can preset program into the controller based on user testing requirements.
The set system language is English for standard.


The picture is customized for 4 radiometers
UV Irradiance Radiometer is available for xenon test chamber.
The radiometer is a photoelectric sensor with fast response, reliable performance and high accuracy.





ASTM C1442

Standard Practice for Conducting Tests on Sealants Using Artificial Weathering Apparatus

ASTM D2565

Standard Practice for Xeno-Arc Exposure of Plastics Intended for Outdoor Applications

ASTM D3424

Standard Test Methods for Evaluating the Relative Lightfastness and Weatherability of Printed Matter

ASTM D4303

Standard Test Methods for Lightfastness of Pigments Used in Artists' Paints




Provide test solution

If you are end user, you have some test samples need environmental testing, you are not clear the tests, please contact us to get test solution. Will response

within 10 hours after got your requests.

If you are trading dealer, you got request from your customers, please let us know, our team will response you to send test solution for you.


Send specification and quotation

If you are interested in some models, you want to get specifications and quote, don’t hesitate to contact our elite team to get brochure and best price.

Will offer you one-stop service including machine, transportation, and installation, calibration, and spare parts…et


Warranty & After Sales Service

3 Years Warranty, Lifelong Follow-up Services. We have a professional after-sales team, if you have any questions during operation, we will supply solutions to you with 24 hours.



1.Are you manufacturer or trade company?
LIB industry is manufacturer &trade company.


2.What if I need to train my team?
LIB training is divided into 2 parts.
A:Your team can came to our factory for installation, operation and maintenance training
B: Our engineers goes to your company to conduct market training


3.Does the equipment have test report, specification, certificate?
this is the standard configuration of equipment.It will be sent to you together with the equipment.


4.After the 3 year warranty,do you still provide after-sales service?
LIB test chamber are maintained for life,After three years, you only pay for express delivery.

ASTM G155 Solar Radiation Accelerated Xenon Test Chamber 2
