2 Holes 3.3L/Min 17r/Min Splash Water Test Chamber

2 Holes 3.3L/Min 17r/Min Splash Water Test Chamber

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE,ROHS
Model Number: R-1000JIS

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden Cases Standard Export Package
Delivery Time: 5-14 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 120 Set/Quarter
Get Best Price Contact Now

Detail Information

Standard: JIS D 0203 Internal Dimensions (mm): 1000*1000*1000 D*W*H
Specimen To Nozzle: Approx.400mm R1 Water Flow Rate: 1.9L/min.
R2 Water Flow Rate: 3.3L/min. S1 Water Flow Rate: 24.5L/min
S2 Water Flow Rate: 39.2L/min
High Light:

3.3L/Min Splash Water Test Chamber


17r/Min Splash Water Test Chamber


1000L Splash Water Test Chamber

Product Description

JIS D 0203 Rain Spray Equipment

► Description for JIS D 0203 Rain Spray Equipment

JIS D 0203 sain spray equipment is manufactured in accordance with the test requirements of R1, R2, S1 and S2 in JIS D0203 test methods for humidity and water resistance of automobile parts. The JIS D 0203 Rain test chamber suitable for the wet and water resistance test methods of various auto parts.


——JIS D 0203: Method of moisture, rain and spray test for automobile parts



Main Parameter for JIS D 0203 Rain Spray Equipment



JIS D 0203 Rain Spray Equipment



Internal Dimensions (mm)

1000*1000*1000 D*W*H

Overall Dimensions (mm)

1100*1460*1900 D*W*H

Interior Volume (L)


Distance from Specimen to Nozzle


Rain Nozzle

2 holes

Rain Nozzle Hole


R1 Water Flow Rate


R2 Water Flow Rate


Spray Nozzle

40 holes

Spray Nozzle Hole


S1 Water Flow Rate


S2 Water Flow Rate


Water Pressure at Nozzle

0.03 ~ 0.30MPA

Turntable Rotation Speed


Water Pressure Control

Flow meter


Programmable color LCD touch screen controller


Ethernet connection, PC Link, USB

Build-in Water Tank(mm)


View Window Size(mm)


Water supply system

Water tank, booster pump, Automatic water supply, Water purification system

Safety Device

Over-temperature Protection; Over-current Protection;

Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection



Body Structure

1.The shell of the JIS D 0203 resistance test equipment is made of domestic high-quality steel plate, and the surface is sprayed with baking paint, beautiful and durable.

2.The inner test room of the JISD0203 IP waterproof test machine and the turntable are all made of SUS304# stainless steel plate to ensure that they will not rust for a long time.

3.Flow rate, pressure through the pressure gauge of the panel and the flow rate are visually displayed, and the pressure rate can be adjusted manually.

4.Test sample power socket is provided in the test room



► Main Details for JIS D 0203 Rain Spray Equipment


2 Holes 3.3L/Min 17r/Min Splash Water Test Chamber 0

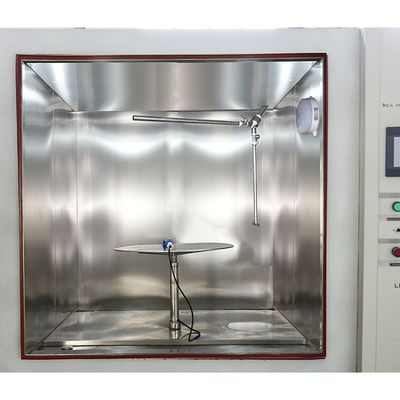

1. Workroom

The internal material is 304 stainless steel.
40 spray nozzles and 2 rain nozzles for water resistance test

2. Controller
one-button start, programmable controller, multiple language options


2 Holes 3.3L/Min 17r/Min Splash Water Test Chamber 1

3. Servo Mechanism
Control the speed of the spray pipe, automatic operation


4. Turntable
The height of the turntable is adjustable, equipped with a built-in power supply, and the load-bearing capacity is 50kg



1.How to provide after sales service?

——If customers need our engineers on site service, the company only need pay the ticket accommodation to our engineers, service is for free.

——If Products still can't use after our engineers repair, we will produce a new test chamber (same as the old one) to our customers with no charge.

You can contact our local service center in overseas market to get service and product.


2.Do you have an agent?

——Currently we have agents in Europe, Asia, North America, South Africa, and can provide sales and technical services.


3.Can we come to your factory to study and train?

AWelcome to our factory for study and training, we provide this service free of charge.


4.Can you send engineers to our company?

——Yes, sure. We will communicate in advance to facilitate the bringing of tools and components.
