Lab -20 Degree Temperature Environmental Simulation Chamber

Lab -20 Degree Temperature Environmental Simulation Chamber

Product Details:

Place of Origin: China
Brand Name: LIB
Certification: CE,RoHS
Model Number: TH-1500

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden Box standard export package
Delivery Time: 3-14 days
Payment Terms: L/C, D/A, D/P, T/T, paypal,MoneyGram,Western Union,
Supply Ability: 180 sets / quarter
Get Best Price Contact Now

Detail Information

Low Type: Ⅰ: -40℃ Ⅱ:-70℃ Ⅲ: -86℃ Humidity Range: 10% - 98% RH
Temperature Range: -20℃ ~+150 ℃ Exterior Material: A3 Steel Plate
Internal Dimension: Customizable Heating Rate: 3 ℃ / Min
High Light:

-20 Degree Environmental Simulation Chamber


-20 Degree temp humidity chamber


150C Environmental Simulation Chamber

Product Description

Lab -20 Degree Temperature Environmental Simulation Chamber

Description of Environmental Simulation Chamber

Temperature humidity climatic simulation chamber use in labs for controlling of temperatures and provide optimum support for storing of samples. Based on advanced technology support, hot and cold chamber is suitable for use in areas requiring rapid changes in temperature.


Cold temperature climatic simulation chamber eatures include use of quality corrosion-resistant and easily maintainable stainless steel working chamber and housing support, allows maintenance of precise and homogeneous temperatures, temperature values of storage chambers measured as per defined industry standards among others.


Main Technical Parameter of Environmental Simulation Chamber



Lab -20 Degree Temperature Environmental Simulation Chamber



Internal Dimension (mm)


Overall Dimension (mm)


Temperature Range (℃)

A: -20℃ ~+150 ℃ B:-40℃ ~+150 ℃ C:-70℃ ~+150 ℃

Humidity Range (R.H)

20% ~ 98% RH

Temperature fluctuations

± 0.5 ℃

Temperature deviation

± 2.0 ℃

Humidity Deviation

± 2.5% RH

Heating Rate

3 ℃ / min

Cooling Rate

1 ℃ / min

Interior Volume

500 liters


Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB

Cooling System

Mechanical compression refrigeration system

Interior Material

SUS304 stainless steel

Maximum Noise

65 dBA

Power Supply



Design Detail of Environmental Simulation Chamber

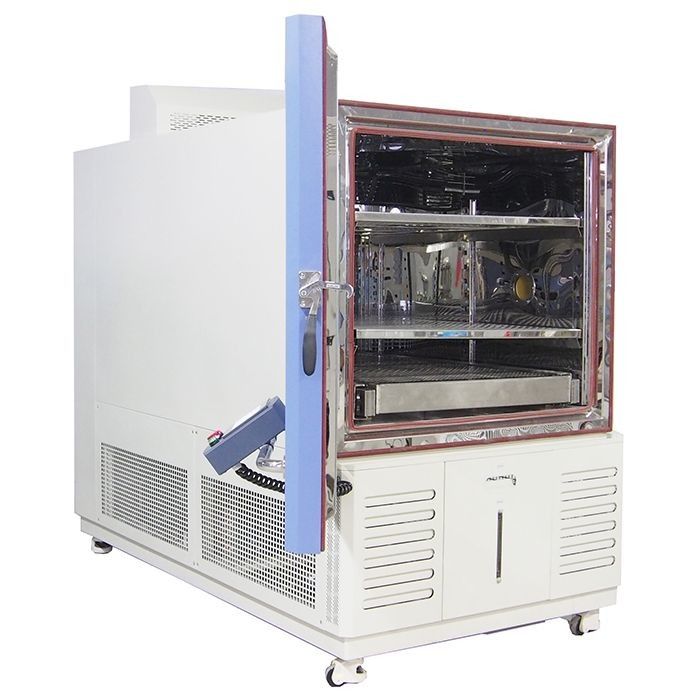

Lab -20 Degree Temperature Environmental Simulation Chamber 0


The internal material is 304 stainless steel, The test room is specially customized to meet the requirements of customers for testing metal detectors

Controller System

The PID controller as the main control unit to command, The control screen is specially customized and designed on the door according to the equipment

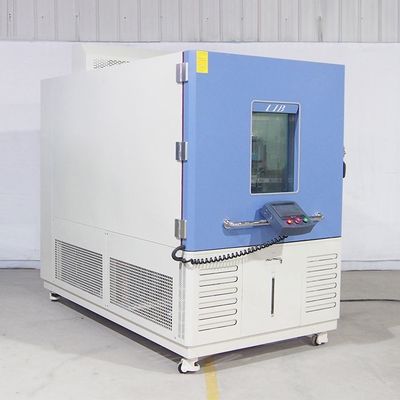

Lab -20 Degree Temperature Environmental Simulation Chamber 1

Automatic water inlet system

Ensure continuous water in the water tank and ensure the normal operation of the studio

Refrigerating System

Bipolar linkage refrigeration system, so that the temperature of the studio is more accurate


The key Features of Environmental Simulation Chamber

Humidity climatic simulation chamber equipped user-friendly LCD screen

Variety of options for the graphic display of process parameters

Electronically controlled humidification and dehumidification system with capacitive humidity sensor and vapor pressure humidification

Integrated water storage tank and heated viewing window with interior lighting

Programmable condensation protection for test material

230 V power socket on the right-side operating panel

Ethernet interface


Optional Equipment of Environmental Simulation Chamber

Remote control over an Ethernet Link.

Windows and interior lights in one or more compartments.

Thermal humidity climatic simulation chamber optional access port size

Casters, four swivel type, with locks.

Shelf pilasters and wire-type stainless steel shelves in each bay.

Shelf pilasters and basket-type stainless steel shelves.




Q: How to test large samples?
A: The sample holder is adjustable and mobile, we offer solutions and customized services, you just need to tell us the size of your sample.


Q:What free services do you offer?

Consulting services, solutions, video services, free calibration services, parts replacement services


Q :How to provide after sales service?
A:If customers need our engineers on site service, the company only need pay the ticket accommodation to our engineers, service is for free.
If Products still can't use after our engineers repair, we will produce a new test chamber (same as the old one) to our customers with no charge.
You can contact our local service center in overseas market to get service and product.


Q: Can you send engineers to our company?
A :Yes, sure. We will communicate in advance to facilitate the bringing of tools and components


Q :Can I install and debug calibration on site?
A :Yes, we can send technicians and engineers to the customer site for installation, commissioning and calibration.


Q: What are the modes of transportation?
A :Air, sea, rail, multimodal transport.



Other Products


Walk In Environmental Chamber

Benchtop Test Chamber

Xenon Test Chamber

Salt Spray Corrosion Test Chamber

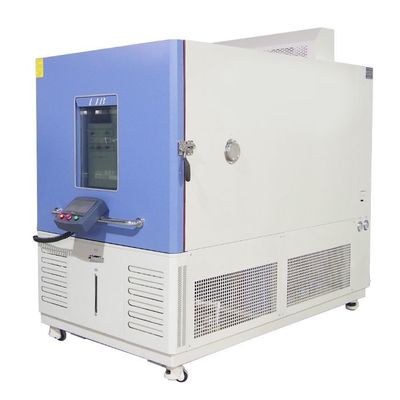

Lab -20 Degree Temperature Environmental Simulation Chamber 2
