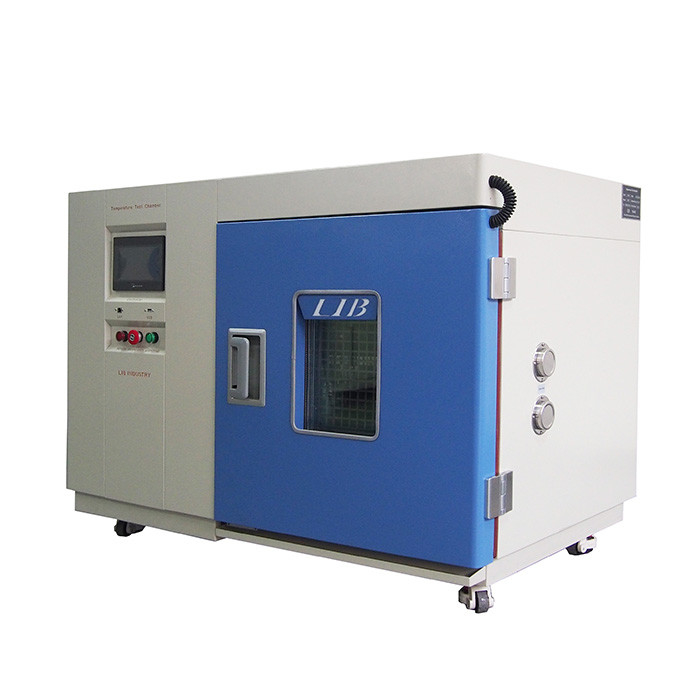

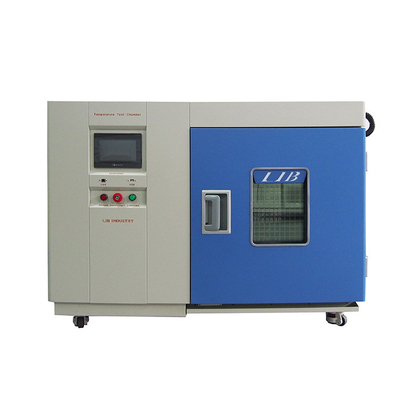

50L Climatic Thermal Humidity Test Chamber With Exterior Steel Plate Protective Coating
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | RoHS,CE |
| Model Number: | TH-50 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 3-14 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 180 sets / quarter |
|
Detail Information |
|||
| Name: | 80L HumiditySmall Heat Chamber | Low Type: | -20℃/-40℃/70℃ |
|---|---|---|---|
| Temperature Range: | -20℃ ～+150 ℃ | Warranty: | 36 Monthes |
| Humidity Range: | 20%~98% | Controller: | Programmable LCD Touch Screen |
| High Light: | Climatic Thermal Test Chamber 50L,Steel Plate Humidity Temperature Chamber,50L Humidity Testing Chamber |
||
Product Description
Small Thermal Chamber simulates a full range of temperature/humidity environments. The compact design of the Thermal test chamber is used to test components and small products. There are two models available in 50L and 80L.
Parameters
| Name | 50L Climatic Small Thermal Chamber | |
| Model | TH-50 | TH-80 |
| Internal dimension (mm) | 320*350*450 | 400*400*500 |
| Overall dimension (mm) | 800*1050*950 | 900×1100×1000 |
| Temperature range | -20℃ ~+150 ℃ | |
| Low type | Ⅰ: -40℃ Ⅱ: -70℃ Ⅲ: -86℃ | |
| Temperature fluctuations | ± 0.5 ℃ | |
| Humidity Range | 10%/20%~95% | |
| Temperature deviation | ± 2.0 ℃ | |
| Heating rate | 3 ℃ / min | |
| Cooling rate | 1 ℃ / min | |
| Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class | |
| Temperature Resolution | ± 0.001 ℃ | |
| Exterior Material | Steel Plate with A protective coating | |
| Interior Material | SUS304 stainless steel | |
| Power Supply | AC220V 50HZ | |
| Environmental conditional | 5℃~+40 ℃ ≤85% RH | |
Details
 |

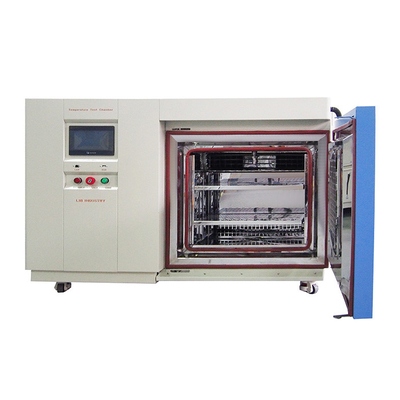

Special Design Small temperature chamber,The direction of the door can be changed to facilitate the customer's connection to other equipment or convenient placement |
|
|
|
| Controller | Link and USB | Test Hole |
Standard Configuration
◆Refrigerant: the use of environmentally friendly refrigerants R404a, R23
◆Heating is heated by heating wire, and actuators are made of solid state relays;
◆Humidification using water evaporation method humidifier,
◆Equipped with water shortage protector, water level automatic controller,
Service Advantages
1. mini thermal chamber,Each device needs to be tested for 72 hours
2. Three-year warranty, local service center
3.7*24 hours one-on-one after-sales service
