98% RH Temperature Humidity Test Machine A3 Steel Plate
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE，RoHS |
| Model Number: | TH-225 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden Box standard export package |
| Delivery Time: | 3-14 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, paypal,MoneyGram, |
| Supply Ability: | 180 sets / quarter |
|
Detail Information |
|||
| Name: | 98% RH Temperature Humidity Test Machine | Low Type: | -20℃/-40℃/-60℃/-70℃/-86℃ |
|---|---|---|---|
| Controller: | PLC,PC Link, R-232 Interface,USB,APP | Humidity Range: | 10% - 98% RH |
| Temperature Range: | -20℃ ～+150 ℃ | Exterior Material: | A3 Steel Plate |
| High Light: | A3 Steel Plate Humidity Test Machine,98% RH Climatic Test Chamber,PLC Humidity Control Chamber |
||
Product Description

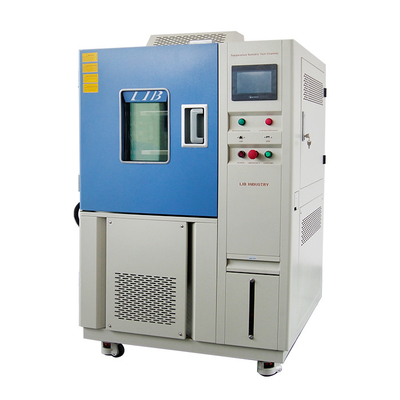

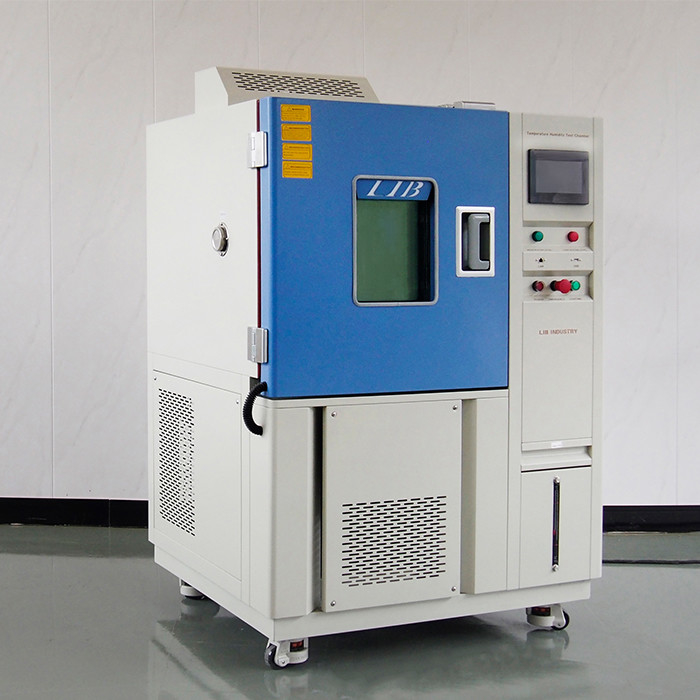

98% RH Temperature Humidity Test Machine
Description
Temperature humidity test machine can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry,resist humidity and resist cold. That can define performance of material.
Main Technical Parameter
|
Name |
98% RH Temperature Humidity Test Machine |
|
Model |
TH-225 |
|
Internal Dimension (mm) |
500*600*750 |
|
Overall Dimension (mm) |
960*1150*1860 |
|
Temperature Range (℃) |
A: -20℃ ～+150 ℃ B:-40℃ ～+150 ℃ C:-70℃ ～+150 ℃ |
|
Humidity Range (R.H) |
20% ~ 98% RH |
|
Temperature fluctuations |
± 0.5 ℃ |
|
Temperature deviation |
± 2.0 ℃ |
|
Humidity Deviation |
± 2.5% RH |
|
Heating Rate |
3 ℃ / min |
|
Cooling Rate |
1 ℃ / min |
|
Interior Volume |
500 liters |
|
Controller |

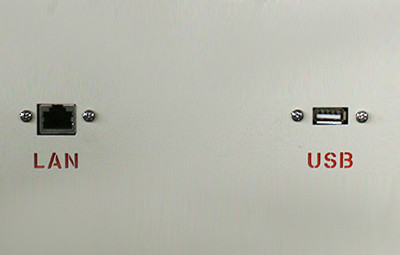

Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB |
|
Cooling System |
Mechanical compression refrigeration system |
|
Interior Material |
SUS304 stainless steel |
|
Maximum Noise |
65 dBA |
|
Power Supply |
380V |
Details
 |
|
|

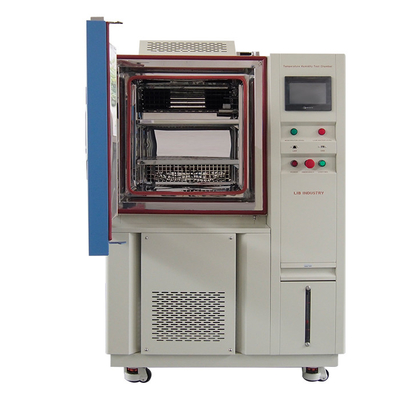

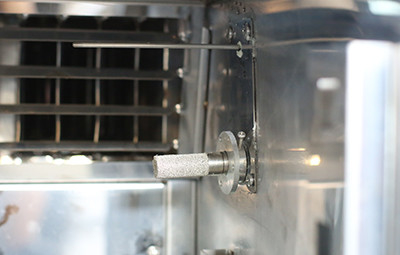

Workroom The internal material is 304 stainless steel, The test room is specially customized to meet the requirements of customers for testing metal detectors |
Controller System The PID controller as the main control unit to command, The control screen is specially customized and designed on the door according to the equipment |
|
|
|
Observation Window The observation window with conductive film and lamp can clearly observe the changes of the sample |
Refrigerating System High temperature aging Chamber, Bipolar linkage refrigeration system, so that the temperature of the studio is more accurat |
|
|
Characteristics
1.temperature humidity environmental machine use the high precision microcomputer touch temperature and humidity controller with high stability of platinum resistance to temperature and wind speed in the circulatory system of temperature and humidity test.
2.control temperature&humidity well-distributed, precisely and steady.
3. Completely independent system separate for testing in high temperature, low temperature and constant temperature&humidity environment.
Features
• Programmable Control System
• Product Air Temperature Display
• Temperature Logging
• Precision Conditioning System
• Double Wall Construction
• Environmentally friendly refrigerant
• Stainless Sheath Heater
• Polyurethane Foam Insulation
• Key Lock Door
• 4 Casters with brake
• temperature humidity climatic machine,3 Year Compressor Warranty
