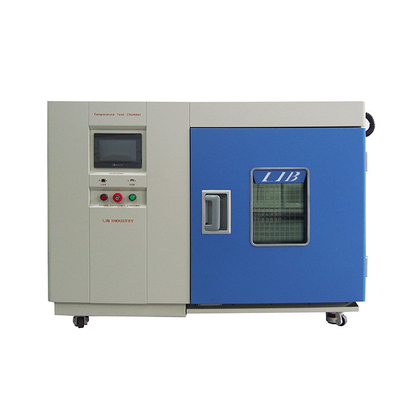

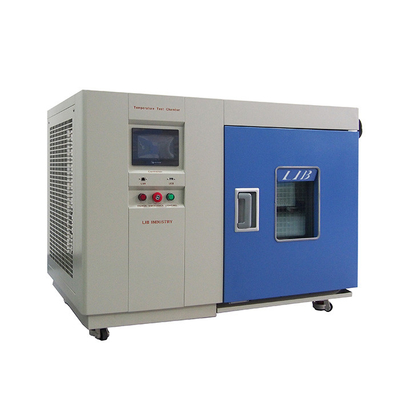

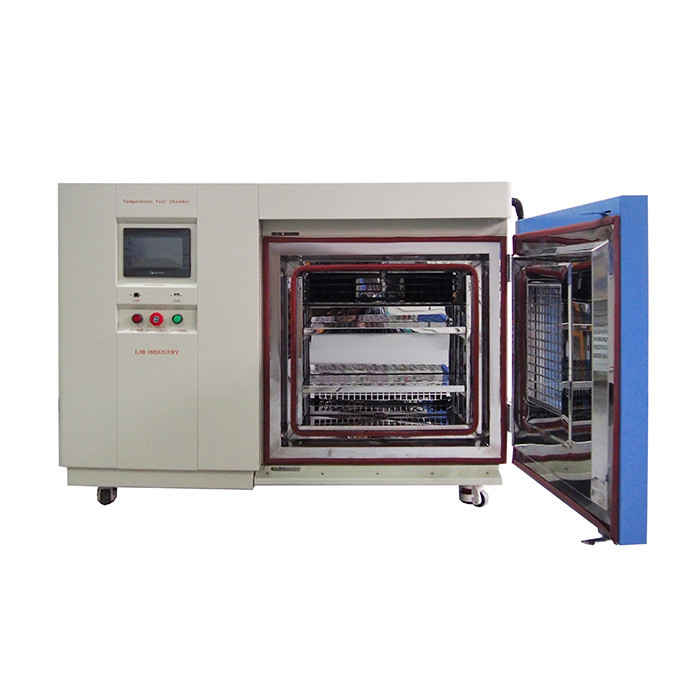

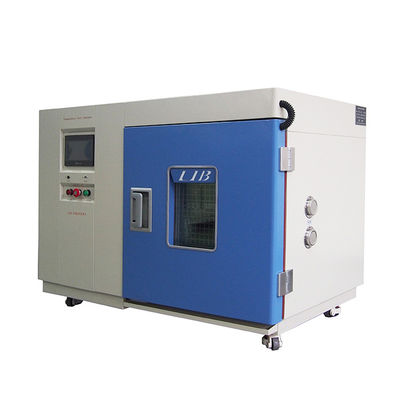

80L Humidity Small Heat Chamber With LCD Touch Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | RoHS,CE |
| Model Number: | TH-50 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 3-14 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 180 sets / quarter |
|
Detail Information |
|||
| Name: | 80L HumiditySmall Heat Chamber | Low Type: | -20℃/-40℃/70℃ |
|---|---|---|---|
| Temperature Range: | -20℃ ～+150 ℃ | Warranty: | 36 Monthes |
| Humidity Range: | 20%~98% | Controller: | Programmable LCD Touch Screen |
| High Light: | Humidity Small Heat Chamber 80L,LCD Small Heat Chamber,Touch Screen Temperature Humidity Test Chamber |
||
Product Description
This series of Small Heat Chamber can provide a simulation environment for users to inspect and detect electronic and electrical components, spare parts or experimental departments in related industries, providing conditions for the accuracy and reliability of test data.
Parameters
| Name | Small Heat Chamber | |
| Model | TH-50 | TH-80 |
| Internal dimension (mm) | 320*350*450 | 400*400*500 |
| Overall dimension (mm) | 800*1050*950 | 900×1100×1000 |
| Temperature range | -20℃ ~+150 ℃ | |
| Low type | Ⅰ: -40℃ Ⅱ: -70℃ Ⅲ: -86℃ | |
| Temperature fluctuations | ± 0.5 ℃ | |
| Humidity Range | 10%/20%~95% | |
| Temperature deviation | ± 2.0 ℃ | |
| Heating rate | 3 ℃ / min | |
| Cooling rate | 1 ℃ / min | |
| Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class | |
| Temperature Resolution | ± 0.001 ℃ | |
| Exterior Material | Steel Plate with A protective coating | |
| Interior Material | SUS304 stainless steel | |
| Power Supply | AC220V 50HZ | |
| Environmental conditional | 5℃~+40 ℃ ≤85% RH | |
Details
 |
|
|
| Controller | Link and USB | Test Hole |
|
|
Peculiarity
1. Heat test chamber,High-texture appearance, the body adopts arc shape, and the surface is treated by anti-static coating,
2. Small test chamber,Rectangular laminated glass viewing window, which can be used for test product observation in the test, and the window is equipped with sweat-proof electric heater device to prevent water vapor condensation droplets.
3. With test holes, it can be connected to the external test power cord or signal line and the upper and lower adjustable tray. The door Double-layer isolation airtight pressing, can effectively isolate the internal temperature leakage
4. The compressor circulation system adopts the original compressor, which can effectively remove the lubricating oil between the condensing tube and the capillary tube and use the environmentally friendly refrigerant (R404A) for the whole series.
5. Small temperature chamber,The built-in mobile pulley is easy to move and place and has a strong positioning screw fixing position.
