304 Stainless Steel Climate Test Chamber PTR Platinum Resistance
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | RoHS,CE |
| Model Number: | TH-50 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 3-14 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 180 sets / quarter |
|
Detail Information |
|||
| Name: | 86℃ 1 ℃ / Min Small Climate Test Chamber | Low Type: | -20℃/-40℃/70℃ |
|---|---|---|---|
| Temperature Range: | -20℃ ～+150 ℃ | Warranty: | 36 Monthes |
| Humidity Range: | 20%~98% | Controller: | Programmable LCD Touch Screen |
| High Light: | SUS304 Climate Test Chamber,PTR Platinum Resistance Climate Test Chamber,Climate Humidity Control Chamber |
||
Product Description

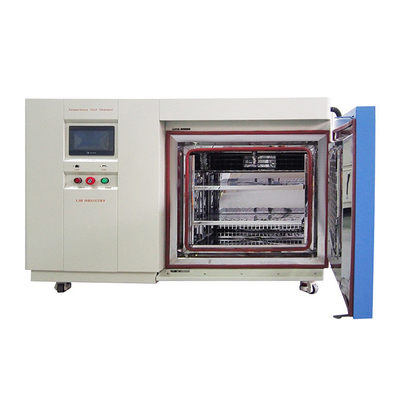

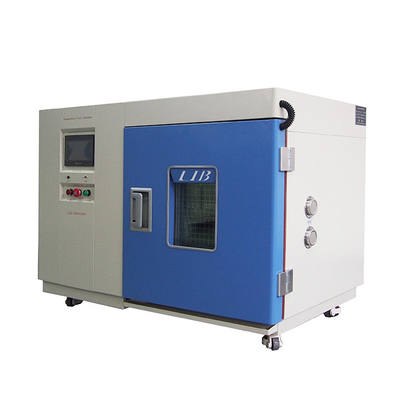

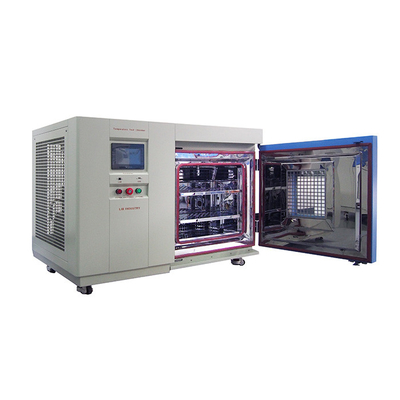

Small Climate Test Chamber,Small size, room space saving, easy installation, affordable price, suitable for small electricians, electronics, machinery and other products, parts, materials and other quality management and reliability testing.
Parameters
| Name | 86℃ 1 ℃ / min Small Climate Test Chamber | |
| Model | TH-50 | TH-80 |
| Internal dimension (mm) | 320*350*450 | 400*400*500 |
| Overall dimension (mm) | 800*1050*950 | 900×1100×1000 |
| Temperature range | -20℃ ~+150 ℃ | |
| Low type | Ⅰ: -40℃ Ⅱ: -70℃ Ⅲ: -86℃ | |
| Temperature fluctuations | ± 0.5 ℃ | |
| Humidity Range | 10%/20%~95% | |
| Temperature deviation | ± 2.0 ℃ | |
| Heating rate | 3 ℃ / min | |
| Cooling rate | 1 ℃ / min | |
| Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class | |
| Temperature Resolution | ± 0.001 ℃ | |
| Exterior Material | Steel Plate with A protective coating | |
| Interior Material | SUS304 stainless steel | |
| Power Supply | AC220V 50HZ | |
| Environmental conditional | 5℃~+40 ℃ ≤85% RH | |
Details
 |

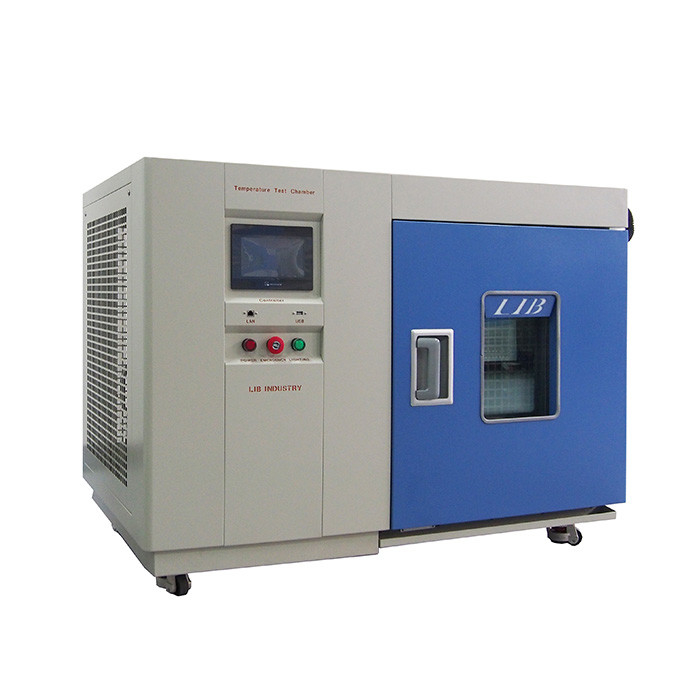

Climate test chamber,The controller can be on the left side for easy customer operation and connection to other device |
|
|
|
| Controller | Link and USB | Test Hole |
Standard Configuration
1. The Small test chamber body is small and exquisite, easy to move, can be placed on the desktop, through the shelf can also be stacked on multiple stacks, make full use of the effective space,
2. Controller, RS-232 computer interface
3. The humidification system line is separated from the control circuit board, which can avoid failure due to water leakage of the humidification pipeline
4. The box insulation adopts ultra-fine glass fiber insulation cotton, which can avoid unnecessary energy loss
5. Climate chamber,The left side of the box is equipped with a test hole with a diameter of 50mm, which can be used for external test power cord or signal cord
